| Basic Information | ||
| Supported CPU | AMD Ryzen™ processor<br> AMD 7th Generation A-series/ Athlon™ processor | |
| Chipset | AMD A320 | |
| BIOS | 1 x 128 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 19.5cm | |
| Memory Specifications | ||
| Type | Dual channel memory architecture | |
| Slots | 2 x DDR4 DIMM | |
| Supported Memory | Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules<br> * Actual support may vary by CPU.<br> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for Extreme Memory Profile (XMP) memory modules | |
| Max. Memory | 32 GB | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16)<br> * Actual support may vary by CPU.<br> (The PCIEX16 slot conforms to PCI Express 3.0 standard.)<br> 2 x PCI Express x1 slots<br> (The PCI Express x1 slots conform to PCI Express 2.0 standard.) | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support)<br> * Actual support may vary by CPU.<br> * Supports only M.2 SATA SSDs when using an AMD Athlon™ 200-series/ 7th Generation <br>A-series or Athlon™ APU. | |
| Graphics | ||
| Max Shared Memory | 2 GB | |
| Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz<br> 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz<br> * The DVI-D port does not support D-Sub connection by adapter.<br> 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz<br> * Support for HDMI 1.4 version. | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| USB (s) | Chipset:<br> 2 x USB 3.1 Gen 1 ports available through the internal USB header<br> 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)<br> CPU:<br> 4 x USB 3.1 Gen 1 ports on the back panel | |
| LAN Port (s) | Realtek® GbE LAN chip (10/100/1000 Mbit) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support)<br> * Actual support may vary by CPU.<br> * Supports only M.2 SATA SSDs when using an AMD Athlon™ 200-series/ 7th Generation <br>A-series or Athlon™ APU.<br> 4 x SATA 6Gb/s connectors<br> Support for RAID 0, RAID 1, and RAID 10<br> * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector. | |
| Audio | Realtek® ALC887 codec<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable <br>the multi-channel audio feature through the audio driver.<br> Support for S/PDIF Out | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 1 x system fan header<br> 1 x M.2 Socket 3 connector<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x S/PDIF Out header<br> 1 x USB 3.1 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x speaker header<br> 1 x Clear CMOS jumper<br> 1 x chassis intrusion header | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years | |

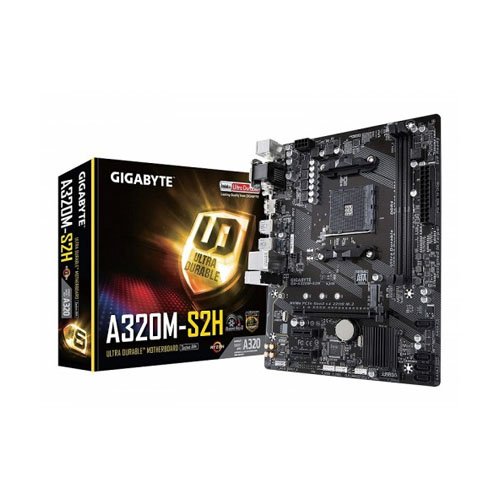

The Gigabyte GA-A320M-S2H AMD Micro ATX Motherboard is a reliable, budget-friendly platform designed for everyday computing, multimedia, and basic gaming builds. Built around the AMD A320 chipset, this board offers solid performance and compatibility for AMD Ryzen processors, making it a great choice for users who want dependable performance without unnecessary complexity. Its Micro ATX form factor ensures a compact footprint that fits a variety of PC cases while still offering essential expansion and connectivity options for most mainstream builds. At its core, the GA-A320M-S2H supports the latest AMD Ryzen CPUs, delivering responsive performance for daily tasks, content creation, and light gaming. With two DDR4 memory slots, it accommodates up to 32 GB of system memory, enabling smooth multitasking and improved system responsiveness. Whether you’re working with spreadsheets, browsing the web, or running multimedia applications, this board provides the memory capacity needed to keep your system agile. Expansion is straightforward thanks to three PCI Express slots, allowing you to install discrete graphics cards, high-speed networking cards, sound cards, or other PCIe devices. This expandability makes the GA-A320M-S2H versatile enough for upgrades as your computing needs evolve. Integrated audio and networking provide the essentials right out of the box, reducing the need for add-on cards in many cases. Connectivity options include multiple USB ports, SATA connectors for storage drives, and legacy support for systems transitioning from older hardware. Gigabyte’s reputation for durability is evident in the board’s solid build quality, ensuring long-term reliability. In summary, the Gigabyte GA-A320M-S2H is an excellent choice for users seeking a cost-effective motherboard that doesn’t compromise on essential features. Its balance of performance, expandability, and reliability makes it ideal for entry-level to mid-range AMD Ryzen-based systems.
The latest price of Gigabyte GA-A320M-S2H AMD Micro ATX Motherboard in Bangladesh is 5,700৳ You can buy the Gigabyte GA-A320M-S2H AMD Micro ATX Motherboard at best price from our Website or visit any of our showrooms.
