| Basic Information | ||
| Supported CPU | 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors<br> 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / <br>Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors<br> * Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family. | |
| Chipset | Intel B560 Express Chipset | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek Audio codec<br> High Definition Audio<br> 2/4/5.1/7.1-channel | |
| Memory Specifications | ||
| Type | Dual channel memory architecture | |
| Slots | 4 x DDR4 DIMM | |
| Supported Memory | 11th Generation Intel Core i9/i7/i5 processors:<br> Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ <br>4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / <br>4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / <br>3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz<br> memory modules<br> 10th Generation Intel Core i9/i7 processors:<br> Support for DDR4 2933/2666/2400/2133 MHz memory modules<br> 10th Generation Intel Core i5/i3 /Pentium/Celeron processors:<br> Support for DDR4 2666/2400/2133 MHz memory modules<br> 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory<br> Dual channel memory architecture<br> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for Extreme Memory Profile (XMP) memory modules | |
| Max. Memory | 128 GB | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16)<br> * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to <br>install it in the PCIEX16 slot.<br> (The PCIEX16 slot conforms to PCI Express 4.0 standard.)<br> *Supported by 11th Generation processors only.<br> 1 x PCI Express x16 slot, running at x4 (PCIEX4)<br> 1 x PCI Express x1 slot<br> (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.) | |
| M.2 Socket | 2 x M.2 Socket 3 connectors | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support:<br> 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz<br> * Support for HDMI 1.4 version and HDCP 2.3.<br> 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz<br> * Support for DisplayPort 1.2 version, HDCP 2.3 | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz | |
| USB (s) | Chipset:<br> 1 x USB Type-C port on the back panel, with USB 3.2 Gen2 support<br> 1 x USB 3.2 Gen2 Type-A ports (red) on the back panel<br> 3 x USB 3.2 Gen1 ports (2 ports on the back panel, 1 port available through the internal USB header)<br> 2 x USB 2.0/1.1 ports on the back panel<br> Chipset+USB 3.2 Gen 1 Hub:<br> 1 x USB Type-C port with USB 3.2 Gen1 support, available through the internal USB header<br> 2 x USB 3.2 Gen1 ports available through the internal USB header<br> Chipset+ 2 USB 2.0 Hubs:<br> 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) | |
| LAN Port (s) | Realtek2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) | |
| Audio | 6 x audio jacks | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 1 x water cooling CPU fan header<br> 3 x system fan headers<br> 2 x addressable LED strip headers<br> 2 x RGB LED strip headers<br> 6 x SATA 6Gb/s connectors<br> 2 x M.2 Socket 3 connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB Type-C header, with USB 3.2 Gen 1 support<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 2 x Thunderbolt add-in card connectors<br> 1 x serial port header<br> 1 x Clear CMOS jumper<br> 1 x Q-Flash Plus button | |
| Others Information | ||
| Special Features | Support for APP Center<br> @BIOS<br> EasyTune<br> Fast Boot<br> Game Boost<br> ON/OFF Charge<br> RGB Fusion<br> Smart Backup<br> System Information Viewer<br> Support for Q-Flash Plus<br> Support for Q-Flash<br> Support for Xpress Install | |
| Warranty Information | ||
| Manufacturing Warranty | 3 year | |

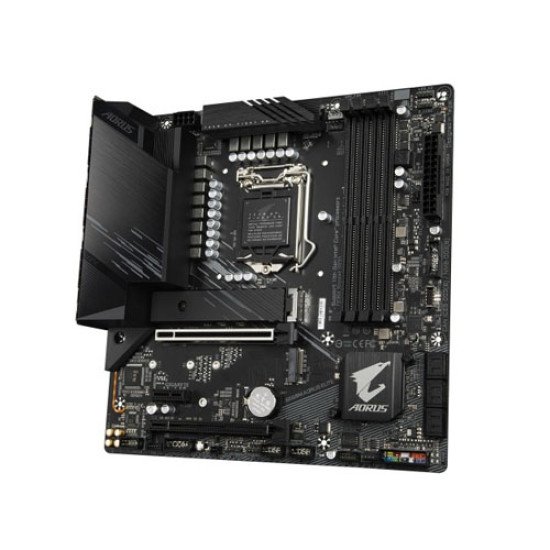

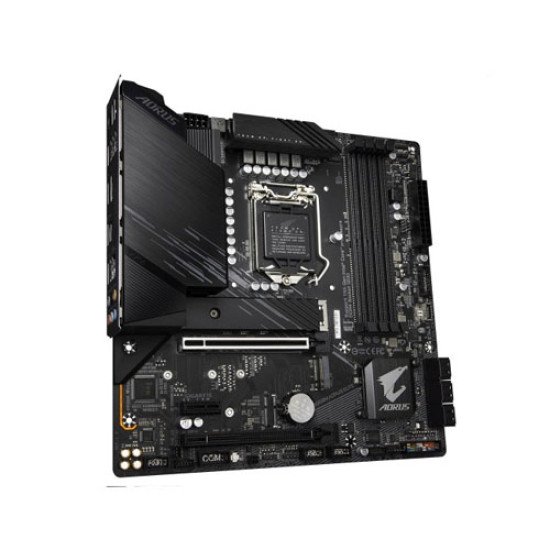

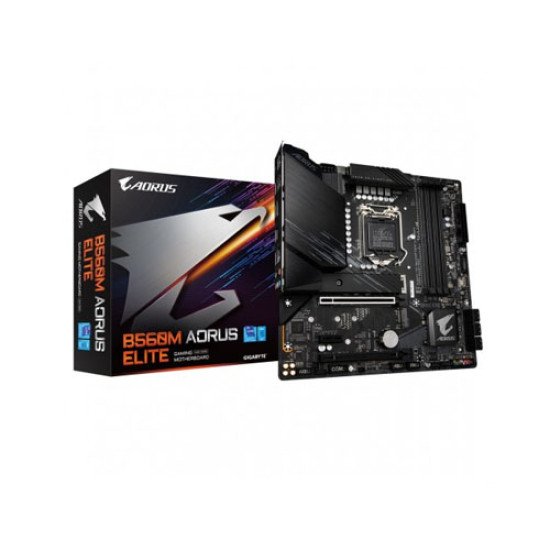

The Gigabyte B560M AORUS ELITE Intel 10th and 11th Gen Micro ATX Motherboard is a powerful and feature-rich motherboard designed for gamers, creators, and performance-focused PC builders. Built on Intel’s B560 chipset, this motherboard fully supports Intel 10th and 11th Gen Core processors, ensuring stable performance, improved power efficiency, and next-generation connectivity. Its Micro ATX form factor makes it an excellent choice for compact builds without compromising on premium features. This motherboard comes equipped with a robust 12+1 phase digital VRM design, delivering consistent power to the CPU even during heavy workloads or gaming sessions. Support for dual-channel DDR4 memory with XMP up to higher frequencies ensures smooth multitasking and faster system responsiveness. For storage, the Gigabyte B560M AORUS ELITE features dual M.2 slots, including PCIe 4.0 support (with 11th Gen CPUs), allowing ultra-fast NVMe SSD performance for quick boot times and rapid data transfers. On the connectivity side, it includes PCIe 4.0 x16 support, high-quality Realtek audio with AORUS-tuned capacitors, and multiple USB ports for modern peripherals. Advanced thermal solutions, such as enlarged heatsinks and Smart Fan 6 technology, help maintain optimal temperatures and system stability. With RGB Fusion 2.0 support, users can customize lighting effects to match their build theme. Overall, this motherboard balances durability, performance, and aesthetics, making it a reliable foundation for mid to high-end Intel-based systems.
Special Benefits of Gigabyte B560M AORUS ELITE Intel 10th and 11th Gen Micro ATX Motherboard
Designed for users who want strong performance, future-ready features, and long-term reliability, this motherboard delivers excellent value in its segment.
If you’re looking for an Affordable 10th Gen motherboard that offers premium AORUS features, this Gigabyte Intel Motherboard is a smart choice within the 10 th Gen Motherboard category. You can get this genuine Gigabyte motherboard at the best price and trusted service from Tech Valley.
The latest price of Gigabyte B560M AORUS ELITE Intel 10th and 11th Gen Micro ATX Motherboard in Bangladesh is 15,300৳ You can buy the Gigabyte B560M AORUS ELITE Intel 10th and 11th Gen Micro ATX Motherboard at best price from our Website or visit any of our showrooms.
