| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU | |
| Chipset | Intel B760 Express Chipset | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> Support for S/PDIF Out | |
| Type | DDR5 | |
| Memory Specifications | ||
| Maximum Memory | Up to 192 GB (48 GB single DIMM capacity) of system memory | |
| Slots | 4 | |
| Supported Memory | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules<br> Dual channel memory architecture<br> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for Extreme Memory Profile (XMP) memory modules | |
| Expansion Slots | ||
| PCI | CPU:<br> 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)<br> Chipset:<br> 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz<br> * Support for DisplayPort 1.2 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> * Support for HDMI 2.0 version and HDCP 2.3. | |
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| Display Port (s) | 1x DisplayPort | |
| USB (s) | Chipset:<br> 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header<br> 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)<br> 1 x USB 2.0/1.1 port on the back panel<br> Chipset+2 USB 2.0 Hubs:<br> 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) | |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)<br> 1 x RJ-45 port | |
| Supported Storage | CPU:<br> 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset:<br> 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)<br> 4 x SATA 6Gb/s connectors | |
| Audio | 3 x audio jacks | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 3 x system fan headers<br> 2 x addressable LED strip headers<br> 2 x RGB LED strip headers<br> 2 x M.2 Socket 3 connectors<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x S/PDIF Out header<br> 1 x USB Type-C® header, with USB 3.2 Gen 2 support<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 2 x Thunderbolt™ add-in card connectors<br> 1 x serial port header<br> 1 x Q-Flash Plus button<br> 1 x reset jumper<br> 1 x Clear CMOS jumper | |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| Others Information | ||
| Bundled Software | Norton Internet Security (OEM version)<br> LAN bandwidth management software | |
| Special Features | Support for GIGABYTE Control Center (GCC)<br> Support for Q-Flash<br> Support for Q-Flash Plus | |
| Warranty Information | ||
| Warranty | 3 years | |

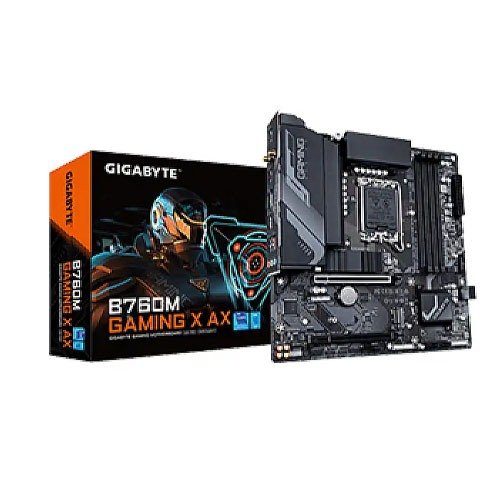

GIGABYTE B760M GAMING X mATX Motherboard price in bd is designed for gamers, creators, and professionals who demand power, stability, and future-ready features. Built with the Intel B760 Express chipset, this motherboard supports the latest 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors, making it a reliable foundation for modern PC builds. With DDR5 memory compatibility up to 192GB and extreme overclocking support, users can enjoy unmatched speed and responsiveness for multitasking, gaming, and creative workloads. The GIGABYTE B760M GAMING X mATX Motherboard ensures premium graphics support through HDMI and DisplayPort, allowing 4K resolution with smooth performance. It comes with PCIe 4.0 expansion slots for high-speed graphics cards and NVMe SSDs, ensuring faster data transfer and future-proof connectivity. Storage flexibility is enhanced with dual M.2 slots and multiple SATA ports, supporting RAID configurations for improved performance and security. Connectivity is another strong point, featuring Realtek 2.5GbE LAN, multiple USB 3.2 ports including Type-C, and advanced audio with Realtek codec for immersive sound. Smart Fan 6 technology keeps your system cool under pressure, while Q-Flash Plus and GIGABYTE Control Center (GCC) provide easy BIOS updates and system management. Whether you’re building a compact gaming rig or a productivity-focused workstation, the GIGABYTE B760M GAMING X mATX Motherboard delivers exceptional value in Bangladesh. With its blend of power, durability, and advanced features, it is the perfect choice for anyone looking to upgrade their PC with cutting-edge technology.
The latest price of GIGABYTE B760M GAMING X mATX Motherboard in Bangladesh is 20,600৳ You can buy the GIGABYTE B760M GAMING X mATX Motherboard at best price from our Website or visit any of our showrooms.
