| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors<br> L3 cache varies with CPU | |
| Chipset | Intel H610 Express Chipset | |
| BIOS | 1 x 128 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm | |
| Audio | Realtek Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel | |
| Type | DDR5 | |
| Memory Specifications | ||
| Maximum Memory | up to 64 GB (32 GB single DIMM capacity) of system memory | |
| Slots | 2 | |
| Supported Memory | Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture<br> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for Extreme Memory Profile (XMP) memory modules | |
| Expansion Slots | ||
| PCI | CPU:<br> 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16<br> Chipset:<br> 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support:<br> 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz<br> 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> Support for HDMI 2.1 version and HDCP 2.3.<br> Support native HDMI 2.1 TMDS compatible ports<br> (Graphics specifications may vary depending on CPU support.) | |
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| USB (s) | Chipset:<br> 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)<br> 4 x USB 2.0/1.1 ports on the back panel<br> Chipset+USB 2.0 Hub:<br> 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps) | |
| Supported Storage | Chipset:<br> 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)<br> 4 x SATA 6Gb/s connectors | |
| Audio | 1 x front panel audio header<br> 2 x audio jacks | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 2 x system fan headers<br> 1 x M.2 Socket 3 connector<br> 4 x SATA 6Gb/s connectors<br> 1 x RGB LED strip header<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x serial port header<br> 1 x Clear CMOS jumper | |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| D-Sub (s) | 1x D-Sub port | |
| Others Information | ||
| Bundled Software | Norton Internet Security (OEM version)<br> LAN bandwidth management software | |
| Special Features | Support for APP Center<br> Support for Q-Flash<br> Support for Xpress Install | |
| Warranty Information | ||
| Warranty | 3 years | |

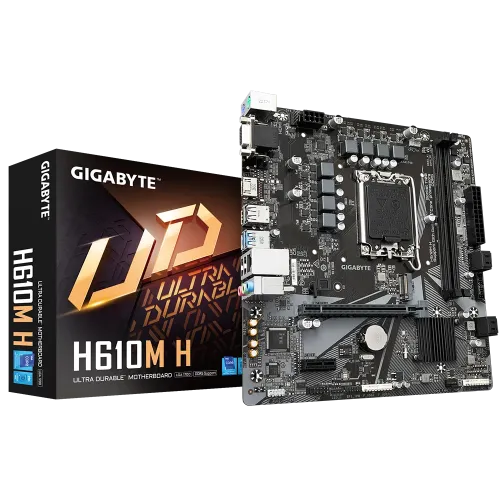

GIGABYTE H610M H DDR5 mATX. Motherboard price in bd is an excellent choice for users seeking a modern, high-performance motherboard compatible with Intel’s latest processors. Designed with a Micro ATX form factor (23.0 x 21.5 cm), it supports 12th, 13th, and 14th Generation Intel Core processors, along with Pentium Gold and Celeron CPUs, providing a versatile platform for gaming, office, and multimedia systems. This motherboard features dual-channel DDR5 memory architecture, supporting up to 64GB RAM across 2 DIMM slots with XMP profiles and high-speed memory modules up to 7600(O.C.) MT/s, ensuring fast and stable system performance. Integrated graphics support comes via HDMI 2.1 (4K @60Hz) and D-Sub (1920x1200 @60Hz) ports, allowing high-resolution display output without a discrete GPU. For storage, it offers 1 M.2 connector (PCIe 3.0 x4/x2) and 4 SATA 6Gb/s ports, along with Realtek GbE LAN for stable networking. Audio is powered by the Realtek HD codec, supporting 2/4/5.1/7.1 channels for immersive sound. Expansion is versatile with 1 PCIe x16 and 1 PCIe x1 slot, while internal headers include USB 3.2 Gen 1, USB 2.0, fan headers, RGB LED strip header, and TPM support. Additional features include APP Center, Q-Flash, and Xpress Install, enabling system management and easy updates. Bundled with Norton Internet Security OEM version and LAN management software, it ensures security and optimized connectivity. With a 3-year manufacturing warranty, the GIGABYTE H610M H DDR5 mATX Motherboard in Bangladesh provides a future-ready, durable, and high-performance solution for modern desktop builds.
The GIGABYTE H610M H DDR5 mATX Motherboard price in Bangladesh provides excellent value for building high-performance desktops. Supporting 12th to 14th Gen Intel Core processors, DDR5 memory up to 64GB, M.2 and SATA storage, and PCIe expansion, it is perfect for gaming, office, and multimedia systems. Techvalley Distributions Ltd. offers this motherboard at a competitive price with a 3-year manufacturing warranty, ensuring durability, reliability, and future-ready performance for modern PC builds in Bangladesh.
Q1: Which Intel processors are compatible with the H610M H motherboard?
A1: It supports 12th, 13th, and 14th Generation Intel Core, Pentium Gold, and Celeron processors in the LGA1700 socket.
Q2: How much memory can the H610M H motherboard support?
A2: It supports up to 64GB DDR5 RAM across 2 DIMM slots with dual-channel architecture.
Q3: Does the motherboard support M.2 SSDs?
A3: Yes, it features 1 M.2 Socket 3 connector supporting PCIe 3.0 x4/x2 SSDs for high-speed storage.
The latest price of GIGABYTE H610M H DDR5 mATX Motherboard in Bangladesh is 10,800৳ You can buy the GIGABYTE H610M H DDR5 mATX Motherboard at best price from our Website or visit any of our showrooms.
