| Basic Information | ||
| Supported CPU | Support for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package<br> L3 cache varies with CPU | |
| Chipset | Intel H610 Express Chipset | |
| BIOS | 1 x 128 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm | |
| Audio | Realtek Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| Type | DDR5 | |
| Memory Specifications | ||
| Maximum Memory | up to 64 GB (32 GB single DIMM capacity) of system memory | |
| Slots | 2 x DDR DIMM sockets | |
| Supported Memory | 13th Generation Intel Core i9/i7 processors:<br> Support for DDR5 5600/5200/4800/4400 MT/s memory modules<br> 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors: Support for DDR5 4800/4400 MT/s memory modules<br> 2 x DDR DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture<br> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> support for Extreme Memory Profile (XMP) memory modules | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16<br> Chipset:<br> 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support:<br> 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz<br> 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz<br> * The DVI-D port does not support D-Sub connection by adapter.<br> 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> * Support for HDMI 2.1 version and HDCP 2.3.<br> ** Support native HDMI 2.1 TMDS compatible ports.<br> 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz<br> * Support for DisplayPort 1.2 version and HDCP 2.3 | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| USB (s) | Chipset:<br> 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)<br> 4 x USB 2.0/1.1 ports on the back panel<br> Chipset+USB 2.0 Hub:<br> 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps) | |
| Supported Storage | Chipset:<br> 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)<br> 4 x SATA 6Gb/s connectors | |
| Audio | 3 x audio jacks | |
| Internal I/O Ports | Internal I/O Connectors<br> 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 2 x system fan headers<br> 1 x M.2 Socket 3 connector<br> 4 x SATA 6Gb/s connectors<br> 1 x RGB LED strip header<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x serial port header<br> 1 x Clear CMOS jumper<br> Back Panel Connectors<br> 1 x PS/2 keyboard port<br> 1 x PS/2 mouse port<br> 1 x D-Sub port<br> 1 x DVI-D port<br> 1 x DisplayPort<br> 1 x HDMI port<br> 2 x USB 3.2 Gen 1 ports<br> 4 x USB 2.0/1.1 ports<br> 1 x RJ-45 port<br> 3 x audio jacks | |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| D-Sub (s) | 1 x D-Sub port | |
| DVI-D (s) | 1 x DVI-D port | |
| Others Information | ||
| Bundled Software | Norton Internet Security (OEM version)<br> cFosSpeed | |
| Special Features | Support for APP Center<br> * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.<br> @BIOS<br> EasyTune<br> Fast Boot<br> Game Boost<br> ON/OFF Charge<br> RGB Fusion<br> Smart Backup<br> System Information Viewer<br> Support for Q-Flash Plus<br> Support for Q-Flash<br> Support for Xpress Install | |
| Warranty Information | ||
| Warranty | 3 years | |

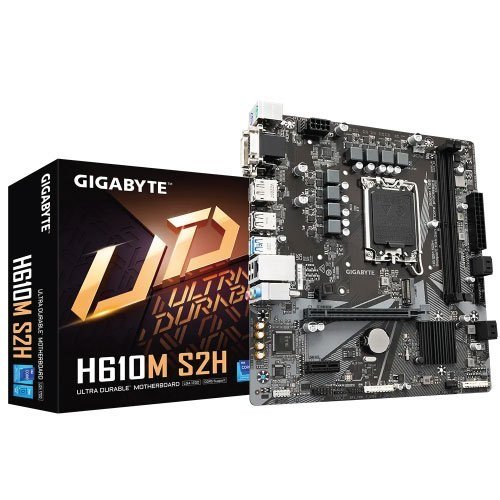

GIGABYTE H610M S2H DDR5 mATX Motherboard price in bd is designed to deliver high-performance computing for gamers, professionals, and PC enthusiasts in Bangladesh. Supporting 12th, 13th, and 14th Generation Intel Core processors, as well as Intel Pentium and Celeron CPUs, this Micro ATX motherboard ensures versatility and reliability for modern PC builds. The Intel H610 Express Chipset provides a stable foundation, while the AMI UEFI BIOS simplifies system configuration and updates. Equipped with two DDR5 DIMM slots, the GIGABYTE H610M S2H supports up to 64GB of high-speed memory with dual-channel architecture, ECC and non-ECC module compatibility, and XMP profiles. This ensures fast data processing and seamless multitasking. The PCIe 4.0 x16 slot and PCIe 3.0 x1 expansion slot allow flexible installation of graphics cards and other peripherals. Integrated graphics support via D-Sub, DVI-D, HDMI 2.1, and DisplayPort 1.2 enables multi-display setups with resolutions up to 4096x2304@60Hz. For connectivity, the motherboard offers USB 3.2 Gen 1, USB 2.0, Realtek GbE LAN, and multiple audio jacks supporting 7.1-channel high-definition audio. Storage options include an M.2 PCIe 3.0 slot and four SATA 6Gb/s connectors with RAID support. Additional features such as RGB Fusion, Q-Flash Plus, Fast Boot, and Smart Backup enhance functionality, while the 3-year manufacturing warranty ensures peace of mind. Affordable and packed with advanced features, the GIGABYTE H610M S2H DDR5 mATX Motherboard price in bd makes it a top choice for high-performance, future-ready computing in Bangladesh.
The GIGABYTE H610M S2H DDR5 mATX Motherboard price in BD is competitive, offering advanced 12th to 14th Gen Intel processor support at an affordable rate. Techvalley Distributions Ltd. brings this high-performance motherboard to Bangladeshi users, ensuring value for money, DDR5 memory support, and versatile connectivity for gaming, office, or multimedia setups. With this pricing, you can build a future-proof system without compromising on quality or features.
Q1: Which processors are compatible with the GIGABYTE H610M S2H DDR5?
A1: Supports 12th, 13th, 14th Gen Intel Core i9/i7/i5/i3, Pentium, and Celeron processors with LGA1700 socket.
Q2: What is the maximum memory supported?
A2: Up to 64GB DDR5 memory with dual-channel architecture and XMP profile support.
Q3: Does it support multi-display output?
A3: Yes, it supports up to four displays using HDMI 2.1, DisplayPort 1.2, DVI-D, and D-Sub ports.
The latest price of GIGABYTE H610M S2H DDR5 mATX Motherboard in Bangladesh is 11,500৳ You can buy the GIGABYTE H610M S2H DDR5 mATX Motherboard at best price from our Website or visit any of our showrooms.
