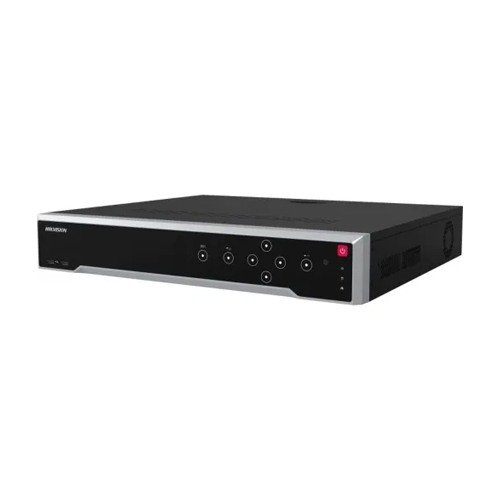

Hikvision DS-7764NI-M4 64 Channel 4HDD 8K NVR

Regular Price: 47,100৳
Status: In Stock
Model: DS-7764NI-M4
Brand: : Hikvision

Key Features

  • Camera Inputs: Up to 64-Channel IP camera
  • Resolution Support: up to 32 MP (per channel)
  • Incoming/Outgoing Bandwidth: 400 Mbps
  • Ports: 2x HDMI and 1x VGA, 8K or dual 4K video outputs
View More Info

Payment Options

  • Description
  • Questions (0)
  • Reviews (0)

Description

Specification

Audio and Video
IP Camera Input 64-ch Up to 32 MP resolution
* After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
Two-Way Talk 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Display
Interface HDMI1/VGA simultaneous output, HDMI1/HDMI2 independent output
Resolution HDMI 1: Output 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI 2: Output 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
VGA: Output 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Decoding Capacity 2-ch@32 MP (30 fps)/2-ch@24 MP (30 fps)/4-ch@12 MP (20 fps)/8-ch@8 MP (25 fps)/16-ch@4 MP (30 fps)/32-ch@1080p (30 fps)
Recording
Compression Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
Resolution 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
*After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
Video Detection And Alarm
Alarm Input 16/9
Playback And Backup
Sync Playback 16-ch
Network
Interface ESATA: 1x eSATA interface
SATA: 4x SATA interfaces
Capacity: Up to 16 TB capacity for each HDD
Serial Interface: 2x RS-485 (half-duplex), 1 RS-232
Alarm In/Out: 16/9
USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Ctrl 12V: Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.
*The Ctrl 12V power is controlled by alarm output 9.
DC 12V: 12 VDC, 1 A power output
Ethernet Port 2x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
Storage
Internal HDD Up to 16 TB capacity for each HDD
eSATA Yes
Auxiliary Interface
USB Front panel: 2 × USB 2.0
Rear panel: 1 × USB 3.0
Power
Power Supply 100 to 240 VAC, 50 to 60 Hz
Power Consumption ≤ 15 W (without HDD)
Component Environment
Operational Conditions -10 °C to 55 °C (14 °F to 131 °F)
Construction
Dimensions 445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0")
Net Weight ≤ 5 kg (without HDD, 11 lb.)
Warranty
Manufacturing Warranty 1 Year


Hikvision DS-7764NI-M4 64 Channel 4HDD 8K NVR

Hikvision DS-7764NI-M4 is a high-performance 64-channel network video recorder (NVR) designed to meet the demands of extensive surveillance systems. This advanced NVR supports up to 32 MP resolution, allowing for incredibly detailed video capture. When the ultra HD resolution mode is enabled, it can handle up to 8 channels of 32 MP or 24 MP IP video inputs, making it ideal for environments requiring high-resolution monitoring.
One of the standout features of the DS-7764NI-M4 is its impressive 8K video output capability via HDMI, supporting resolutions up to 7680 x 4320 at 30 Hz. This allows users to connect to high-definition displays for unparalleled clarity in video playback. Additionally, it offers dual HDMI outputs, enabling simultaneous viewing on multiple screens, which enhances operational efficiency.
The NVR is equipped with robust decoding capabilities, allowing for smooth playback of multiple channels, including 2 channels at 32 MP or 4 channels at 12 MP. This ensures that users can monitor and review footage without lag, even in high-resolution formats.
With a storage capacity of up to 16 TB per HDD across four SATA interfaces, the DS-7764NI-M4 can accommodate extensive video data, making it suitable for long-term surveillance needs. The device also features a user-friendly interface with multiple USB ports for easy data transfer and backup.
Designed for reliability, the NVR operates within a temperature range of -10 °C to 55 °C and has a compact form factor, measuring 445 x 400 x 75 mm and weighing less than 5 kg. With a 1-year warranty, the Hikvision DS-7764NI-M4 is an exceptional choice for those seeking a powerful, high-capacity NVR that leverages cutting-edge technology for effective security monitoring.

What is the price of Hikvision DS-7764NI-M4 64 Channel 4HDD 8K NVR?

The latest price of Hikvision DS-7764NI-M4 64 Channel 4HDD 8K NVR in Bangladesh is 47,100৳ You can buy the Hikvision DS-7764NI-M4 64 Channel 4HDD 8K NVR at best price from our Website or visit any of our showrooms.
