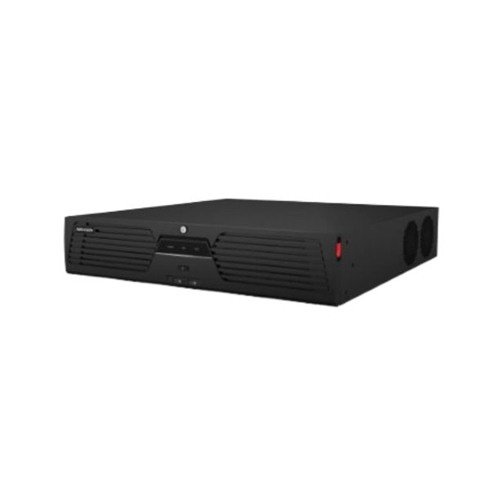

Hikvision DS-9664NI-M8 64-Channel 2U 4K NVR

Regular Price: 125,100৳
Status: In Stock
Model: DS-9664NI-M8
Brand: : Hikvision

Key Features

  • Up to 64-ch IP camera inputs
  • Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity
  • Up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth
  • 2 HDMI (different source) and 2 VGA (different source) interfaces, 8K or dual 4K video outputs
View More Info

Payment Options

  • Description
  • Questions (0)
  • Reviews (0)

Description

Brand Hikvision
Model Hikvision DS-9664NI-M8
Type 4K NVR
Video Compression/Format H.265+/H.265/H.264+/H.264
Video Output (VGA) 1920 x 1080/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz
Video Output (HDMI) 8K (7680 x 4320)/30 Hz, 4K (3840 x 2160)/60 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz
Video Output (BNC) 1-ch, BNC (1.0 Vp-p, 75), resolution: PAL: 704 x 576, NTSC: 704 x 480
Video Recording Res. 32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Max. Video Recording Res. 4K
IP Video Input 64 Channel
Audio Input Channel (RCA) 1 Channel RCA
Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
Audio Output Channel 2 Channel RCA
Two Way Audio 1 Channel RCA (2.0 Vp-p, 1 K, using the audio input)
Dual Stream Support Unmentioned
Decoding Capability 2-ch 32 MP (30 fps) + 2-ch 8 MP (30 fps)/10-ch 8 MP (30 fps)/20-ch 4 MP (30 fps)/40-ch 1080p (30 fps)
Synchronous Playback 16 Channel
Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Number HDD Interface (SATA) 8 SATA
Max HDD Support (GB,TB) 10TB per disk
eSATA 1
Network Interface (RJ45) 2
Serial Interface 1 x RS-485 (Full-Duplex), 1 x RS-232
USB Port Front: 2 x USB 2.0, Rear: 2 x USB 3.0
Incoming Bandwidth 400 Mbps
Outgoing Bandwidth 400 Mbps
Chassis 2U Chassis
Power Supply 100 to 240 VAC, 50 to 60 Hz
Approx. Power Consumption <= 50W
Dimensions 445 x 465 x 93mm
Weight <= 10 kg
Feature
2 HDMI (different source) and 2 VGA (different source) interfaces, 8K or dual 4K video outputs. Supports special cameras, including a people counting camera, an ANPR (automatic number plate recognition), and fisheye cameras. Advanced streaming technology enables smooth live view in poor network conditions. Supports RAID 0, 1, 5, 6, 10, and N+M hot spare for even more reliable data storage, effectively avoiding data loss risks.
Others
Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface. Alarm In/Out: 16/9, Ctrl 12V: Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. DC 12V: 12 VDC, 1 A power output. Working Temperature: -10 to 55 Degrees C. Working Humidity: 10% to 90%. Certification: CE, FCC. CE: EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4. Video Output Mode: HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output and work as the auxiliary output.
Warranty 1 year


Hikvision DS-9664NI-M8 64-Channel 2U 4K NVR

Hikvision DS-9664NI-M8 is a powerful 64-channel 2U 4K network video recorder (NVR), engineered for large-scale surveillance applications. This advanced NVR supports up to 64 IP camera inputs, allowing for extensive monitoring capabilities across various environments, from retail spaces to critical infrastructure.
One of the standout features of the DS-9664NI-M8 is its impressive video output capabilities, including support for 8K resolution (7680 x 4320) at 30 Hz and 4K resolution (3840 x 2160) at 60 Hz. This ensures that users can experience crystal-clear video playback, making it easier to identify details in high-resolution footage. The NVR also supports a variety of video recording resolutions, including 32 MP, 24 MP, and 12 MP, providing flexibility for different surveillance needs.
The device is equipped with robust decoding capabilities, allowing for smooth playback of multiple channels simultaneously. It can handle 2 channels at 32 MP or 10 channels at 8 MP, ensuring that users can monitor live feeds without lag. Additionally, the NVR features synchronous playback for up to 16 channels, enhancing the efficiency of video review processes.
With 8 SATA interfaces, the DS-9664NI-M8 supports a maximum storage capacity of 10 TB per disk, totaling 80 TB of storage, which is ideal for retaining extensive video data over long periods. The NVR also includes multiple USB ports for easy data transfer and backup.
Designed for reliability, the DS-9664NI-M8 operates efficiently within a temperature range of -10 °C to 55 °C and has a compact form factor, measuring 445 x 465 x 93 mm and weighing under 10 kg. With a 1-year warranty, this NVR is an excellent choice for those seeking a high-capacity, feature-rich solution for effective surveillance and security monitoring.

What is the price of Hikvision DS-9664NI-M8 64-Channel 2U 4K NVR?

The latest price of Hikvision DS-9664NI-M8 64-Channel 2U 4K NVR in Bangladesh is 125,100৳ You can buy the Hikvision DS-9664NI-M8 64-Channel 2U 4K NVR at best price from our Website or visit any of our showrooms.
