| Network |
Network Protocol:
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF:
Number HDD Interface (SATA):
2 SATA
Max HDD Support (GB,TB):
Up to 10 TB capacity for each disk
Max. Storage Support:
20TB:
Network Interface (RJ45):
1, RJ45 10M/100M/1000M self-adaptive Ethernet interface<br |
| Recording |
Video Input Channel (BNC):
32-channel, BNC Interface (1.0Vp-p, 75):
Video Compression/Format:
H.265 Pro+/ H.265 Pro/ H.265/ H.264+/ H.264:
Video Output (VGA):
1-Channel Resolution: 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz:
Video Output (HDMI):
1-Channel Resolution: 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz:
Video Recording Res:
1080p, 720p, VGA, WD1, 4CIF, CIF:
Max. Video Recording Res:
1080p:
|
| Video and Audio |
Video Bit Rate:
32 Kbps to 4 Mbps:
IP Video Input:
2-channel (up to 18-ch):
Analog & HD-TVI Video Input:
1080p25, 1080p30, 720p25, 720p30:
Audio Input Channel (RCA)
1-channel: RCA (2.0 Vp-p, 1 K omega)
Audio Compression:
G.711u
Audio Output Channel:
1-channel: RCA (Linear, 1 K omega)
Two way Audio:
1-channel: RCA (2.0 Vp-p, 1 K omega)
|
| General |
| Color |
Black |
| Power |
Power Supply:
12 VDC |
| Power Consumption |
<-18 W |
| Dimensions |
380 x 320 x 48 mm |
| Weight |
<-2.2 kg |

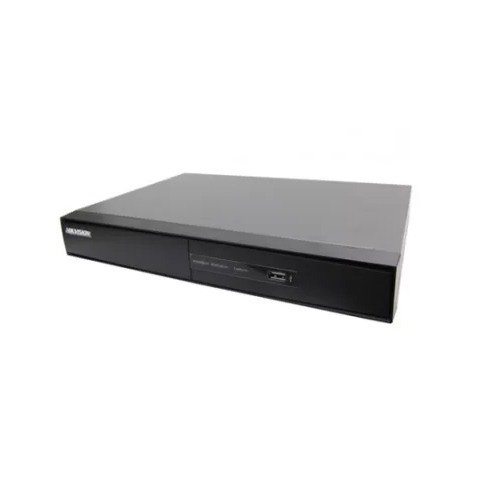

HIKVISION DS-7232HGHI-K2 32-CH Turbo HD 720P DVR
The HIKVISION DS-7232HGHI-K2 is a cutting-edge 32-channel Turbo HD DVR designed to provide advanced surveillance capabilities for a wide range of applications. With its high-performance features and robust design, this DVR stands out as a reliable and efficient solution for security monitoring.
One of the key features of the DS-7232HGHI-K2 is its support for Turbo HD technology, allowing users to connect both HD-TVI and analog cameras seamlessly. This versatility enables users to upgrade their existing analog surveillance systems to high-definition without the need for an entire overhaul. The DVR supports up to 32 channels, offering a comprehensive and scalable solution for large-scale security setups. Equipped with HDMI and VGA outputs, the DS-7232HGHI-K2 provides flexibility in connecting to various display devices, ensuring clear and crisp video playback. The DVR supports a maximum resolution of 720p, delivering sharp and detailed images that are crucial for effective surveillance. This high resolution ensures that users can capture critical details in their security footage. To meet the demands of extensive video storage requirements, the DS-7232HGHI-K2 is equipped with two SATA interfaces, allowing users to install multiple hard drives for ample storage space. This is especially beneficial for businesses or organizations with extended recording needs. Moreover, the DS-7232HGHI-K2 prioritizes user convenience through its compatibility with the EZVIZ Cloud P2P service. This feature enables easy and secure remote access to the DVR, allowing users to view their surveillance footage anytime, anywhere
