| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors<br> (Go to GIGABYTE's website for the latest CPU support list.)<br> L3 cache varies with CPU | |
| Chipset | Intel B760 Express Chipset | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.<br> Support for S/PDIF Out | |
| Memory | Support for DDR5 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) /<br> 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules<br> 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory<br> Dual-channel memory architecture<br> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for Extreme Memory Profile (XMP) memory modules<br> (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM<br> modules. Please refer to "Memory Support List" on GIGABYTE's website for more information.) | |
| Operating System | Support for Windows 11 64-bit<br> Support for Windows 10 64-bit | |
| Input Devices | ||

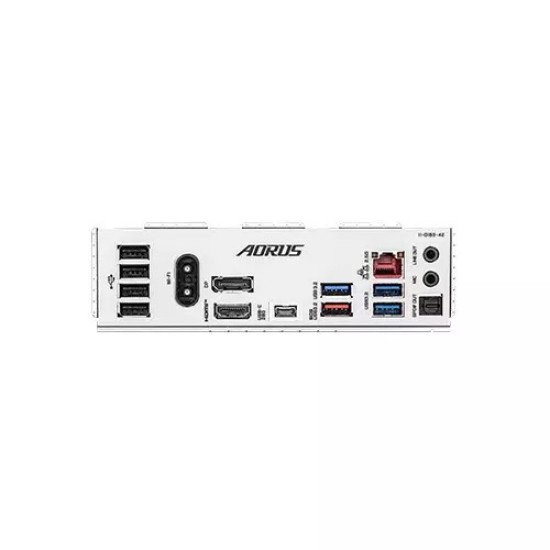

| External I/O Ports | 2 x antenna connectors (2T2R)<br> 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support<br> 1 x USB 3.2 Gen 2 Type-A port (red)<br> 3 x USB 3.2 Gen 1 ports<br> 4 x USB 2.0/1.1 ports<br> 1 x HDMI port (Note)<br> 1 x DisplayPort (Note)<br> 1 x RJ-45 port<br> 1 x optical S/PDIF Out connector<br> 2 x audio jacks | |
| Memory | ||
| Slots | Expansion Slots<br> CPU:<br> - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)<br> * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.<br> Chipset:<br> - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) | |
| Graphics | ||
| Graphics | Onboard Graphics<br> Integrated Graphics Processor-Intel HD Graphics support:<br> - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> * Support for the HDMI 2.1 version and HDCP 2.3.<br> ** Support for native HDMI 2.1 TMDS compatible ports.<br> - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz<br> * Support for DisplayPort 1.2 version and HDCP 2.3<br> (Graphics specifications may vary depending on CPU support.) | |
| Connector & Ports | ||
| USB (s) | Chipset:<br> - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support<br> - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header<br> - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel<br> - 1 x USB 3.2 Gen 1 port on the back panel<br> - 4 x USB 2.0/1.1 ports available through the internal USB headers<br> Chipset+USB 3.2 Gen 1 Hub:<br> - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)<br> Chipset+USB 2.0 Hub:<br> - 4 x USB 2.0/1.1 ports on the back panel | |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | CPU:<br> - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)<br> Chipset:<br> - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)<br> - 4 x SATA 6Gb/s connectors<br> RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x 4-pin ATX 12V power connector<br> 1 x CPU fan header<br> 3 x system fan headers<br> 3 x addressable RGB Gen2 LED strip headers<br> 1 x RGB LED strip header<br> 2 x M.2 Socket 3 connectors<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB Type-C® header, with USB 3.2 Gen 2 support<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 2 x Thunderbolt™ add-in card connectors<br> 1 x Trusted PlatformModule header (For theGC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)<br> 1 x Q-Flash Plus button<br> 1 x reset button<br> 1 x reset jumper<br> 1 x Clear CMOS jumper | |
| Network & Connectivity | ||
| Bluetooth | - BLUETOOTH 5.3<br> - Support for 11ax 160MHz wireless standard | |
| WiFi | Intel Wi-Fi 6E AX210 - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
| Others Information | ||
| Bundled Software | Norton Internet Security (OEM version)<br> LAN bandwidth management software | |
| Other Features | H/W Monitoring: <br> Voltage detection<br> Temperature detection<br> Fan speed detection<br> Water cooling flow rate detection<br> Fan fail warning<br> Fan speed control | |
| Special Features | Support for GIGABYTE Control Center (GCC)<br> Support for Q-Flash<br> Support for Q-Flash Plus | |
| Warranty Information | ||
| Warranty | 3 Years | |
The GIGABYTE B760M AORUS ELITE WIFI6E GEN5 is a high-performance Micro ATX motherboard designed for users who want next-generation features in a compact and durable form factor. Powered by the Intel B760 Express Chipset and LGA1700 socket, it fully supports Intel 14th, 13th, and 12th Generation Core, Pentium Gold, and Celeron processors, making it a reliable choice for modern gaming, content creation, and productivity builds. This motherboard offers advanced DDR5 memory support with four DIMM slots, allowing up to 256GB dual-channel memory and speeds up to 7800 MT/s (OC). Support for XMP profiles ensures easy memory tuning for stable and high-speed performance, ideal for multitasking and demanding applications. For storage, the B760M AORUS ELITE WIFI6E GEN5 includes two PCIe 4.0 M.2 slots and four SATA 6Gb/s ports with RAID 0/1/5/10 support, providing flexible and fast storage options. Graphics performance is future-ready with a PCIe 5.0 x16 slot, supporting the latest GPUs, along with onboard display outputs via HDMI 2.1 and DisplayPort. Connectivity is a major strength, featuring Intel Wi-Fi 6E, Bluetooth 5.3, and a 2.5GbE LAN for ultra-fast, low-latency networking. A wide selection of USB ports, including USB 3.2 Gen 2x2 Type-C, ensures compatibility with modern devices. With premium AORUS build quality, smart cooling features, RGB support, and a 3-year warranty, this motherboard is a future-ready foundation for high-performance PC builds.
The latest price of GIGABYTE B760M AORUS ELITE WIFI6E GEN5 Intel 14th Gen DDR5 Micro ATX Motherboard in Bangladesh is 24,300৳ You can buy the GIGABYTE B760M AORUS ELITE WIFI6E GEN5 Intel 14th Gen DDR5 Micro ATX Motherboard at best price from our Website or visit any of our showrooms.
