| Basic Information |
| Supported CPU | LGA1851 socket: Support for Intel Core Ultra Processors
L3 cache varies with CPU |
| Chipset | Intel Z890 Express Chipset |
| BIOS | 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Audio | Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel |
| Expansion Slots |
| PCI | CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| M.2 Socket | CPU:
- 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB) |
| Memory |
| Type | DDR5 |
| Slots | 4 x DIMM |
| Supported Memory | Support for DDR5 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Support CUDIMM memory module |
| Maximum Memory | up to 256 GB (64 GB single DIMM capacity) of system memory |
| Graphics |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
- 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 2.1 version. |
| Connector & Ports |
| HDMI | 1 x HDMI port |
| Display Port (s) | 2 x DisplayPort |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Supported Storage | CPU:
- 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB)
- 4 x SATA 6Gb/s connectors |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Audio | 3 x audio jacks
1 x front panel audio header |
| Internal I/O Ports | 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
2 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper
Back Panel Connectors
1 x PS/2 keyboard/mouse port
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x HDMI port (Note)
2 x DisplayPorts (Note)
1 x RJ-45 port
3 x audio jacks |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| Others |
| Special Features | Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functionsof each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Smart Backup |
| Bundled Software | Norton Internet Security (OEM version)
LAN bandwidth management software |
| Warranty Information |
| Manufacturing Warranty | 3 Year |

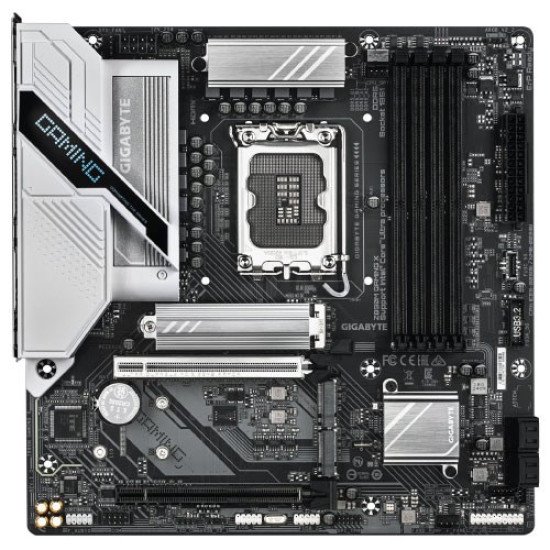

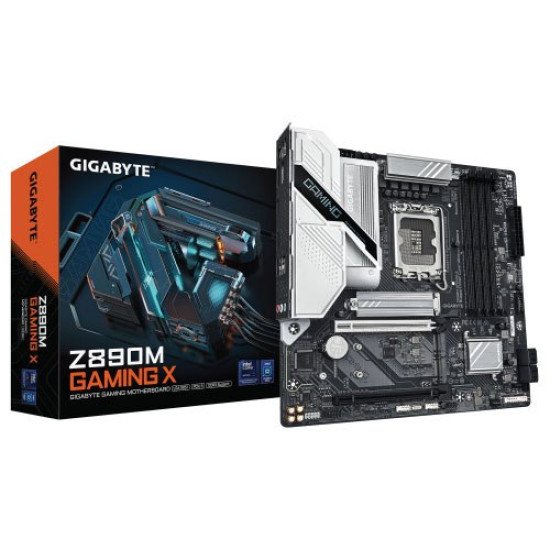

Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard
The Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard is a high-performance, next-generation motherboard designed for modern Intel PC builds, offering exceptional speed, stability, and expandability in a compact Micro ATX form factor. Powered by the Intel Z890 Express Chipset and built for the LGA1851 socket, it supports the latest Intel Core Ultra Processors, ensuring powerful computing performance for gaming, content creation, and productivity. With support for advanced technologies such as DDR5 memory, PCIe 5.0, and multiple high-speed M.2 slots, this motherboard is engineered to deliver cutting-edge capability for demanding users. This motherboard comes equipped with 4 DDR5 DIMM slots, supporting up to 256GB of ultra-fast memory with speeds reaching up to 9066MT/s (O.C.). The dual-channel memory architecture and XMP support ensure optimized performance for both gamers and professionals. Storage flexibility is one of its major strengths, offering three M.2 connectors—including PCIe 5.0 and PCIe 4.0 support—along with four SATA 6Gb/s ports, allowing users to build a fast and versatile storage ecosystem. RAID 0, 1, 5, and 10 support for both NVMe and SATA ensures advanced configuration options for speed, redundancy, or balanced performance.
The PCIe 5.0 x16 slot powered by the CPU delivers maximum bandwidth for next-gen GPUs and even supports NVMe SSDs for extreme performance. An additional PCIe 4.0 x4 slot ensures expandability for add-on cards. For display connectivity, users get 1 HDMI 2.1 port and 2 DisplayPort 2.1 outputs, supporting 4K resolutions at 60Hz—ideal for multi-monitor and high-resolution setups. The inclusion of Realtek 2.5GbE LAN ensures high-speed networking suitable for gamers and heavy multitaskers.
For thermal and power efficiency, the board includes multiple fan and cooling pump headers, along with RGB Gen2 LED headers for customization. Its rich internal I/O selection includes USB 3.2 Gen 1, USB Type-C, Thunderbolt add-in card connectors, TPM support, and more. On the back panel, users get a balanced selection of USB 3.2, USB 2.0, PS/2, LAN, audio jacks, and video outputs. With support for GIGABYTE Control Center, Q-Flash, Smart Backup, and bundled security software, this motherboard provides a user-friendly and versatile environment. Overall, the Gigabyte Z890M GAMING X is a robust, future-ready Micro ATX motherboard offering premium features with a 3-year warranty, making it an excellent choice for high-performance PC builds.
Advanced Key Features of Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard
Experience next-level power, speed, and stability with the Gigabyte Z890M GAMING X, designed for high-end gaming builds and performance-driven PC users. This motherboard combines cutting-edge connectivity, faster storage options, and exceptional durability to unlock the full potential of Intel Core Ultra processors.
Key Features:
-
Next-Gen LGA1851 CPU Support – Fully compatible with Intel Core Ultra processors for maximum performance and future-ready computing.
-
Intel Z890 Chipset – Delivers advanced stability, enhanced overclocking support, and superior system responsiveness.
-
Powerful PCIe 5.0 Graphics Slot – Offers blazing-fast GPU bandwidth, ensuring optimal gaming and rendering performance.
-
Triple M.2 Slots – Includes 1× PCIe 5.0 and 2× PCIe 4.0 M.2 slots for ultra-fast NVMe SSD storage and RAID configurations.
-
High-Speed DDR5 Support – Supports up to 256GB DDR5 memory with speeds up to 9066(O.C) MT/s for smoother multitasking and extreme performance.
-
Advanced Cooling Support – Features multiple hybrid fan/water pump headers for efficient system heat management.
-
2.5GbE LAN Connectivity – Ensures lower latency and faster network performance for gaming and streaming.
-
Rich Display Options – Comes with 1× HDMI 2.1 and 2× DisplayPort 2.1 ports for high-resolution 4K output.
-
Premium Audio Quality – Realtek HD Audio with 7.1-channel support for immersive sound.
-
Enhanced RGB & Customisation – Includes RGB and ARGB headers for personalised lighting setups.
-
Durable Ultra-Quality Build – Designed with high-quality components to ensure long-lasting reliability.
-
Q-Flash & Smart Backup – Easily update BIOS or recover data without hassle.
The Gigabyte Z890M GAMING X Motherboard stands out as a powerful, future-ready choice for gamers and performance-focused users. If you're exploring more options, consider the Gigabyte A520M DS3H Ultra Durable AMD AM4 ATX Motherboard as another reliable alternative. You can also browse related categories like Component, Motherboard, and more products from Tech Valley for the best PC building experience.
