| Processor |
| Supported CPU |
AMD Socket AM4, support for 3rd Generation AMD Ryzen processors/ 3rd Generation AMD Ryzen with Radeon Graphics processors |
| Mainboard |
| Chipset |
AMD A520 |
| BIOS |
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Memory |
| Memory |
Type: Dual-Channel Memory Architecture ; Slots: 4 x DDR4 DIMM Supported Memory 3rd Gen AMD Ryzen Processors: Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Maximum Mamory 128 GB (32 GB single DIMM capacity) |
| Storage |
| Supported Storage |
CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
| Graphics |
| Graphics |
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for up to 3 displays at the same time Max Shared Memory 16 GB |
| Networking & Connectivity |
| LAN |
Realtek GbE LAN chip (1000 Mbit/100 Mbit) |
| Audio & Microphone |
| Audio |
Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
| Ports |
| Slots |
PCI CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2) M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) |
| Internal I/O Ports |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
| External I/O Ports |
1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x DisplayPort 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| USB |
CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Physical Specification |
| Form Factor |
Micro ATX Form Factor; 24.4cm x 24.4cm |
| Warranty Information |
| Warranty |
03 Years |

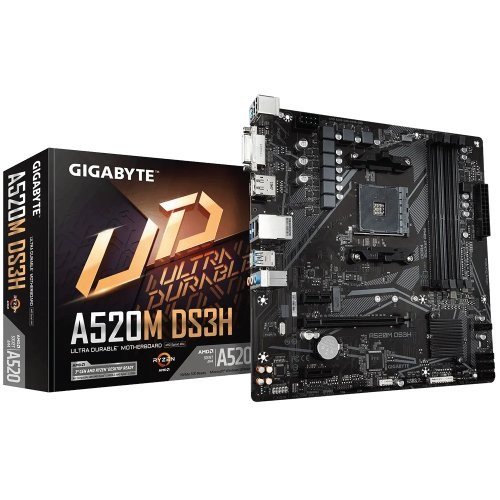

Gigabyte A520M DS3H Ultra Durable AMD AM4 ATX Motherboard
The Gigabyte A520M DS3H Ultra Durable AMD AM4 ATX Motherboard is a reliable and performance-focused solution designed for modern AMD Ryzen users who want stability, efficiency, and long-term durability. Built on the AMD A520 chipset, this motherboard supports AMD Ryzen 3000, 4000 G-Series, and 5000 Series processors, making it an excellent choice for everyday computing, office productivity, content creation, and entry-level gaming builds. Gigabyte’s renowned Ultra Durable technology ensures high-quality components, solid capacitors, and enhanced PCB protection for extended lifespan and consistent performance. This motherboard features dual-channel DDR4 memory support, allowing smooth multitasking and responsive system performance. With an M.2 slot for NVMe SSDs and multiple SATA ports, users can enjoy faster boot times and flexible storage expansion. The advanced thermal design, including smart fan control and optimized power delivery, helps maintain stable temperatures even under heavy workloads. Integrated Realtek audio delivers clear and immersive sound, while high-speed USB ports ensure seamless connectivity with modern peripherals. Designed with user convenience in mind, the Gigabyte A520M DS3H offers a clean and practical layout, easy BIOS navigation, and strong compatibility with a wide range of components. Whether you are building a cost-effective Ryzen PC or upgrading an existing system, this motherboard delivers a balanced mix of performance, durability, and value—making it a smart foundation for a dependable AMD-based setup.
Advanced Key Features / Special Benefits / Buying Guideline of Gigabyte A520M DS3H Ultra Durable AMD AM4 ATX Motherboard
This section highlights why the Gigabyte A520M DS3H is a practical and future-ready choice for AMD users, covering performance, durability, and buying considerations.
- Supports AMD Ryzen 3000, 4000 G-Series, and 5000 Series processors
- Ultra Durable components for long-term reliability
- Dual-channel DDR4 memory support for smoother multitasking
- M.2 NVMe slot for high-speed storage performance
- Smart Fan 5 technology for efficient thermal management
- High-quality onboard audio for immersive sound output
- Multiple USB ports for modern device connectivity
- Ideal for budget to mid-range Ryzen PC builds
- Suitable for office work, home use, and light gaming
Choose this motherboard if you want stability, upgrade flexibility, and trusted Gigabyte quality.
Gigabyte is globally known for producing dependable and high-performance hardware, and Gigabyte AMD Motherboard fits perfectly into their lineup of Top Motherboard Brands. If you are exploring a reliable Motherboard for your next AMD build, this option is worth strong consideration—available now at Tech Valley.
