| Basic Information |
| Supported CPU | Intel Core Ultra Processors (Series 2) |
| Chipset | Intel Z890 Chipset |
| BIOS | 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | E-ATX Form Factor; 30.5cm x 28.5cm |
| Audio | ESS ES9260 CODEC (rear panel audio)
- High Definition Audio
- 2-channel
Realtek ALC897 CODEC (front panel audio) |
| Expansion Slots |
| PCI | CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
* The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD.
If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| M.2 Socket | CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2L_SB)
- 4 x SATA 6Gb/s connectors (SATA3 4~7)
Chipset+ASMedia® ASM1164 chip:
- 4 x SATA 6Gb/s connectors (SATA3 0~3) |
| Memory |
| Type | DDR5 |
| Slots | 4 x DIMM |
| Supported Memory | Support for DDR5 9500(O.C)/ 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Support CUDIMM memory module |
| Maximum Memory | 256GB |
| Graphics |
| Graphics | Integrated Graphics Processor+Intel® Thunderbolt 5 Controller:
- 2 x Intel Thunderbolt 5 connectors (USB4 USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 7680x4320@60 Hz (single display output)
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x Front Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs
When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output).
When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).
* Support for DisplayPort 2.1 version and HDCP 2.3
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU or graphics card support.)
Support for up to triple-display at the same time
|
| Connector & Ports |
| HDMI | 1 x HDMI |
| USB (s) | Chipset+Intel® Thunderbolt™ 5 Controller:
- 2 x Intel® Thunderbolt™ 5 (USB Type-C®) ports on the back panel
*Support up to 80Gbps with Thunderbolt devices
*Support up to 40Gbps with USB4 devices
*Support up to 20Gbps with USB 3.2 devices
CPU:
- 1 x USB4® USB Type-C® port onboard
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 2 x USB 3.2 Gen 1 ports on the back panel
Chipset+USB 3.2 Gen 2 Hub:
- 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers |
| LAN Port (s) | 2 x Marvell AQtion AQC113C 10GbE LAN chips
(10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Intel Wi-Fi 7 BE200
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 320MHz wireless standard |
| Supported Storage | - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
- 4 x SATA 6Gb/s connectors |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Audio | 2 x audio jacks |
| Internal I/O Ports | 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
8 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port)
2 x USB Type-C® headers, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x power button
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers
1 x noise detection header
Back Panel Connectors
1 x DisplayPort In port
1 x HDMI port (Note)
2 x audio jacks
2 x Intel® Thunderbolt 5 connectors (USB Type-C® ports)
2 x USB 3.2 Gen 1 ports
6 x USB 3.2 Gen 2 Type-A ports (red)
2 x antenna connectors (2T2R)
2 x RJ-45 ports
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| Others |
| Special Features | Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup |
| Bundled Software | Norton Internet Security (OEM version)
LAN bandwidth management software |
| Warranty Information |
| Manufacturing Warranty | 3 Year Warranty |

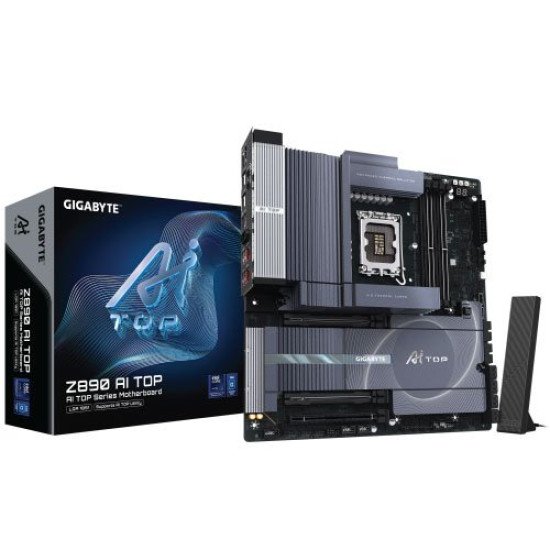

Gigabyte Z890 AI TOP WIFI7 LGA 1851 EATX Motherboard
The Gigabyte Z890 AI TOP WIFI7 LGA 1851 EATX Motherboard is a state-of-the-art motherboard engineered for high-performance computing, gaming enthusiasts, and professional creators. Designed with the latest LGA 1851 socket, it supports next-generation Intel processors, delivering unmatched processing power and efficiency for demanding tasks. Built on the EATX form factor, this motherboard ensures enhanced stability, superior heat dissipation, and ample space for high-end components, including multiple graphics cards and large RAM modules. Equipped with AI-enhanced features, the Z890 AI TOP optimises system performance, power delivery, and cooling profiles automatically, ensuring maximum efficiency and reliability during intensive workloads. The integrated WIFI7 module provides ultra-fast, low-latency wireless connectivity, enabling seamless streaming, gaming, and data transfer. Its robust power delivery system, premium capacitors, and reinforced PCIe slots guarantee long-term durability and support for overclocking, allowing enthusiasts to push their systems to the limit.
Connectivity is comprehensive, with multiple USB 3.2 Gen2x2 ports, Thunderbolt 4 support, 10GbE LAN, and high-fidelity audio, offering a complete ecosystem for both productivity and entertainment. The motherboard also features advanced thermal solutions, including extended heatsinks, heat pipes, and hybrid fan headers, ensuring consistent performance even under heavy loads. In addition, the Gigabyte Z890 AI TOP supports DDR5 memory for faster bandwidth, enhanced multitasking, and improved overall system responsiveness. Its extensive BIOS customisation and AI-assisted optimisation make it suitable for both beginner builders and experienced overclockers, providing a seamless and powerful user experience. Whether you are building a cutting-edge gaming rig, a creative workstation, or a high-performance desktop, the Gigabyte Z890 AI TOP WIFI7 LGA 1851 EATX Motherboard is designed to meet the demands of modern computing with reliability, speed, and innovation.
Buying Guideline of Gigabyte Z890 AI TOP WIFI7 LGA 1851 EATX Motherboard
Choosing the right motherboard is crucial for building a high-performance PC. The Gigabyte Z890 AI TOP WIFI7 LGA 1851 EATX Motherboard offers advanced features, but knowing its specifications and compatibility ensures you get the most out of your system. Here’s a guide to help you make an informed decision before purchase:
-
Processor Compatibility: Supports Intel LGA 1851 socket CPUs; check the processor generation for compatibility.
-
Form Factor: EATX design; ensure your PC case supports extended ATX motherboards.
-
Memory Support: Supports DDR5 RAM; verify maximum capacity and speed for your workload.
-
Expansion Slots: Multiple PCIe slots for graphics cards and additional components; check spacing for large GPUs.
-
Connectivity: Includes USB 3.2 Gen2x2, Thunderbolt 4, 10GbE LAN, and WIFI7 for ultra-fast wired and wireless connections.
-
Power Delivery & Cooling: High-quality VRMs and heatsinks; important for overclocking and stable performance.
-
BIOS & Software Features: User-friendly BIOS with AI-assisted optimization for system tuning.
-
Audio & Multimedia: High-definition audio codecs and ports for immersive multimedia experience.
Before finalizing your purchase, ensure your case, power supply, and other components are compatible with this EATX motherboard. Also, check whether additional features like AI optimization and WIFI7 are required for your setup to maximize the investment.
