| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors | |
| Chipset | AMD X570 | |
| BIOS | 2 x 128 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> Support for DualBIOS™<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0<br> | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek ALC1220-VB codec<br> The back panel line out jack supports DSD audio.<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> Support for S/PDIF Out<br> | |
| Memory Specifications | ||
| Type | Dual Channel DDR4 Memory Technology | |
| Slots | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
| Supported Memory | 3rd Generation AMD Ryzen processors:<br> Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules<br> 2nd Generation AMD Ryzen processors/AMD Ryzen with Radeon Vega Graphics processors: Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules<br> | |
| Max. Memory | 128 GB | |
| Expansion Slots | ||
| PCI | Integrated in the CPU (PCIEX16/PCIEX8):<br> · 3rd Generation AMD Ryzen processors:<br> 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)<br> 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8)<br> · 2nd Generation AMD Ryzen processors:<br> 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)<br> 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8)<br> For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.<br> The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen processors/2nd Generation AMD Ryzen processors, the PCIEX16 slot operates at up to x8 mode.<br> · 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/AMD Ryzen with Radeon Vega Graphics processors:<br> 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16)<br> Integrated in the Chipset (PCIEX4/PCIEX1):<br> 1 x PCI Express x16 slot, supporting PCIe 4.0/3.0 and running at x4 (PCIEX4)<br> For 3rd Generation AMD Ryzen processors only.<br> 2 x PCI Express x1 slots, supporting PCIe 4.0/3.0<br> For 3rd Generation AMD Ryzen™ processors only.<br> | |
| M.2 Socket | Integrated in the CPU (M2A_SOCKET):<br> · 3rd Generation AMD Ryzen™ processors:<br> 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)<br> · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:<br> 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)<br> Integrated in the Chipset (M2B_SOCKET):<br> 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support)<br> * For 3rd Generation AMD Ryzen™ processors only.<br> 6 x SATA 6Gb/s connectors<br> Support for RAID 0, RAID 1, and RAID 10<br> | |
| Graphics | ||
| Max Shared Memory | 16 GB | |
| Graphics | Integrated Graphics Processor:<br> 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> Support for HDMI 2.0 version, HDCP 2.2, and HDR.<br> Note: For 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/AMD Ryzen with Radeon Vega Graphics processors only.<br> | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> Support for HDMI 2.0 version, HDCP 2.2, and HDR. | |
| USB (s) | Integrated in the CPU:<br> 3 x USB 3.2 Gen 1 ports on the back panel<br> 1 x USB 3.2 Gen 2/Gen 1 Type-A port (red) on the back panel<br> For 3rd Generation AMD Ryzen processors only.<br> Chipset:<br> 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header<br> 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support<br> 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel<br> 4 x USB 3.2 Gen 1 ports available through the internal USB headers<br> Chipset+USB 2.0 Hubs:<br> 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)<br> | |
| LAN Port (s) | 1 x RJ-45 port | |
| Supported Storage | Integrated in the CPU (M2A_SOCKET):<br> · 3rd Generation AMD Ryzen processors:<br> 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)<br> · 2nd Generation AMD Ryzen processors/2nd Generation AMD Ryzen with Radeon Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:<br> 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)<br> Integrated in the Chipset (M2B_SOCKET):<br> 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0/3.0 x4/x2 SSD support)<br> For 3rd Generation AMD Ryzen processors only.<br> 6 x SATA 6Gb/s connectors<br> Support for RAID 0, RAID 1, and RAID 10<br> | |
| Audio | 5 x audio jacks | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x 4-pin ATX 12V power connector<br> 1 x CPU fan header<br> 1 x water cooling CPU fan header<br> 3 x system fan headers<br> 2 x system fan/water cooling pump headers<br> 2 x addressable LED strip headers<br> 2 x RGB LED strip headers<br> 1 x CPU cooler LED strip/RGB LED strip header<br> 2 x M.2 Socket 3 connectors<br> 6 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB Type-C™ port, with USB 3.2 Gen 2 support<br> 2 x USB 3.2 Gen 1 headers<br> 2 x USB 2.0/1.1 headers<br> 1 x Clear CMOS jumper<br> 2 x temperature sensor headers<br> 1 x Q-Flash Plus button<br> | |
| Others Information | ||
| Special Features | Support for APP Center<br> Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.<br> @BIOS<br> AutoGreen<br> Cloud Station<br> EasyTune<br> Fast Boot<br> Game Boost<br> ON/OFF Charge<br> RGB Fusion<br> Smart Backup<br> Smart Keyboard<br> Smart Survey<br> System Information Viewer<br> USB Blocker<br> Support for Q-Flash Plus<br> Support for Q-Flash<br> Support for Xpress Install<br> | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years | |

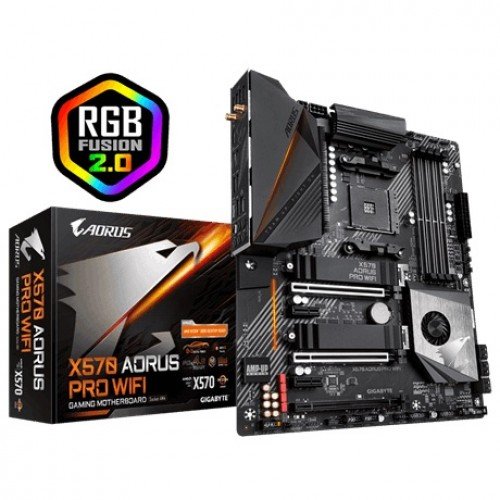

The latest price of Gigabyte X570 Aorus Pro Wifi AMD ATX Motherboard in Bangladesh is 24,700৳ You can buy the Gigabyte X570 Aorus Pro Wifi AMD ATX Motherboard at best price from our Website or visit any of our showrooms.
