| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors<br> L3 cache varies with CPU | |
| Chipset | Intel H610 Express Chipset | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> * To configure 7.1-channel audio, you need to open the audio software and select Device <br>advanced settings > Playback Device to change the default setting first. | |
| Memory Specifications | ||
| Type | DDR4 | |
| Slots | 4 x DDR DIMM sockets | |
| Supported Memory | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ <br>4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / <br>4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / <br>3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory <br>modules<br> Dual channel memory architecture<br> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for Extreme Memory Profile (XMP) memory modules | |
| Max. Memory | up to 128 GB (32 GB single DIMM capacity) of system memory | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16<br> (The PCIEX16 slot conforms to PCI Express 4.0 standard.)<br> 2 x PCI Express x1 slots<br> (The PCIEX1 slots conform to PCI Express 3.0 standard.) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support:<br> 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz<br> 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> * Support for HDMI 2.1 version and HDCP 2.3.<br> ** Support native HDMI 2.1 TMDS compatible ports.<br> 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz<br> * Support for DisplayPort 1.2 version and HDCP 2.3<br> 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz<br> * Support for DisplayPort 1.2 version.<br> Support for up to 4 displays at the same time | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| USB (s) | 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support<br> 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB <br>header)<br> 2 x USB 2.0/1.1 ports on the back panel<br> Chipset+2 USB 2.0 Hubs:<br> 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | CPU:<br> 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)<br> Chipset:<br> 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)<br> 4 x SATA 6Gb/s connectors<br> Support for RAID 0, RAID 1, RAID 5, and RAID 10<br> Intel Optane Memory Ready | |
| Audio | 3 x audio jacks | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 3 x system fan headers<br> 1 x addressable LED strip header<br> 1 x RGB LED strip header<br> 2 x M.2 Socket 3 connectors<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)<br> 1 x serial port header<br> 1 x parallel port header<br> 1 x S/PDIF Out header<br> 1 x Q-Flash Plus button<br> 1 x reset button<br> 1 x reset jumper<br> 1 x Clear CMOS jumper | |
| D-Sub (s) | 1 x D-Sub port | |
| Others Information | ||
| Special Features | Support for APP Center<br> * Available applications in APP Center may vary by motherboard model. Supported functions <br>of each application may also vary depending on motherboard specifications.<br> @BIOS<br> EasyTune<br> Fast Boot<br> Game Boost<br> ON/OFF Charge<br> RGB Fusion<br> Smart Backup<br> System Information Viewer<br> Support for Q-Flash Plus<br> Support for Q-Flash<br> Support for Xpress Install | |
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

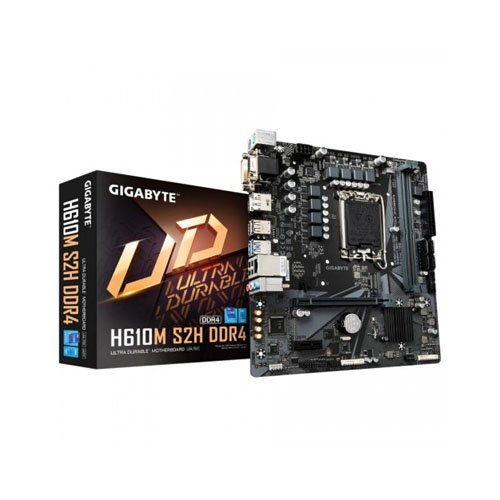

Gigabyte H610M S2H DDR4 12th Gen Micro ATX Motherboard price in bd is highly competitive, offering exceptional performance and reliability for modern PC builds. This motherboard is designed for 12th Generation Intel Core, Pentium Gold, and Celeron processors with LGA1700 socket support, providing robust computing power for both home and office use. Featuring the Intel H610 Express Chipset, it ensures stable performance and full compatibility with the latest technologies. Equipped with four DDR4 DIMM slots, the Gigabyte H610M S2H supports up to 128GB of memory, including high-speed modules up to DDR4 5333(O.C.), ensuring smooth multitasking and gaming experiences. Dual-channel architecture and support for XMP profiles further enhance memory performance. Its Micro ATX form factor (24.4cm x 24.4cm) fits easily into compact builds while offering versatile expansion options, including one PCIe 4.0 x16 slot and two PCIe 3.0 x1 slots. Graphics options include Intel HD Graphics support with HDMI 2.1, DisplayPort 1.2, and D-Sub outputs, supporting up to four displays simultaneously. Storage flexibility is ensured with two M.2 PCIe 4.0 slots and four SATA 6Gb/s connectors, compatible with RAID 0, 1, 5, and 10 configurations. Connectivity includes USB Type-C, multiple USB 3.2/2.0 ports, Realtek 2.5GbE LAN, and high-definition audio with 7.1-channel support. Additional features include RGB Fusion, Fast Boot, Q-Flash Plus, Smart Backup, and APP Center support, making it ideal for gamers, professionals, and enthusiasts. With a solid 3-year manufacturing warranty, the Gigabyte H610M S2H DDR4 12th Gen Micro ATX Motherboard combines performance, durability, and versatility for your next PC build.
The Gigabyte H610M S2H DDR4 12th Gen Micro ATX Motherboard price in BD is affordable, offering a perfect balance of performance and value. Available through Techvalley Distributions Ltd., it ensures quality and reliability for gaming, professional workstations, and home PC builds. With competitive pricing, Bangladeshi users can enjoy the latest 12th Gen Intel support, high-speed DDR4 memory, and versatile connectivity without exceeding budget constraints.
Q1: What CPUs are compatible with Gigabyte H610M S2H DDR4?
A1: It supports 12th Gen Intel Core, Pentium Gold, and Celeron processors with LGA1700 socket.
Q2: How much memory can this motherboard support?
A2: It supports up to 128GB DDR4 RAM with dual-channel architecture and XMP memory profiles
Q3: Does the motherboard support multi-display setups?
A3: Yes, it supports up to 4 displays simultaneously with HDMI 2.1, DisplayPort 1.2, and D-Sub ports.
The latest price of Gigabyte H610M S2H DDR4 12th Gen Micro ATX Motherboard in Bangladesh is 10,700৳ You can buy the Gigabyte H610M S2H DDR4 12th Gen Micro ATX Motherboard at best price from our Website or visit any of our showrooms.
