| Basic Information |
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.) |
| Chipset | Intel H610 Express Chipset |
| BIOS | 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm |
| Audio | Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out |
| Expansion Slots |
| PCI | CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Memory |
| Type | DDR5 |
| Slots | 2 x DIMM sockets |
| Supported Memory | Support for 5600/5200/4800/4400 MT/s memory modules
13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors:
4800/4400 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memor |
| Maximum Memory | Supporting up to 128 GB (64 GB single DIMM capacity) of system memory |
| Graphics |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.) |
| Connector & Ports |
| HDMI | 1 x HDMI port |
| Display Port (s) | 1 x DisplayPort |
| USB (s) | Chipset:
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Supported Storage | Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support)
- 2 x SATA 6Gb/s connectors |
| Internal I/O Ports | Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Clear CMOS jumper
Back Panel Connectors
1 x HDMI port
1 x DisplayPort
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| Others |
| Special Features | iTE I/O Controller Chip |
| Bundled Software | Norton Internet Security (OEM version)
LAN bandwidth management software |
| Warranty Information |
| Manufacturing Warranty | 3 years Warranty |

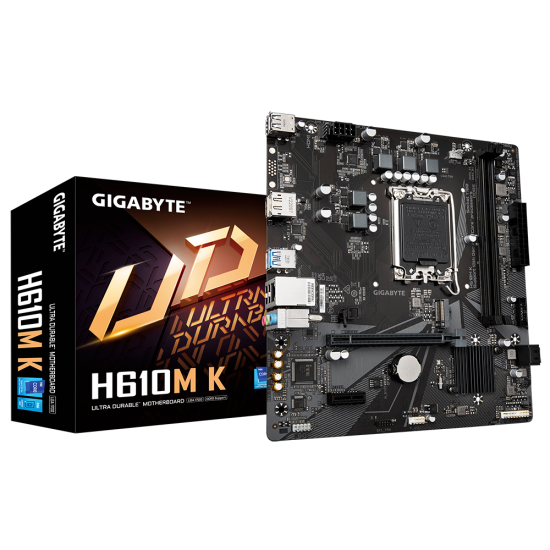

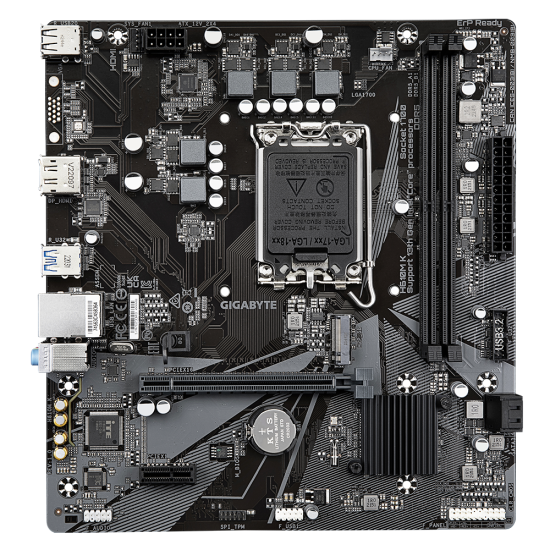

GIGABYTE H610M K DDR5 Micro ATX Motherboard
The GIGABYTE H610M K DDR5 Micro ATX Motherboard is a reliable and performance-oriented motherboard designed for Intel 12th and 13th-generation processors, offering a solid foundation for both casual and enthusiast PC builds. With its compact Micro ATX form factor, this motherboard is ideal for users who want a feature-rich motherboard without occupying excessive space inside their cases. It supports DDR5 memory, ensuring high-speed performance and enhanced efficiency for multitasking, gaming, and productivity applications. Equipped with multiple PCIe slots, including PCIe 4.0, the H610M K DDR5 allows seamless installation of modern graphics cards and expansion cards, making it a future-ready option for gamers and content creators. Storage options are versatile, with M.2 and SATA ports enabling high-speed NVMe SSDs and traditional HDDs, providing flexibility for various storage configurations. The motherboard also features a robust power delivery system and efficient cooling mechanisms to maintain stable performance under heavy workloads.
Connectivity is another strong point of the H610M K DDR5. It comes with high-speed USB ports, HDMI and DisplayPort outputs, and audio jacks, supporting a complete range of peripherals and multi-monitor setups. Networking capabilities include Gigabit Ethernet for stable wired connections, making it suitable for online gaming and high-speed data transfers. Its user-friendly BIOS and intuitive design make installation and configuration straightforward, whether you are a beginner or an experienced builder. Overall, the GIGABYTE H610M K DDR5 Micro ATX Motherboard combines performance, reliability, and advanced features in a compact form factor, making it an excellent choice for building a modern desktop PC that balances power and efficiency. Whether your focus is gaming, professional work, or general computing, this motherboard provides the essential features needed for a stable and responsive system.
Advanced Key Features of GIGABYTE H610M K DDR5 Micro ATX Motherboard
The GIGABYTE H610M K DDR5 Micro ATX Motherboard is designed to deliver high performance, reliability, and future-ready technology for modern desktop builds. It comes packed with features that ensure smooth computing, faster data transfers, and excellent connectivity options, making it suitable for gaming, productivity, and general use. Here are the standout features that make this motherboard a compelling choice:
-
DDR5 Memory Support: Enjoy ultra-fast data transfer rates and improved efficiency with DDR5 memory support, enhancing multitasking and overall system performance.
-
PCIe 4.0 Ready: Equipped with PCIe 4.0 slots for modern graphics cards and expansion devices, ensuring better performance and future-proofing your system.
-
M.2 & SATA Ports: Multiple storage options with M.2 and SATA ports allow for high-speed NVMe SSDs and traditional HDDs, offering flexible storage configurations.
-
Comprehensive Connectivity: USB 3.2 Gen1, HDMI, DisplayPort, and audio jacks provide a wide range of connectivity for peripherals and multi-monitor setups.
-
Gigabit Ethernet: Reliable wired internet connectivity for stable online gaming, streaming, and data transfer.
-
Efficient Cooling & Power Delivery: Optimized layout and thermal solutions keep the motherboard cool while delivering stable power to components under heavy workloads.
-
Compact Micro ATX Form Factor: Ideal for building high-performance PCs in smaller cases without sacrificing essential features.
-
User-Friendly BIOS: Easy setup and configuration, whether you are a beginner or an experienced PC builder.
For those seeking a similar high-quality option, consider the Gigabyte A520M DS3H Ultra Durable AMD AM4 ATX Motherboard, which offers excellent compatibility and performance for AMD processors. Both products belong to the Component, Motherboard category and are available through Tech Valley, ensuring trusted quality and reliable support for your PC building needs.
