| Basic Information | ||
| Supported CPU | Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package<br> * For 7th Generation Intel® Core™ processors support need to update the latest BIOS.<br> L3 cache varies with CPU | |
| Chipset | Intel® H110 Express Chipset | |
| BIOS | 2 x 64 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> Support for DualBIOS™<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0<br> | |
| Form Factor | Micro ATX Form Factor; 22.6cm x 17.4cm | |
| Memory Specifications | ||
| Type | Dual channel DDR4 memory architecture | |
| Slots | 2 x DIMM | |
| Supported Memory | Support for DDR4 2400/2133 MHz memory modules<br> Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)<br> Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules<br> | |
| Max. Memory | 32 GB | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16<br> (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)<br> 2 x PCI Express x1 slots<br> (The PCI Express x1 slots conform to PCI Express 2.0 standard.)<br> | |
| Graphics | ||
| Max Shared Memory | 1024 MB | |
| Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz | |
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| USB (s) | Chipset:<br> 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)<br> 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)<br> | |
| LAN Port (s) | Realtek® GbE LAN chip (10/100/1000 Mbit) | |
| Supported Storage | 4 x SATA 6Gb/s connectors | |
| Audio | Realtek® ALC887 codec<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.<br> Support for S/PDIF Out<br> | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 4-pin ATX 12V power connector<br> 4 x SATA 6Gb/s connectors<br> 1 x CPU fan header<br> 1 x system fan header<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x S/PDIF Out header<br> 1 x USB 3.0/2.0 header<br> 2 x USB 2.0/1.1 headers<br> 1 x Clear CMOS jumper<br> | |
| D-Sub (s) | 1 x D-Sub | |
| Warranty Information | ||
| Manufacturing Warranty | 03 Years | |

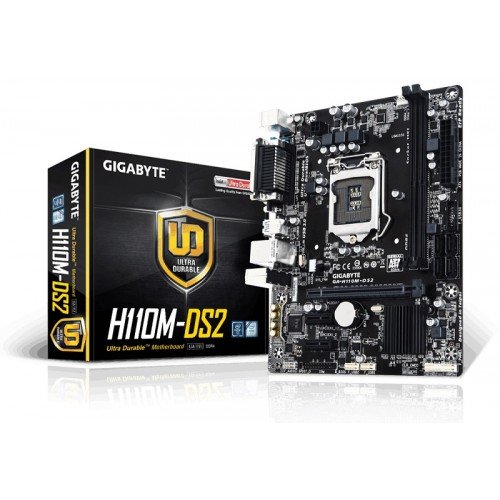

The Gigabyte GA-H110M-DS2 Micro ATX Motherboard is a dependable and cost-effective solution designed for users who want stable performance, essential features, and long-term reliability. Built on the Intel H110 chipset, this motherboard supports Intel 6th and 7th Generation Core processors (LGA 1151), making it an ideal choice for home users, office systems, and entry-level PC builds. Its Micro ATX form factor allows it to fit easily into compact cases while still offering all the necessary connectivity options for everyday computing. Gigabyte’s renowned Ultra Durable design ensures enhanced component protection, including solid capacitors, high-quality chokes, and anti-surge protection to safeguard your system from electrical fluctuations. The GA-H110M-DS2 supports DDR4 memory, delivering improved speed, efficiency, and multitasking capability compared to older DDR3 platforms. With multiple USB ports, SATA connectors for storage expansion, and PCIe support, this motherboard provides flexibility for future upgrades. The board also features high-quality onboard audio for immersive sound output and integrated LAN for stable, fast internet connectivity. Whether you’re assembling a reliable office PC, a student workstation, or a basic multimedia system, the Gigabyte GA-H110M-DS2 offers a balanced mix of performance, durability, and value. Its straightforward BIOS interface makes system configuration easy, even for first-time builders. Overall, this motherboard is a practical and trusted foundation for a stable Intel-based PC setup.
Advanced Key Features of Gigabyte GA-H110M-DS2 Micro ATX Motherboard
The Gigabyte GA-H110M-DS2 is designed to deliver consistent performance, long-term durability, and essential features for daily computing needs. It’s a smart choice for users seeking reliability without unnecessary complexity
If you are looking to upgrade or build a reliable system, explore our collection of Premium Motherboards such as designed to meet various performance needs. You can find this product and many more options in our dedicated Gygabite Intel Motherboard category. Shop with confidence and enjoy genuine products and trusted service from Tech Valley.
The latest price of Gigabyte GA-H110M-DS2 Micro ATX Motherboard in Bangladesh is 9,300৳ You can buy the Gigabyte GA-H110M-DS2 Micro ATX Motherboard at best price from our Website or visit any of our showrooms.
