| Basic Information | ||
| Supported CPU | 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors<br> 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / <br>Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors | |
| Chipset | Intel B560 Express Chipset | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel | |
| Memory Specifications | ||
| Type | Dual-channel memory architecture | |
| Slots | 4 x DDR4 DIMM | |
| Supported Memory | 11th Generation Intel Core i9/i7/i5 processors:<br> Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ <br>4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / <br>4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / <br>3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / <br>2133 MHz<br> 10th Generation Intel Core i9/i7 processors:<br> Support for DDR4 2933/2666/2400/2133 MHz memory modules<br> 10th Generation Intel Core i5/i3/Pentium/Celeron processors:<br> Support for DDR4 2666/2400/2133 MHz memory modules<br> 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system <br>memory<br> Dual-channel memory architecture<br> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for Extreme Memory Profile (XMP) memory modules | |
| Max. Memory | 128 GB (32 GB single DIMM capacity) | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16<br> (The PCIEX16 slot conforms to PCI Express 4.0 standard.) (Note)<br> 2 x PCI Express x1 slots<br> (The PCIEX1 slot conforms to PCI Express 3.0 standard.) | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note)<br> Chipset:<br> 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support:<br> 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz<br> * Support for DisplayPort 1.2 version and HDCP 2.3<br> * When the D-Sub port and DisplayPort are connected at the same time, images will output <br>from the DisplayPort only.<br> 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz<br> * Support for HDMI 1.4 version and HDCP 2.3. | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz | |
| USB (s) | Chipset:<br> 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support<br> 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)<br> 4 x USB 2.0/1.1 ports available through the internal USB headers<br> Chipset+USB 2.0 Hub:<br> 2 x USB 2.0/1.1 ports on the back panel | |
| LAN Port (s) | Realtek GbE LAN chip (1000/100 Mbit) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) <br>(M2P_CPU) (Note)<br> Chipset:<br> 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB)<br> 6 x SATA 6Gb/s connectors<br> Intel Optane Memory Ready | |
| Audio | 3 x audio jacks | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 3 x system fan headers<br> 1 x addressable LED strip header<br> 1 x RGB LED strip header<br> 6 x SATA 6Gb/s connectors<br> 2 x M.2 Socket 3 connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x Clear CMOS jumper<br> 1 x Q-Flash Plus button | |
| D-Sub (s) | Yes | |
| Others Information | ||
| Special Features | Support for APP Center<br> @BIOS<br> EasyTune<br> Fast Boot<br> Game Boost<br> ON/OFF Charge<br> RGB Fusion<br> Smart Backup<br> System Information Viewer<br> Support for Q-Flash Plus<br> Support for Q-Flash<br> Support for Xpress Install | |
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

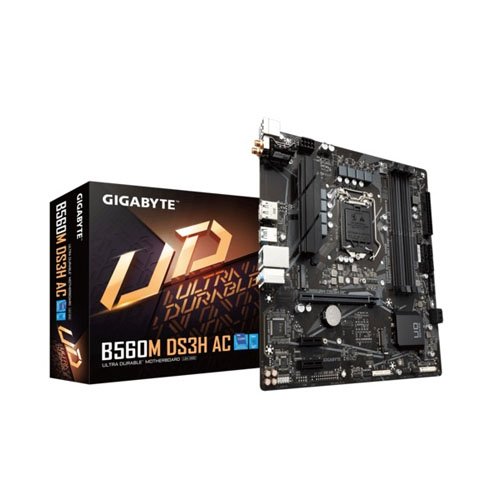

The Gigabyte B560M DS3H AC Intel 10th and 11th Gen Micro ATX Motherboard is a perfect combination of performance, reliability, and cutting-edge technology for both casual users and professional PC builders. Designed to support Intel 10th and 11th Generation processors, this motherboard ensures fast and stable performance for gaming, multimedia, and heavy multitasking. Its Micro ATX form factor makes it ideal for compact builds without compromising functionality. Equipped with high-quality components, it features ultra-durable capacitors, advanced thermal solutions, and reinforced PCIe slots to deliver long-lasting reliability. Connectivity is seamless with integrated Wi-Fi AC, multiple USB ports, and high-speed M.2 slots for NVMe SSDs. The board also supports DDR4 memory with enhanced speeds, allowing users to maximize system performance. With a user-friendly BIOS interface and RGB lighting customization, building and personalizing your PC is easier than ever. The Gigabyte B560M DS3H AC motherboard is a future-proof choice that balances affordability, efficiency, and power, making it a top pick for gamers, content creators, and tech enthusiasts alike.
Advanced Key Features of Gigabyte B560M DS3H AC Intel 10th and 11th Gen Micro ATX Motherboard
This motherboard combines advanced features, user-friendly design, and exceptional durability, ensuring a seamless computing experience. Here’s why it stands out:
Choosing the right motherboard is essential for your system’s performance. This Gigabyte Intel Motherboard is perfect for those seeking the High-Performance 10th Gen and exploring options in the 10th Gen Motherboard category. With top-tier features and exceptional build quality, the Gigabyte B560M DS3H AC is available now at Tech Valley, ensuring you get genuine products and excellent support.
The latest price of Gigabyte B560M DS3H AC Intel 10th and 11th Gen Micro ATX Motherboard in Bangladesh is 13,500৳ You can buy the Gigabyte B560M DS3H AC Intel 10th and 11th Gen Micro ATX Motherboard at best price from our Website or visit any of our showrooms.
