| Basic Information |
| Supported CPU | Intel Core Ultra Processors
L3 cache |
| Chipset | Intel B860 Express Chipset |
| BIOS | 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Audio | Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel |
| Expansion Slots |
| PCI | CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| M.2 Socket | CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB) |
| Memory |
| Type | DDR5 |
| Slots | 4 x DIMM |
| Supported Memory | Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules |
| Maximum Memory | Up to 256 GB (64 GB single DIMM capacity) |
| Graphics |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version.(Graphics specifications may vary depending on CPU support.)
Support for up to quad-display at the same time |
| Connector & Ports |
| HDMI | 2 x HDMI |
| Display Port (s) | 1 x DisplayPort |
| USB (s) | CPU:
- 1 x USB4 USB Type-C port on the back panel
Chipset:
- 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Intel Wi-Fi 6E AX211 (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.) |
| Supported Storage | CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB)
- 4 x SATA 6Gb/s connectors |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Audio | 1 x front panel audio header
2 x audio jacks |
| Internal I/O Ports | 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port*
1 x power button
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Back Panel Connectors:
4 x USB 2.0/1.1 ports
4 x USB 3.2 Gen 1 ports
1 x DisplayPort*
1 x USB4® USB Type-C® port (DisplayPort*)
1 x HDMI port*
1 x RJ-45 port
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| Others |
| Special Features | Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup |
| Bundled Software | Norton Internet Security (OEM version)
LAN bandwidth management software |
| Warranty Information |
| Manufacturing Warranty | 3 Year Warranty |

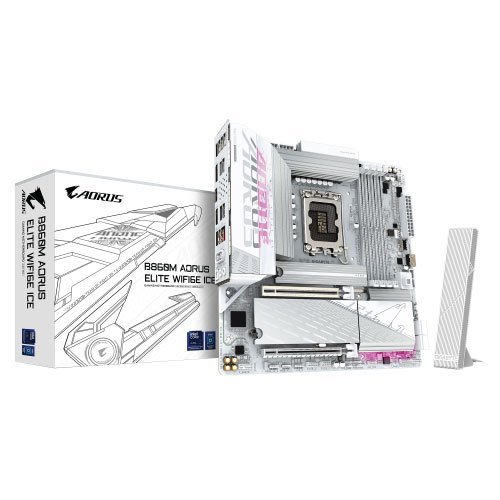

GIGABYTE B860M AORUS ELITE WIFI6E ICE LGA1851 Micro ATX Motherboard
The GIGABYTE B860M AORUS ELITE WIFI6E ICE LGA1851 Micro ATX Motherboard is a high-performance motherboard designed for gamers, content creators, and PC enthusiasts seeking reliability, speed, and next-generation connectivity. Built on the Intel B860 chipset, it fully supports Intel Core Ultra Processors on the LGA1851 socket, ensuring seamless compatibility and excellent processing performance for demanding tasks. Its Micro ATX form factor (24.4cm x 24.4cm) strikes a perfect balance between compact design and expandability, allowing integration into mid-sized gaming cases without compromising features. Equipped with Wi-Fi 6E and 2.5GbE LAN, the motherboard delivers ultra-fast internet connectivity for gaming, streaming, and cloud-based applications. The board supports DDR5 memory with four DIMM slots, accommodating up to 256GB of system memory and ensuring blazing-fast data access speeds for multitasking and intensive applications. Users can also take advantage of Extreme Memory Profile (XMP) support for optimised memory performance.
For storage, the B860M AORUS ELITE provides multiple M.2 PCIe 4.0 x4 connectors and SATA 6Gb/s ports, allowing high-speed SSDs and traditional drives to be used simultaneously. The motherboard supports RAID 0, 1, 5, and 10, giving users flexibility for data redundancy and performance enhancement. Its PCIe 5.0 x16 slot ensures compatibility with the latest graphics cards, while additional PCIe slots allow expansion for network cards, sound cards, or NVMe storage. The motherboard features premium Realtek high-definition audio, multiple USB ports including USB 3.2 Gen 2x2 Type-C, and HDMI and DisplayPort outputs supporting high-resolution displays. Users also benefit from advanced GIGABYTE utilities such as Q-Flash, Smart Backup, and GIGABYTE Control Centre (GCC) for easy BIOS management and system monitoring. With durable components, intelligent thermal solutions, and robust connectivity, the GIGABYTE B860M AORUS ELITE WIFI6E provides a perfect foundation for high-performance PCs, combining efficiency, reliability, and cutting-edge technology for an exceptional computing experience.
Buying Guideline of GIGABYTE B860M AORUS ELITE WIFI6E ICE LGA1851 Micro ATX Motherboard
Choosing the right motherboard is crucial for building a stable, high-performance PC. The GIGABYTE B860M AORUS ELITE WIFI6E offers excellent features, but understanding its specifications and compatibility can help you make the best purchase decision. Here’s a guideline to ensure you get the most out of this motherboard:
Key Points to Consider:
-
CPU Compatibility: Supports Intel Core Ultra Processors on LGA1851 socket. Ensure your processor is compatible.
-
Memory Support: Up to 256GB DDR5 RAM across 4 DIMM slots; check your RAM type and speed (XMP support available).
-
Expansion Slots: One PCIe 5.0 x16 slot for the graphics card and additional PCIe slots for other expansion cards.
-
Storage Options: Multiple M.2 PCIe 4.0 connectors and SATA 6Gb/s ports; verify SSD/HDD compatibility.
-
Connectivity: Integrated Wi-Fi 6E, 2.5GbE LAN, multiple USB ports including USB 3.2 Gen2x2 Type-C for high-speed data transfer.
-
Audio & Display: Realtek high-definition audio, HDMI and DisplayPort outputs; ensure monitor compatibility.
-
BIOS & Utilities: Supports GIGABYTE Q-Flash, Smart Backup, and Control Center (GCC) for easy management.
-
Thermal Design: Premium heatsinks and intelligent thermal solutions for stable performance during heavy workloads.
When considering an upgrade or alternative, you can also check Gigabyte A520M DS3H Ultra Durable AMD AM4 ATX Motherboard, which provides excellent performance for AMD builds. Both are part of the Component category, under Motherboard, and are available at Tech Valley, ensuring quality, warranty, and support for your PC build.
