| System |
| Operating System |
Linux system |
| Audio and Video |
| IP Camera Input |
64 Channel |
| Two-Way Talk |
1-ch, RCA |
| Display |
| Interface |
HDMI1/VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
HDMI2: 4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz |
| Resolution |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Decoding Capacity |
3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1 |
| Recording |
| Resolution |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Video Detection And Alarm |
| Video Detection |
Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Auto Tracking, Object Left Behind, Object Removed, Vehicle Control, Behavior Search, Vehicle Search, People Flow Counting, Crowd Density Monitoring |
| Alarm Input |
16 Channel |
| Relay Output |
4 Channel |
| Playback And Backup |
| Sync Playback |
64 Channel |
| Third Party Support |
| Third Party Support |
ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T |
| Network |
| Interface |
2 RJ45 |
| Ethernet Port |
2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces |
| Maximum User Access |
Remote Users: 128 |
| Storage |
| Internal HDD |
8 SATA interfaces |
| HDD Mode |
Up to 8TB for each HDD |
| eSATA |
1 eSATA interface |
| Auxiliary Interface |
| USB |
Rear panel: 2 x USB2.0, 1 x USB3.0 |
| Power |
| Power Supply |
100 ~ 240 VAC |
| Power Consumption |
≤ 20 W (without HDD) |
| Component Environment |
| Operational Conditions |
-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) |
| Construction |
| Dimensions |
442mm ×531mm×86mm (17.4" × 19.9"×3.4") |
| Net Weight |
≤ 5.13 Kg (11.31 lb ) |
| Warranty |
| Manufacturing Warranty |
2 Year Warranty |

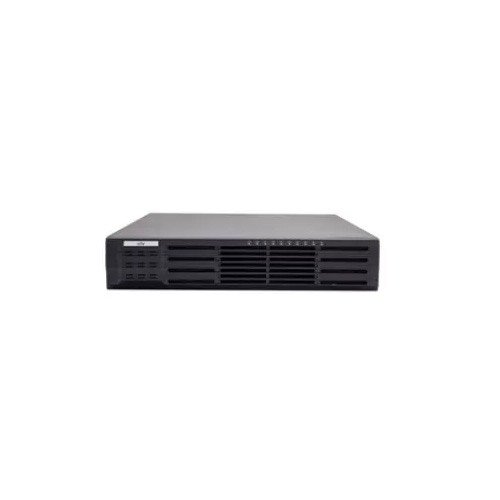

Uniview NVR308-64R 64 Channel 4K 8 HDDs RAID NVR
The Uniview NVR308-64R is a cutting-edge Network Video Recorder (NVR) designed for advanced video surveillance applications, offering a robust and feature-rich solution for large-scale security systems. Operating on a Linux system, this NVR supports an impressive 64-channel IP camera input, making it ideal for extensive surveillance setups. The NVR's video capabilities are exceptional, with a maximum decoding capacity of 3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, and various other configurations. It supports resolutions ranging from 12MP to D1, providing flexibility for diverse surveillance needs. The NVR excels in video detection and alarm functionalities, including features like intrusion detection, cross-line detection, defocus detection, auto tracking, and more. Display flexibility is a key feature, offering HDMI and VGA interfaces with various resolution options, including 4K, to ensure clear and detailed monitoring. Two-way talk functionality enhances communication capabilities, contributing to comprehensive security management. In terms of storage, the NVR supports up to 8 SATA interfaces for internal HDDs, accommodating up to 8TB per HDD. An additional eSATA interface is available for expanded storage options. The playback and backup capabilities support sync playback across all 64 channels, ensuring comprehensive review and analysis of recorded footage. The NVR308-64R is equipped with 16 alarm input channels and 4 relay output channels, further enhancing its integration with security systems. It also supports third-party devices through ONVIF conformance, ensuring compatibility with a wide range of IP cameras and devices. With a durable metal construction, the NVR is designed to withstand operational conditions between -10°C to +55°C, making it suitable for various environments. The user-friendly design includes two USB 2.0 ports and one USB 3.0 port for easy data backup and system maintenance. Backed by a 2-year manufacturing warranty, the Uniview NVR308-64R stands out as a reliable, high-performance solution for businesses and organizations seeking a robust and scalable NVR for their advanced video surveillance needs.
