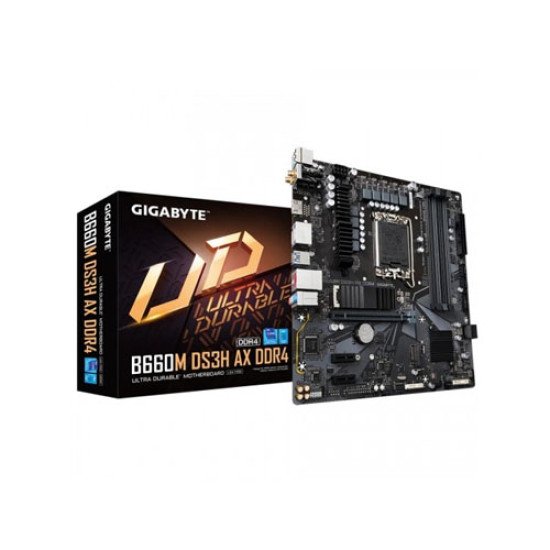

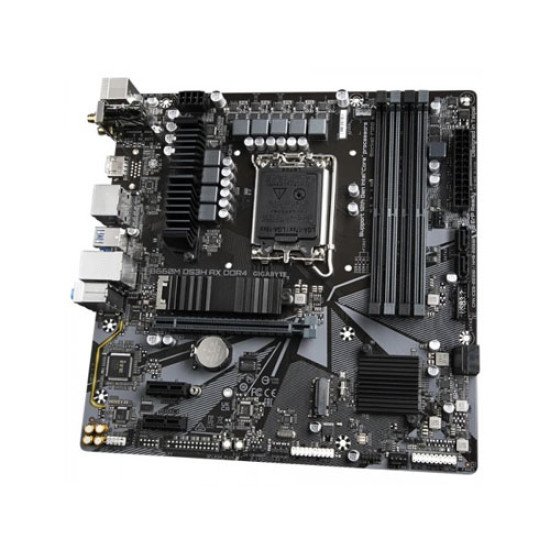

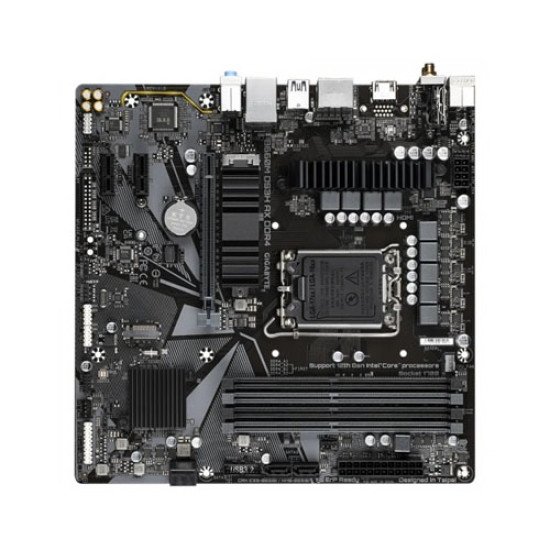

Gigabyte B660M DS3H AX DDR4 12th Gen Micro ATX Motherboard

Name: Gigabyte B660M DS3H AX DDR4 12th Gen Micro ATX Motherboard
Brand: Gigabyte
Price: 16000.00 BDT
Availability: OutOfStock

In Stock

Gigabyte B660M DS3H AX DDR4 12th Gen Micro ATX Motherboard

Stock: In Stock
Brand: Gigabyte
Model: B660M DS3H AX DDR4
MPN: smart

Based on 0 reviews. - Write a review

16,000৳

Ex Tax: 16,000৳

Qty

Buy Now

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Key Features

- LGA1700 socket: Supports 12th Gen Intel Core Series Processors
- Dual Channel Non-ECC Unbuffered DDR4,
- WIFI 6 802.11ax 2T2R & BT5
- Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2

View more details

Basic Information
Supported CPU	LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset	Intel B660 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first.
Memory Specifications
Type	DDR4
Slots	4 x DDR DIMM sockets
Supported Memory	Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Max. Memory	up to 128 GB (32 GB single DIMM capacity) of system memory
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 2 x PCI Express x1 slots (The PCIEX1 slots conform to PCI Express 3.0 standard.)
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version. Support for up to 3 displays at the same time
Connector & Ports
HDMI	1 x HDMI port
USB (s)	Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready
Audio	3 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
Others Information
Special Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Warranty Information
Manufacturing Warranty	3 years

Gigabyte B660M DS3H AX DDR4 12th Gen Micro ATX Motherboard

The Gigabyte B660M DS3H AX DDR4 12th Gen Micro ATX Motherboard is a compact yet powerful motherboard designed for 12th Generation Intel Core processors, Pentium Gold, and Celeron processors utilizing the LGA1700 socket. With a focus on delivering reliable performance in a micro ATX form factor measuring 24.4cm x 24.4cm, this motherboard is an excellent choice for users seeking a balance between space efficiency and powerful functionality. The motherboard supports DDR4 memory with four DIMM slots, accommodating memory speeds ranging from 2133 MHz to an impressive 5333 MHz (when overclocked). The dual-channel memory architecture allows for up to 128 GB of system memory, making it suitable for multitasking, content creation, and gaming. Featuring the Intel B660 Express Chipset and equipped with a 256 Mbit flash BIOS using licensed AMI UEFI technology, the motherboard ensures stable and efficient system operation. It adheres to industry standards such as PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0, providing a seamless user experience. The integrated graphics processor, Intel HD Graphics, offers versatile display options, including an HDMI port and DisplayPort, supporting resolutions up to 4096x2160@60 Hz. Users can connect up to three displays simultaneously, enhancing productivity and gaming experiences. Connectivity options are abundant, with USB Type-C, USB 3.2 Gen 1, and USB 2.0/1.1 ports available on both the back panel and internal headers. The Realtek 2.5GbE LAN chip provides high-speed and reliable network connectivity for smooth online experiences. Storage capabilities include M.2 connectors for PCIe 4.0 x4/x2 SSD support, SATA 6Gb/s connectors, and support for RAID 0, RAID 1, RAID 5, and RAID 10. The motherboard is Intel Optane Memory Ready, offering additional storage acceleration options. Audio is handled by the Realtek Audio CODEC, delivering a high-definition audio experience with support for 2/4/5.1/7.1-channel configurations. Special features include RGB Fusion for customizable lighting, Q-Flash Plus for convenient BIOS updates, and support for various applications through the APP Center.
