| Processor | |
| Supported CPU | LGA1700 Socket: Support For The 14th, 13th, And 12th Generation Intel Core, Pentium Gold And Celeron Processors* L3 Cache Varies With CPU |
| Mainboard | |
| Chipset | Intel® B760 Express Chipset |
| Memory | |
| Memory | Support For DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/S Memory Modules 4 X DDR5 DIMM Sockets Supporting Up To 192 GB (48 GB Single DIMM Capacity) Of System Memory Dual Channel Memory Architecture Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode) Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules Support For Extreme Memory Profile (XMP) Memory Modules (The CPU And Memory Configuration May Affect The Supported Memory Types, Data Rate (Speed), And Number Of DRAM Modules, Please Refer To "Memory Support List" For More Information.) |
| Storage | |
| Storage | CPU: - 1 X M.2 Connector (Socket 3, M Key, Type 2280 PCIe 4.0 X4/X2 SSD Support) (M2A_CPU) Chipset: - 1 X M.2 Connector (Socket 3,M Key, Type 22110/2280 PCIe 4.0 X4/X2 SSD Support) (M2P_SB) - 4 X SATA 6Gb/S Connectors RAID 0, RAID 1, RAID 5, And RAID 10 Support For SATA Storage Devices |
| Graphics | |
| Graphics Chipset | Integrated Graphics Processor-Intel® HD Graphics Support: - 1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz * Support For HDMI 2.1 Version And HDCP 2.3. ** Support For Native HDMI 2.1 TMDS Compatible Ports. - 1 X Front HDMI Port, Supporting A Maximum Resolution Of 1920x1080@30 Hz * Support For HDMI 1.4. - 1 X DisplayPort, Supporting A Maximum Resolution Of 4096x2304@60 Hz * Support For DisplayPort 1.2 Version And HDCP 2.3 (Graphics Specifications May Vary Depending On CPU Support.) |
| Audio & Microphone | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-Channel * You Can Change The Functionality Of An Audio Jack Using The Audio Software. To Configure 7.1-Channel Audio, Access The Audio Software For Audio Settings. Support For S/PDIF Out |
| Networking & Connectivity | |
| Wireless Connectivity | Realtek Wi-Fi 6E RTL8852CE (PCB Rev. 1.0/1.2) - WIFI A, B, G, N, Ac, Ax, Supporting 2.4/5/6 GHz Carrier Frequency Bands - BLUETOOTH 5.3 - Support For 11ax 160MHz Wireless Standard Intel® Wi-Fi 6E AX211 (For PCB Rev. 1.1/1.3) - WIFI A, B, G, N, Ac, Ax, Supporting 2.4/5/6 GHz Carrier Frequency Bands - BLUETOOTH 5.3 - Support For 11ax 160MHz Wireless Standard (Actual Data Rate May Vary Depending On Environment And Equipment.) |
| LAN | Intel 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Ports | |
| I/O Port | ITE I/O Controller Chip |

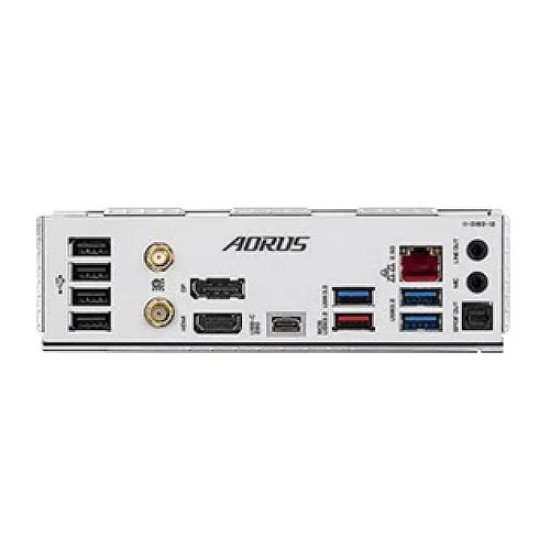

| Connector | 2 X SMA Antenna Connectors (2T2R) 1 X USB Type-C Port, With USB 3.2 Gen 2x2 Support 1 X USB 3.2 Gen 2 Type-A Port (Red) 3 X USB 3.2 Gen 1 Ports 4 X USB 2.0/1.1 Ports 1 X HDMI Port 1 X DisplayPort 1 X RJ-45 Port 1 X Optical S/PDIF Out Connector 2 X Audio Jacks |
| Internal I/O Ports | 1 X 24-Pin ATX Main Power Connector 1 X 8-Pin ATX 12V Power Connector 1 X 4-Pin ATX 12V Power Connector 1 X CPU Fan Header 3 X System Fan Headers 3 X Addressable RGB Gen2 LED Strip Headers 1 X RGB LED Strip Header 2 X M.2 Socket 3 Connectors 4 X SATA 6Gb/S Connectors 1 X Front Panel Header 1 X Front Panel Audio Header 1 X USB Type-C Header, With USB 3.2 Gen 2 Support 1 X USB 3.2 Gen 1 Header 2 X USB 2.0/1.1 Headers 2 X Thunderbolt Add-In Card Connectors 1 X Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 Module Only) 1 X HDMI Port 1 X Q-Flash Plus Button 1 X Reset Button 1 X Reset Jumper 1 X Clear CMOS Jumper |
| USB | Chipset: - 1 X USB Type-C Port On The Back Panel, With USB 3.2 Gen 2x2 Support - 1 X USB Type-C Port With USB 3.2 Gen 2 Support, Available Through The Internal USB Header - 1 X USB 3.2 Gen 2 Type-A Port (Red) On The Back Panel - 1 X USB 3.2 Gen 1 Ports On The Back Panel - 4 X USB 2.0/1.1 Ports Available Through The Internal USB Headers Chipset+USB 3.2 Gen 1 Hub: - 4 X USB 3.2 Gen 1 Ports (2 Ports On The Back Panel, 2 Ports Available Through The Internal USB Header) Chipset+USB 2.0 Hub: - 4 X USB 2.0/1.1 Ports On The Back Panel |
| Technical Info | |
| Supported OS | Support For Windows 11 64-Bit Support For Windows 10 64-Bit |
| BIOS | 1 X 256 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Special Features | |
| Software | Norton Internet Security (OEM Version) LAN Bandwidth Management Software |
| Physical Specification | |
| Expansion Slots | CPU: - 1 X PCI Express X16 Slot, Supporting PCIe 5.0 And Running At X16 (PCIEX16) * The PCIEX16 Slot Can Only Support A Graphics Card Or An NVMe SSD. If Only One Graphics Card Is To Be Installed, Be Sure To Install It In The PCIEX16 Slot. Chipset: - 1 X PCI Express X16 Slot, Supporting PCIe 4.0 And Running At X4 (PCIEX4) |
| Form Factor | 24.4cm X 24.4cm |
| Dimension | 24.4cm X 24.4cm |
| Warranty Information | |
| Warranty | 3 Years |
The latest price of GIGABYTE B760M AORUS ELITE X AX 14th, 13th, And 12th Gen ATX Motherboard in Bangladesh is 28,509৳ You can buy the GIGABYTE B760M AORUS ELITE X AX 14th, 13th, And 12th Gen ATX Motherboard at best price from our Website or visit any of our showrooms.
