| Basic Information | ||
| Supported CPU | 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors<br> 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / <br>Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors | |
| Chipset | Intel B560 Express Chipset | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor; 30.5cm x 22.5cm | |
| Memory Specifications | ||
| Type | DDR4 | |
| Slots | 4 x DIMM | |
| Supported Memory | 11th Generation Intel Core i9/i7/i5 processors:<br> Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / <br>4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / <br>4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) /<br> 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz<br> 10th Generation Intel Core i9/i7 processors:<br> Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules<br> 10th Generation Intel Core i5/ i3/ Pentium/ Celeron processors:<br> Support for DDR4 2666/2400/2133 MHz memory modules<br> Dual channel memory architecture<br> Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode)<br> Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules<br> Support for Extreme Memory Profile (XMP) memory modules | |
| Max. Memory | 128 GB (32 GB single DIMM capacity) | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16)<br> * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to <br>install it in the PCIEX16 slot.<br> (The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note)<br> 1 x PCI Express x16 slot, running at x4 (PCIEX4)<br> 2 x PCI Express x1 slots<br> (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.) | |
| M.2 Socket | CPU:<br> 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note)<br> Chipset:<br> 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/x2 SSD <br>support) (M2A_SB) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support:<br> 1 x D-Sub port, supporting a maximum resolution of 1920 x 1200@60 Hz<br> 1 x DVI-D port, supporting a maximum resolution of 1920 x 1200@60 Hz<br> * The DVI-D port does not support D-Sub connection by adapter.<br> 1 x DisplayPort, supporting a maximum resolution of 4096 x 2304 @60 Hz<br> * Support for DisplayPort 1.2 version and HDCP 2.3<br> * When the D-Sub port and DisplayPort are connected at the same time, images will output <br>from the DisplayPort only.<br> 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz<br> * Support for HDMI 1.4 version and HDCP 2.3.<br> (Graphics specifications may vary depending on CPU support.)<br> Support for up to 3 displays at the same time | |

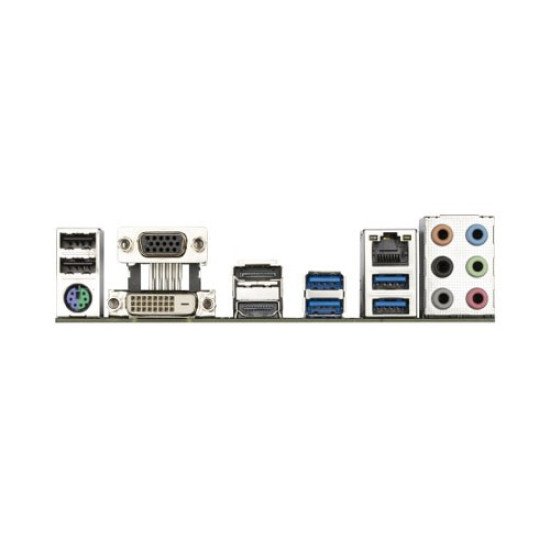

| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz | |
| USB (s) | Chipset:<br> 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)<br> 6 x USB 2.0/ 1.1 ports available through the internal USB headers<br> Chipset + USB 2.0 Hub:<br> 2 x USB 2.0/ 1.1 ports on the back panel | |
| LAN Port (s) | Realtek GbE LAN chip (1000 Mbit/100 Mbit) | |
| Supported Storage | CPU:<br> 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 PCIe 4.0 x4/x2 SSD support) <br>(M2P_CPU)(Note)<br> Chipset:<br> 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/ x2 SSD <br>support) (M2A_SB)<br> 6 x SATA 6Gb/s connectors<br> Intel Optane Memory Ready | |
| Audio | Realtek Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> Support for S/PDIF Out | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 1 x water cooling CPU fan header<br> 3 x system fan headers<br> 1 x addressable LED strip header<br> 1 x RGB LED strip header<br> 2 x M.2 Socket 3 connectors<br> 6 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB 3.2 Gen 1 header<br> 3 x USB 2.0/1.1 headers<br> 1 x S/PDIF Out header<br> 2 x Thunderbolt add-in card connectors<br> 1 x serial port header<br> 1 x parallel port header<br> 1 x Clear CMOS jumper<br> 1 x Q-Flash Plus button | |
| D-Sub (s) | 1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz | |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 @60 Hz | |
| Others Information | ||
| Special Features | Support for APP Center<br> @BIOS<br> Easy Tune<br> Fast Boot<br> Game Boost<br> ON/OFF Charge<br> RGB Fusion<br> Smart Backup<br> System Information Viewer<br> Support for Q-Flash Plus<br> Support for Q-Flash<br> Support for Xpress Install | |
| Warranty Information | ||
| Manufacturing Warranty | 3 year | |

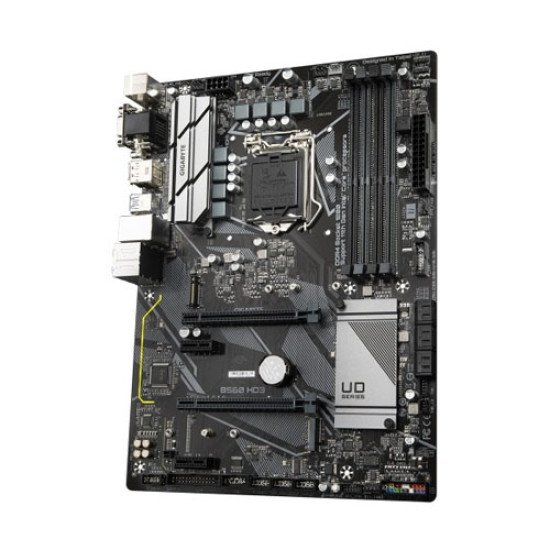

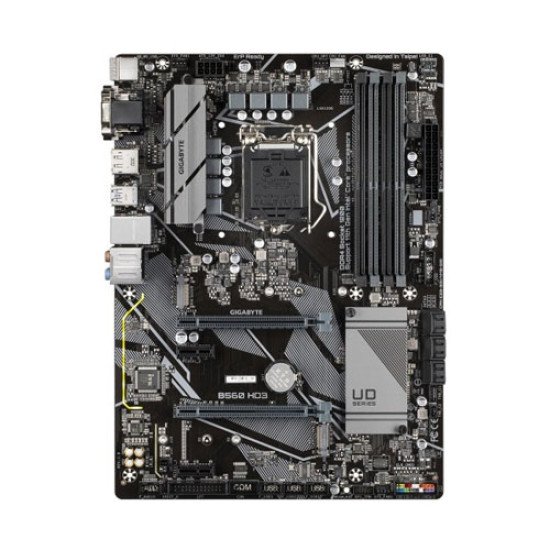

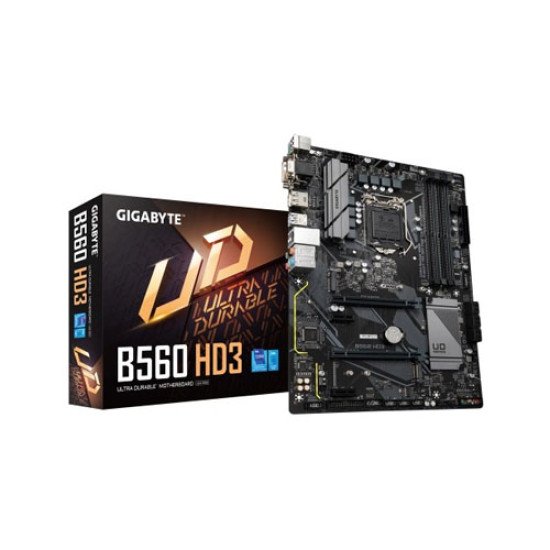

The Gigabyte B560 HD3 Intel 10th and 11th Gen ATX Motherboard is a reliable and performance-oriented solution designed for users who want stability, expandability, and modern features in an ATX form factor. Built with Intel’s B560 chipset, this motherboard fully supports Intel 10th and 11th Generation Core, Pentium Gold, and Celeron processors, making it an excellent choice for both productivity and mid-range gaming PC builds. This motherboard supports dual-channel DDR4 memory with higher memory frequencies, allowing smoother multitasking and improved system responsiveness. With PCIe 4.0 support (when paired with 11th Gen processors), the Gigabyte B560 HD3 ensures faster data transfer speeds for next-generation graphics cards and NVMe SSDs. Multiple M.2 slots with thermal guards help keep storage devices cool and maintain consistent performance during heavy workloads. Gigabyte has focused on durability by using high-quality components, including a robust power delivery design and solid capacitors, ensuring long-term reliability. The board also features Realtek Gigabit LAN for stable wired networking, along with high-definition audio capacitors for clear and immersive sound quality. Multiple USB ports, HDMI and DVI display outputs, and ample expansion slots make this motherboard flexible for various usage scenarios, from office work to content creation. Overall, the Gigabyte B560 HD3 ATX Motherboard is a balanced option for users looking to build a future-ready Intel system without overspending. Its solid build quality, modern connectivity, and compatibility with the latest Intel CPUs make it a smart investment for a dependable desktop PC.
The Gigabyte B560 HD3 is designed to deliver stable performance, future upgrade support, and excellent value. Below are the key features and benefits to help you make an informed buying decision:
If you’re planning a stable build with support for Overclocking 10th Gen Motherboard, this Gigabyte Intel Motherboard offers a solid foundation for performance tuning. It fits perfectly within any 10 th Gen Motherboard category build and ensures excellent compatibility with modern components. For genuine products, competitive pricing, and trusted service, buy from Tech Valley.
The latest price of Gigabyte B560 HD3 Intel 10th and 11th Gen ATX Motherboard in Bangladesh is 14,500৳ You can buy the Gigabyte B560 HD3 Intel 10th and 11th Gen ATX Motherboard at best price from our Website or visit any of our showrooms.
