Specification
| Basic Information |
| Supported CPU | AMD Socket AM5, support for:
AMD Ryzen™ 8000 & 7000 Series Processors |
| Chipset | AMD B650 |
| BIOS | 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 23.0cm x 22.5cm |
| Audio | Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel |
| Expansion Slots |
| PCI | CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Memory |
| Type | DDR5 |
| Slots | 2 x DIMM |
| Supported Memory | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Maximum Memory | up to 96 GB (48 GB single DIMM capacity) |
| Graphics |
| Graphics | Integrated Graphics Processor:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz |
| Connector & Ports |
| HDMI | 1 x HDMI |
| Display Port (s) | 1 x DisplayPort |
| D-Sub (s) | 1 x D-Sub port |
| USB (s) | CPU:
- 2 x USB 3.2 Gen 1 ports on the back panel
- 1 x USB 2.0/1.1 port on the back panel
Chipset:
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers) |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
|
| Supported Storage | CPU:
- 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)
Chipset:
- 4 x SATA 6Gb/s connectors
|
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Audio | 3 x audio jacks |
| Internal I/O Ports | Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x Clear CMOS jumper
Back Panel Connectors
4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x Q-Flash Plus button
2 x USB 3.2 Gen 1 ports
1 x RJ-45 port |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| Others |
| Special Features | Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
|
| Bundled Software | Norton Internet Security (OEM version)
LAN bandwidth management software |
| Warranty Information |
| Manufacturing Warranty | 3 Years |

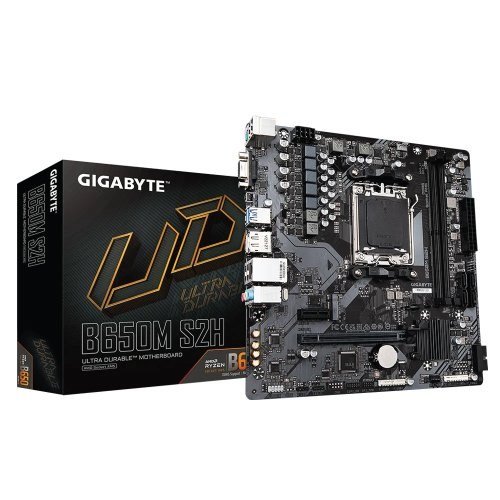

GIGABYTE B650M S2H AM5 Micro-ATX Motherboard
The GIGABYTE B650M S2H AM5 Micro-ATX Motherboard is engineered for users who want a perfect balance of performance, reliability, and modern features in a compact Micro-ATX form factor. Designed to support AMD's latest AM5 socket processors, this motherboard unlocks the potential of next-generation computing while providing robust power delivery and efficient cooling solutions for demanding tasks. It is ideal for gamers, content creators, and PC enthusiasts looking for a future-proof platform without compromising on performance or expandability. With support for DDR5 memory, the B650M S2H enables ultra-fast data transfer rates, allowing smooth multitasking, gaming, and productivity workflows. The PCIe 4.0 slots provide high-speed connectivity for modern graphics cards and expansion devices, ensuring your system stays ready for cutting-edge upgrades. Storage options are abundant with M.2 and SATA ports, allowing the installation of high-speed NVMe SSDs or traditional hard drives, giving users flexibility for storage-intensive applications.
Connectivity is another strong point, offering USB 3.2 Gen1 ports, HDMI, DisplayPort, audio jacks, and a Gigabit Ethernet port, ensuring seamless integration with multiple peripherals, monitors, and networks. The motherboard's layout is optimized for efficient thermal management, keeping components cool and stable during intensive workloads. Additionally, the user-friendly BIOS interface makes setup, tweaking, and system monitoring accessible to both beginners and advanced users. Whether building a high-performance gaming rig, a professional workstation, or a compact yet powerful PC, the GIGABYTE B650M S2H AM5 Micro-ATX Motherboard provides the ideal foundation with modern standards and future-ready features. Its durable construction, advanced features, and expandability options make it a reliable choice for any AM5 platform PC build, ensuring longevity and performance for years to come.
Advanced key features of GIGABYTE B650M S2H AM5 Micro-ATX Motherboard
The GIGABYTE B650M S2H AM5 Micro-ATX Motherboard offers a perfect blend of performance, reliability, and modern connectivity, making it ideal for gaming, content creation, and high-performance computing. Built with the latest AM5 platform, it ensures future-proof compatibility and efficient power delivery for AMD Ryzen processors. Here are its standout features:
-
AM5 Socket Support: Compatible with AMD Ryzen 7000 series processors for cutting-edge performance.
-
DDR5 Memory Support: Supports high-speed DDR5 RAM for faster data transfer and smooth multitasking.
-
PCIe 4.0 Slots: High-speed graphics and expansion card support for next-gen GPUs and SSDs.
-
Multiple Storage Options: Equipped with M.2 slots and SATA ports for NVMe SSDs and traditional storage.
-
Comprehensive Connectivity: Includes USB 3.2 Gen1, HDMI, DisplayPort, Gigabit Ethernet, and audio jacks.
-
Efficient Thermal Design: Optimized layout and heat sinks to maintain system stability under heavy workloads.
-
User-Friendly BIOS: Easy-to-navigate BIOS for system setup, monitoring, and tuning.
-
Durable Construction: High-quality components ensuring longevity and stable performance.
-
Compact Micro-ATX Form Factor: Fits a wide range of cases without compromising on features or expandability.
