| Basic Information | ||
| Supported CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors | |
| Chipset | AMD A520 | |
| BIOS | 1 x 128 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 20.5cm | |
| Memory Specifications | ||
| Type | Dual channel memory architecture | |
| Slots | 2 x DDR4 DIMM | |
| Supported Memory | 3rd Gen AMD Ryzen Processors:<br> Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / <br>3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules<br> 3rd Gen AMD Ryzen with Radeon Graphics processors:<br> Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / <br>3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules | |
| Max. Memory | 64 GB | |
| Expansion Slots | ||
| PCI | CPU:<br> 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16<br> Chipset:<br> 2 x PCI Express x1 slots, supporting PCIe 3.0 | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) | |
| Graphics | ||
| Max Shared Memory | 16 GB | |
| Graphics | Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors:<br> 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz<br> 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz<br> 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| USB (s) | CPU:<br> 4 x USB 3.2 Gen 1 ports on the back panel<br> Chipset:<br> 2 x USB 3.2 Gen 1 ports available through the internal USB header<br> 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB <br>headers) | |
| LAN Port (s) | Realtek GbE LAN chip (1000 Mbit/100 Mbit) | |
| Supported Storage | CPU:<br> 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)<br> Chipset:<br> 4 x SATA 6Gb/s connectors<br> Support for RAID 0, RAID 1, and RAID 10 | |
| Audio | Realtek ALC887 codec<br> High Definition Audio<br> 2/4/5.1/7.1-channel | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 2 x system fan headers<br> 1 x addressable LED strip header<br> 1 x RGB LED strip header<br> 1 x M.2 Socket 3 connector<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x serial port header<br> 1 x speaker header<br> 1 x chassis intrusion header<br> 1 x Clear CMOS jumper | |
| D-Sub (s) | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz | |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz | |
| Others Information | ||
| Special Features | Support for APP Center<br> @BIOS<br> EasyTune<br> Fast Boot<br> Game Boost<br> ON/OFF Charge<br> RGB Fusion<br> Smart Backup<br> System Information Viewer<br> Support for Q-Flash Plus<br> Support for Q-Flash<br> Support for Xpress Install<br> Support for Q-Flash<br> Support for Xpress Install | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years | |

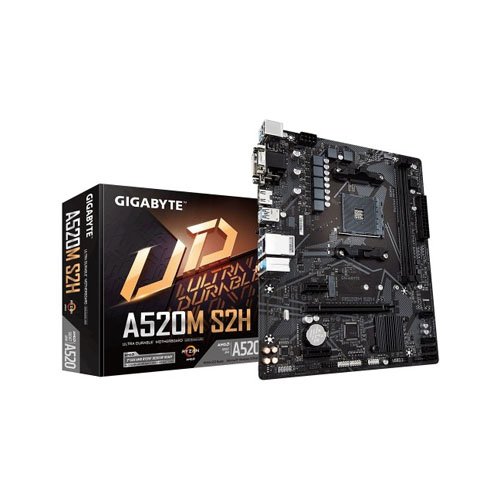

The Gigabyte A520M S2H Ultra Durable AMD AM4 ATX Motherboard is a reliable and efficient solution for users looking to build a stable and modern AMD-based PC. Powered by the AMD A520 chipset, this motherboard supports AMD Ryzen 5000 Series, Ryzen 4000G Series, and 3rd Generation Ryzen processors, making it an excellent choice for everyday computing, office work, multimedia, and entry-level gaming systems. Built with Gigabyte Ultra Durable technology, the A520M S2H ensures long-lasting performance and enhanced component protection. Its 4+3 phases pure digital VRM design delivers stable and efficient power to the CPU, helping maintain smooth performance even under heavy workloads while improving overall system durability. For high-speed storage, the motherboard features an ultra-fast NVMe PCIe 3.0 x4 M.2 slot, enabling faster boot times, quicker data transfers, and improved system responsiveness when paired with modern SSDs. Multiple SATA ports are also available for additional storage expansion. Thermal management is handled efficiently with Smart Fan 5 technology, which includes multiple temperature sensors and hybrid fan headers. This intelligent cooling system automatically adjusts fan speeds to keep components cool while maintaining quiet operation, ensuring system stability during extended use. The Gigabyte A520M S2H also offers versatile connectivity options, including HDMI, DVI-D, and D-Sub display outputs for flexible monitor support. Expansion slots allow users to install dedicated graphics cards and other add-on components with ease. Additionally, Gigabit LAN provides reliable and fast network connectivity for work and entertainment. Overall, the Gigabyte A520M S2H Ultra Durable AMD AM4 ATX Motherboard delivers a strong balance of performance, stability, and essential features, making it a dependable foundation for modern AMD PC builds.
Features of Gigabyte A520M S2H Ultra Durable AMD AM4 ATX Motherboard
A high-quality motherboard ensures smooth performance and long-term system stability for professional users. Explore the Best Gigabyte Motherboard for Professionals built to support demanding workloads with confidence. Browse our full Motherboard category to compare features, chipsets, and compatibility options. Shop original and reliable PC components from Tech Velley, your trusted technology partner.
The latest price of Gigabyte A520M S2H Ultra Durable AMD AM4 ATX Motherboard in Bangladesh is 9,000৳ You can buy the Gigabyte A520M S2H Ultra Durable AMD AM4 ATX Motherboard at best price from our Website or visit any of our showrooms.
