| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for:<br> AMD Ryzen 9000 Series Processors/<br> AMD Ryzen 8000 Series Processors/<br> AMD Ryzen 7000 Series Processors<br> (Go to GIGABYTE's website for the latest CPU support list.) | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Operating System | Support for Windows 11 64-bit<br> Support for Windows 10 64-bit | |
| Special Feature | Support for GIGABYTE Control Center (GCC)<br> * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.<br> Support for Q-Flash<br> Support for Q-Flash Plus<br> Support for Smart Backup | |
| Others | H/W Monitoring: <br> Voltage detection<br> Temperature detection<br> Fan speed detection<br> Water cooling flow rate detection<br> Fan fail warning<br> Fan speed control<br> * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
| Chipset | ||
| Chipset | AMD B840 | |
| Motherboard | ||
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5. | |

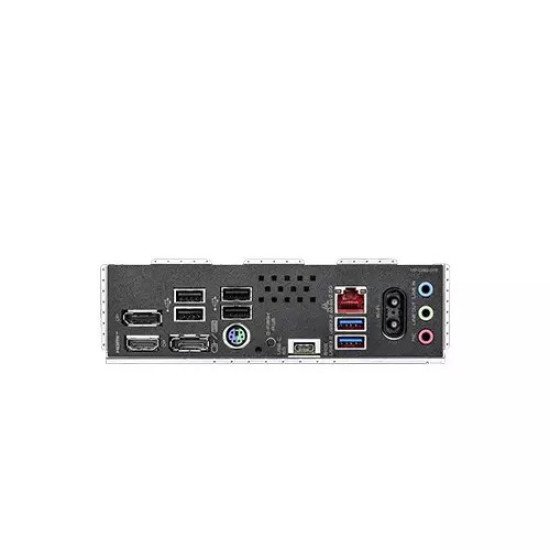

| External I/O Ports | 1 x HDMI port (Note)<br> 2 x DisplayPorts (Note)<br> 1 x Q-Flash Plus button<br> 1 x PS/2 keyboard/mouse port<br> 1 x USB Type-C port, with USB 3.2 Gen 1 support<br> 2 x USB 3.2 Gen 1 ports<br> 4 x USB 2.0/1.1 ports<br> 2 x antenna connectors (1T1R)<br> 1 x RJ-45 port<br> 3 x audio jacks<br> (Note) Actual support may vary by CPU. | |
| Memory | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules<br> 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory<br> Dual-channel memory architecture<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for AMD Extended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules<br> (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules. Please refer to "Memory Support List" on GIGABYTE's website for more information.) | |
| Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:<br> AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode<br> AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode<br> AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode<br> * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.<br> Chipset:<br> - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) | |
| Supported Storage | 1 x M.2 connector (M2A_CPU), , integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:<br> AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs<br> AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs<br> AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs<br> 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type, type 25110/22110/2580/2280 SSDs:<br> AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs<br> AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs<br> AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs<br> 4 x SATA 6Gb/s connectors<br> RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices<br> * RAID 5 is only available on AMD Ryzen 9000 Series Processors.<br> RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| Graphics | ||
| Graphics | Integrated Graphics Processor with AMD Radeon Graphics support:<br> - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> * Support for HDMI 2.1 version, HDCP 2.3, and HDR.<br> **Support for native HDMI 2.1 TMDS-compatible ports. **<br> - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz<br> * Support for DisplayPort 1.4 version.<br> Support for up to triple-display at the same time<br> (Graphics specifications may vary depending on CPU support.) | |
| Connectivity | ||
| Wi-Fi | Realtek Wi-Fi 6 RTL8851BE<br> - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands<br> - Support for 11ax 80MHz wireless | |
| Connector & Ports | ||
| USB (s) | CPU:<br> - 1 x USB Type-C port, with USB 3.2 Gen 1 support on the back panel<br> - 1 x USB 3.2 Gen 1 port on the back panel<br> CPU+USB 2.0 Hub:<br> - 4 x USB 2.0/1.1 ports on the back panel<br> Chipset:<br> - 1 x USB Type-C port, with USB 3.2 Gen 1 support, available through the internal USB header<br> - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 port available through the internal USB header)<br> - 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Audio | Realtek Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 1 x CPU fan/water cooling pump header<br> 1 x system fan header<br> 1 x system fan/water cooling pump header<br> 2 x addressable RGB Gen2 LED strip headers<br> 1 x RGB LED strip header<br> 4 x SATA 6Gb/s connectors<br> 2 x M.2 Socket 3 connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB Type-C header, with USB 3.2 Gen 1 support<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)<br> 1 x reset jumper<br> 1 x Clear CMOS jumper | |
| Network & Connectivity | ||
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Others Information | ||
| Bundled Software | Norton Internet Security (OEM version) | |
| Warranty Information | ||
| Warranty | 3 Years | |

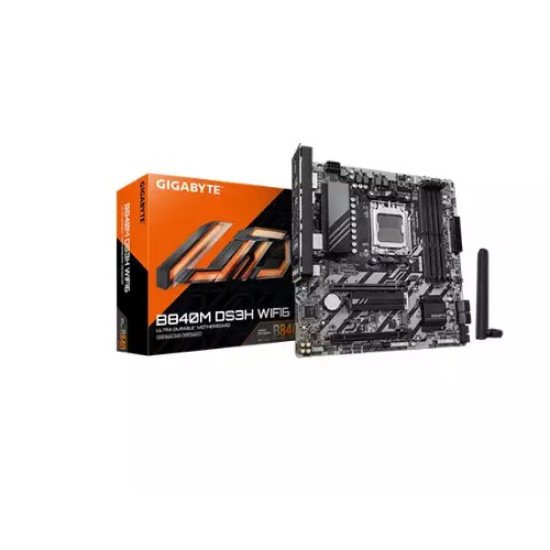

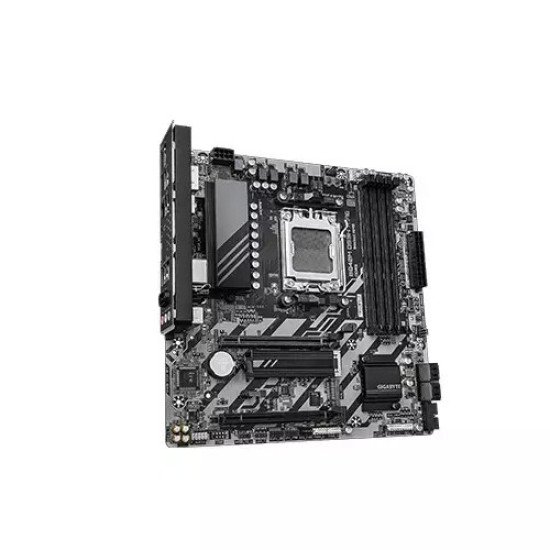

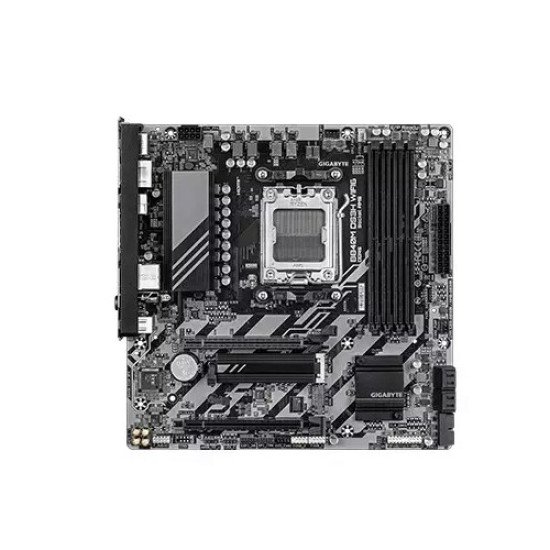

The GIGABYTE B840M DS3H WF6 is a robust Micro ATX motherboard designed to deliver high performance and versatility for AMD Socket AM5 processors, including the Ryzen 7000, 8000, and 9000 series. Equipped with the AMD B840 chipset, it supports the latest AMD CPUs while offering a stable foundation for both gaming and productivity builds. Its AMI UEFI BIOS ensures seamless system configuration with Plug-and-Play, ACPI 5.0, DMI 2.7, and SM BIOS 2.7 support. Memory capabilities are impressive, with four DDR5 DIMM slots supporting up to 256 GB of high-speed memory, including overclocked speeds up to 8200 MT/s. The motherboard is compatible with both AMD EXPO and Intel XMP memory profiles, allowing users to maximize system performance. Dual-channel architecture ensures faster data transfer, while support for non-ECC unbuffered modules guarantees stability. Storage options are flexible, featuring two M.2 connectors and four SATA 6Gb/s ports. PCIe 4.0 NVMe SSD support enables ultra-fast data access, with RAID 0, 1, 5, and 10 configurations available, depending on the CPU. Graphics support includes HDMI 2.1 and DisplayPort 1.4 outputs, capable of triple-display setups, leveraging AMD Radeon integrated graphics. Connectivity is comprehensive, with 2.5GbE LAN, Wi-Fi 6, Bluetooth 5.3, and multiple USB ports including USB Type-C. Expansion is supported through PCIe x16 and x4 slots, suitable for discrete GPUs or additional storage.The motherboard also features advanced audio with Realtek high-definition codecs supporting up to 7.1-channel output. Internally, it offers multiple fan headers, RGB lighting headers, and water-cooling support, giving users extensive thermal and aesthetic control. Additional features include Q-Flash and Q-Flash Plus for easy BIOS updates, Smart Backup for data protection, and compatibility with the GIGABYTE Control Center for system monitoring and optimization. Compact yet powerful, the B840M DS3H WF6 combines modern connectivity, high-speed memory support, and efficient storage solutions, making it an excellent choice for enthusiasts building a reliable, high-performance AMD-based system. It comes backed by a 3-year warranty, ensuring long-term peace of mind.
The latest price of GIGABYTE B840M DS3H WF6 Motherboard in Bangladesh is 20,000৳ You can buy the GIGABYTE B840M DS3H WF6 Motherboard at best price from our Website or visit any of our showrooms.
