| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron®<br> Processors<br> (Go to GIGABYTE's website for the latest CPU support list.)<br> L3 cache varies with CPU | |
| Chipset | Intel® B760 Express Chipset | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek® Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> Support for S/PDIF Out | |
| Expansion Slots | ||
| M.2 Socket | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)<br> Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) | |
| Memory | ||
| Type | Support for DDR5 7600(O.C.) | |
| Supported Memory | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) /<br> 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules<br> 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory<br> Dual channel memory architecture<br> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for Extreme Memory Profile (XMP) memory modules<br> (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules,<br> please refer to "Memory Support List" on GIGABYTE's website for more information.) | |
| Connector & Ports | ||
| USB (s) | Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header<br> - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)<br> - 1 x USB 2.0/1.1 port on the back panel<br> Chipset+2 USB 2.0 Hubs:<br> - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) | |
| LAN Port (s) | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)<br> Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)<br> - 4 x SATA 6Gb/s connectors<br> RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 3 x system fan headers<br> 3 x addressable LED strip headers<br> 1 x RGB LED strip header<br> 2 x M.2 Socket 3 connectors<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x S/PDIF Out header<br> 1 x USB Type-C® header, with USB 3.2 Gen 2 support<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 2 x Thunderbolt™ add-in card connectors<br> 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)<br> 1 x serial port header<br> 1 x Q-Flash Plus button<br> 1 x reset jumper<br> 1 x Clear CMOS jumper | |
| Others Information | ||
| Bundled Software | Norton® Internet Security (OEM version)<br> LAN bandwidth management software | |
| Special Features | Support for GIGABYTE Control Center (GCC)<br> Support for Q-Flash<br> Support for Q-Flash Plus<br> Support for Smart Backup | |

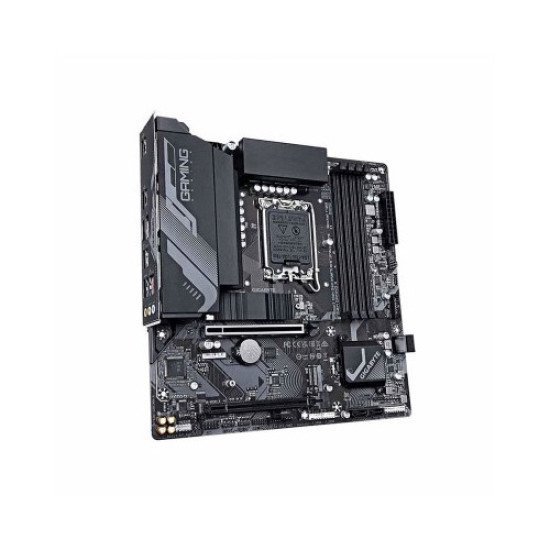

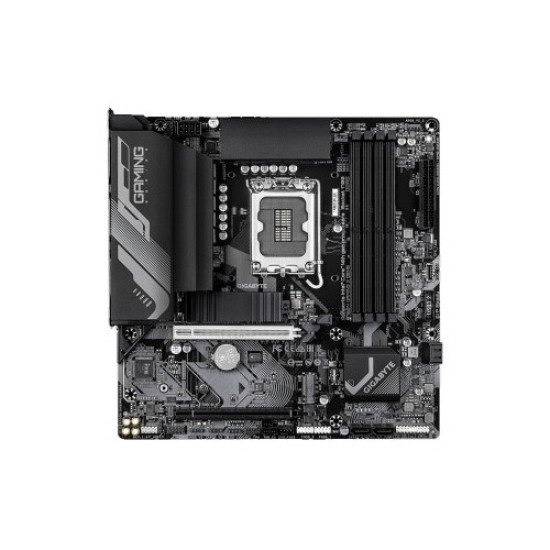

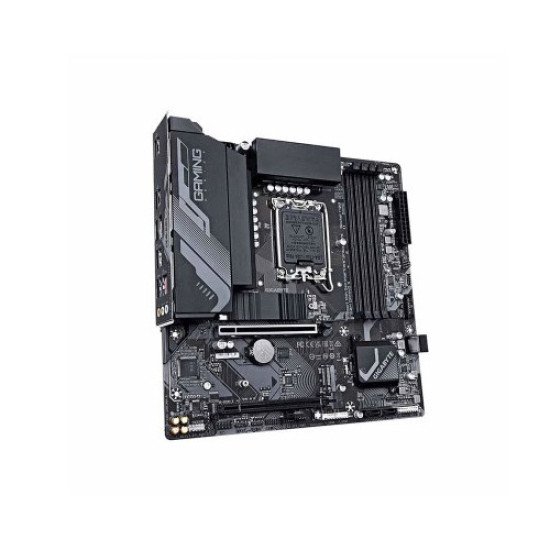

The GIGABYTE B760M GAMING X GEN5 DDR5 Gaming Motherboard is a powerful and reliable solution for gamers and PC builders looking for next-generation performance in a compact Micro ATX form factor. Built on the Intel® B760 Express Chipset and equipped with the LGA1700 socket, this motherboard supports Intel 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® processors, ensuring long-term compatibility and upgrade flexibility. Designed to harness the power of DDR5 memory, the B760M GAMING X GEN5 supports speeds up to 7600 MT/s (OC) through four DIMM slots, allowing a maximum capacity of 256GB dual-channel memory. With XMP support, users can easily optimize memory performance for smoother multitasking, faster application loading, and improved gaming responsiveness. For graphics and expansion, the motherboard features a PCIe 5.0 x16 slot, delivering next-generation bandwidth for modern GPUs, along with an additional PCIe slot for expansion cards. Storage capabilities include two PCIe 4.0 M.2 slots and four SATA 6Gb/s ports, with support for RAID 0, 1, 5, and 10, providing both speed and flexibility for SSDs and large-capacity storage devices. Connectivity is handled by a Realtek® 2.5GbE LAN, ensuring fast, stable, and low-latency wired networking for online gaming and streaming. A wide range of USB options, including USB 3.2 Gen 2 Type-C, USB 3.2 Gen 1, and USB 2.0 ports, ensures seamless connection with modern peripherals. Audio is powered by the Realtek® Audio CODEC, supporting 7.1-channel HD audio and S/PDIF Out for immersive sound quality. With GIGABYTE Control Center, Q-Flash Plus, Smart Backup, robust power delivery, and RGB header support, the GIGABYTE B760M GAMING X GEN5 DDR5 Gaming Motherboard is a dependable and future-ready foundation for any high-performance gaming PC.
The latest price of GIGABYTE B760M GAMING X GEN5 DDR5 Gaming Motherboard in Bangladesh is 20,600৳ You can buy the GIGABYTE B760M GAMING X GEN5 DDR5 Gaming Motherboard at best price from our Website or visit any of our showrooms.
