| Attribute |
Specification |
| E1/T1/J1 Port |
1 (Support PRI, MFC R2, SS7, E&M) |
| Protocol |
SIP (RFC3261) |
| Transport Protocol |
UDP, TCP, TLS, SRTP |
| DTMF |
RFC2833, SIP INFO, In-band |
| Codec |
G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM |
| Echo Cancellation |
ITU-T G.168 LEC |
| Network Protocol |
FTP, TFTP, HTTP, HTTPS, SSH |
| Network Features |
DDNS, Firewall, PPPoE, Static IP, QoS, Static Route |
| PRI Switch Types |
Euro ISDN, nation, Q.SIG |
| CAS |
MFC R2 (Argentina, Brazil, China, Czech Republic, Colombia, Ecuador, Indonesia, ITU, Mexico, Philippines, Venezuela) |
| SS7 |
ITU, ANSI, China |
| LAN |
1 x 10/100Base-T Ethernet |
| WAN |
1 x 10/100Base-T Ethernet |
| USB |
1 |
| Power Supply |
AC 100-240V (12V 2A) |
| Operation Range |
0°C to 40°C, 32°F to 104°F |
| Storage Range |
-20°C to 65°C, -4°F to 149°F |
| Humidity |
10-90% non-condensing |

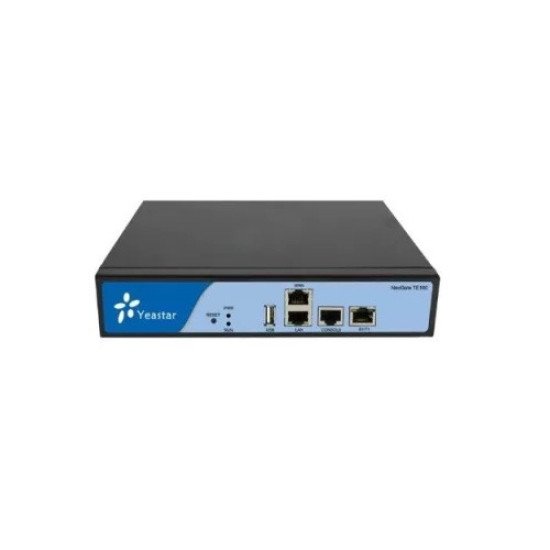

Yeastar TE100 VoIP Gateway
The Yeastar TE100 VoIP Gateway stands as a robust and versatile solution for seamless integration between traditional telephony systems and modern Voice over Internet Protocol (VoIP) networks. Designed with advanced features, this gateway facilitates the smooth transition of E1, T1, or J1 lines to SIP-based communication environments. With a single E1/T1/J1 port supporting PRI, MFC R2, SS7, and E&M, the TE100 ensures broad compatibility with different telephony standards. Operating on the SIP protocol (RFC3261), it provides flexible and standardized communication over UDP, TCP, TLS, and SRTP transport protocols. The TE100 supports various DTMF modes, including RFC2833, SIP INFO, and In-band, catering to diverse signaling preferences. It boasts a comprehensive codec support, featuring G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, and ADPCM, ensuring optimal voice quality for a wide range of applications. Network management is made efficient with the inclusion of protocols such as FTP, TFTP, HTTP, HTTPS, and SSH. The device supports dynamic DNS (DDNS), Firewall, PPPoE, Static IP, Quality of Service (QoS), and Static Route functionalities, providing a robust and secure networking environment. The TE100 VoIP Gateway caters to different PRI switch types, including Euro ISDN, nation, and Q.SIG, as well as CAS signaling for various regions such as Argentina, Brazil, China, Colombia, and more. It supports SS7 signaling according to ITU, ANSI, and China standards. Equipped with 1 x 10/100Base-T Ethernet LAN and WAN ports, along with a USB port, the TE100 ensures versatile connectivity options. The device operates on an AC power supply with a wide voltage range (100-240V) and features a temperature operating range of 0°C to 40°C, making it adaptable to various environments. The Yeastar TE100 VoIP Gateway combines advanced telephony features with extensive network and signaling support, making it an ideal choice for businesses seeking a reliable and feature-rich gateway to bridge the gap between traditional and IP-based communication systems.
