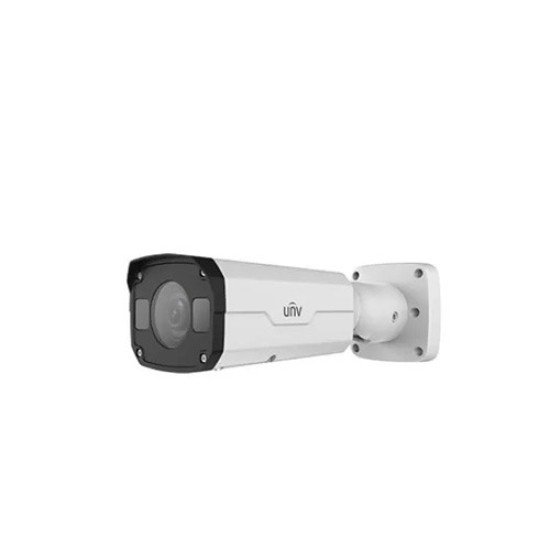

Uniview PC2324EBR-DPZ28 4MP VF Network IR Bullet IP Camera

Uniview PC2324EBR-DPZ28 4MP VF Network IR Bullet IP Camera

The Uniview PC2324EBR-DPZ28 4MP VF Network IR Bullet IP Camera is a cutting-edge surveillance solution equipped with advanced features for optimal security monitoring. With a 1/3″ progressive scan 4.0-megapixel CMOS sensor, this camera delivers high-resolution images, ensuring clarity in capturing crucial details. The 2.8~12mm AF automatic focusing and motorized zoom lens enable versatile coverage and effortless adjustment for various surveillance scenarios. Featuring a comprehensive set of capabilities, the camera supports a DORI distance range, ensuring reliable detection and identification of subjects at different focal lengths. Its wide-angle views of 104.4°~25° (H), 54.4°~13.7° (V), and 135.7°~30.8° (O) enhance monitoring flexibility. The camera's intelligent design includes a Pan-Tilt-Rotate adjustment angle, providing a full range of motion for precise positioning. It operates in diverse lighting conditions with an auto/manual shutter, day/night functionality, and an impressive IR range of up to 30m (98 ft) for clear imaging in low-light environments. Utilizing advanced video compression technologies such as Ultra 265, H.265, H.264, and MJPEG, the camera ensures efficient storage and transmission of high-quality video streams. Additionally, features like 9:16 corridor mode, HLC, BLC, and digital defog contribute to optimized image quality. This IP camera supports a variety of intelligent functions, including motion and behavior detection, intrusion detection, and facial recognition. It also offers two-way audio, people counting, and edge storage options for added convenience. Built to withstand challenging environmental conditions, the camera boasts an IP67 ingress protection rating, making it suitable for outdoor use. Its durable construction, with dimensions of 253.4 × 86 × 71.7 mm and a weight of 0.58 kg, ensures easy installation and longevity. The Uniview PC2324EBR-DPZ28 4MP VF Network IR Bullet IP Camera is a reliable and feature-rich surveillance solution, providing advanced functionality for comprehensive security applications.

Uniview PC2324EBR-DPZ28 4MP VF Network IR Bullet IP Camera Features

• Sensor: The camera is equipped with a 1/3″ progressive scan, 4.0-megapixel CMOS sensor. This advanced sensor ensures high-quality imaging and detailed footage.
• Lens: The 2.8~12mm lens, with AF automatic focusing and motorized zoom capabilities, allows for flexible adjustments to achieve the desired field of view. This feature ensures adaptability to various surveillance needs.
• DORI Distance: The camera supports the Distance Object Recognition Index (DORI) for both the 2.8mm and 12mm lenses, ensuring reliable detection, observation, recognition, and identification of distances for different focal lengths.
• The angle of View: The camera offers a wide range of viewing angles, including 104.4°25° (H), 54.4°13.7° (V), and 135.7°~30.8° (O). This allows comprehensive coverage and monitoring in different environments.
• Adjustment Angle: With a pan range of 0°360°, tilt range of 0°90°, and rotation of 0°~360°, the camera provides full adjustment angles for precise positioning, ensuring no blind spots in surveillance.
• Day/Night Functionality: The camera features an IR-cut filter with auto-switch (ICR) for seamless day/night functionality. It can capture clear images in low-light conditions, and the IR range extends up to 30m (98 ft).
• Wide Dynamic Range (WDR): With a WDR of 120dB, the camera can handle challenging lighting conditions, providing balanced and detailed images even in high-contrast scenes.
• Video Compression: Supporting multiple video compression formats, including Ultra 265, H.265, H.264, and MJPEG, the camera ensures efficient storage and transmission of high-quality video streams.
• Intelligent Functions: The camera incorporates a variety of intelligent features, including 9:16 corridor mode, HLC (Highlight Compensation), BLC (Backlight Compensation), face detection, audio detection, intrusion detection, and motion detection.
• Privacy and Security: Privacy is maintained with features like privacy masks and region of interest (ROI) settings. The camera also supports general functions like watermarking, IP address filtering, tampering alarms, and user authentication for enhanced security.
• Audio Capabilities: The camera supports G.711 audio compression, two-way audio communication, and audio suppression. It includes an audio cable input and output for comprehensive audio functionality.
• Storage and Network: For convenient storage, the camera supports micro SD cards up to 128 GB and Network Attached Storage (ANR). It is equipped with various network protocols, ensuring seamless integration with different systems through ONVIF, API, and more.
• Environmental Durability: Designed to withstand challenging environments, the camera is rated IP67 for Ingress Protection, ensuring resistance to dust and water. It operates in a wide temperature range (-35°C ~ +60°C) and varying humidity conditions.These features collectively make the Uniview PC2324EBR-DPZ28 an advanced and versatile surveillance solution suitable for a range of security applications.
