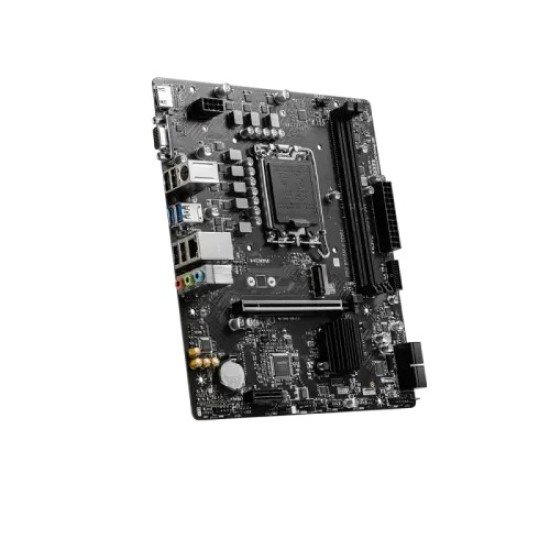

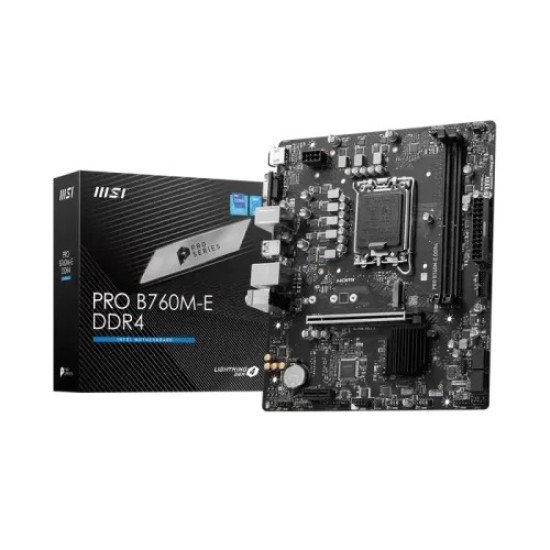

MSI PRO B760M-E DDR4 Motherboard

Save: 500৳ In Stock

MSI PRO B760M-E DDR4 Motherboard

Stock: In Stock
Brand: MSI
Model: PRO B760M-E

Based on 1 reviews. - Write a review

13,000৳

13,500৳

Ex Tax: 13,000৳

Qty

Buy Now

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Key Features

- Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
- Supported RAM: 2x DDR4, Max 128GB 4800(OC)
- Graphics Output: 1x HDMI, 1x VGA
- Features: 1x M.2 slot, Realtek RTL8111H Gigabit LAN

View more details

Basic Information
Supported CPU	Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Chipset	INTEL B760
Form Factor	mATX 200mmx236.16mm
Audio	Realtek ALC897 Codec 7.1-Channel High-Definition Audio
Type	DDR4
Memory Specifications
Maximum Memory	64GB
Slots	2
Supported Memory	4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 4800+ MHz • 1DPC 2R Max speed up to 4600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Expansion Slots
PCI	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)
Graphics
Graphics	1x HDMI Support HDMI 1.4 with HDR, the maximum resolution of 4K 30Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

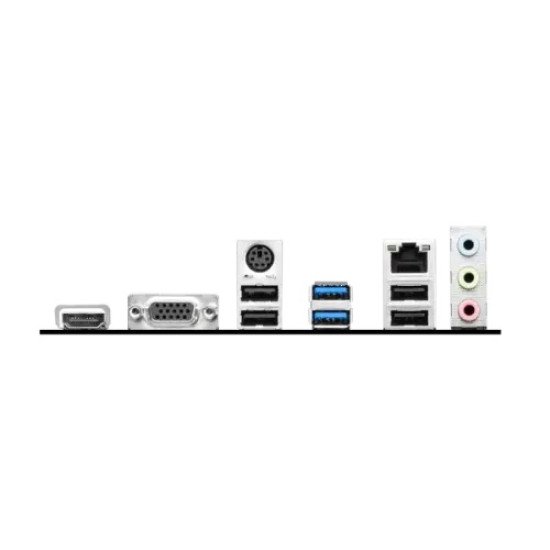

Connector & Ports
HDMI	1x HDMI
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
LAN Port (s)	Realtek RTL8111H Gigabit LAN
Supported Storage	1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
Audio	Audio Connectors
Internal I/O Ports	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 2x USB 2.0 ports 1x USB 3.2 Gen1 Type A ports
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
VGA (s)	1x VGA
Others Information
Special Features	4x EZ Debug LED
Warranty Information
Warranty	3 years

MSI PRO B760M-E DDR4 Motherboard

The MSI PRO B760M-E DDR4 Motherboard is a versatile and high-performance micro-ATX motherboard designed to meet the demands of modern computing. Compatible with Intel’s 14th, 13th, and 12th-generation Core processors, as well as Pentium Gold and Celeron CPUs, it utilizes the LGA 1700 socket to deliver seamless performance for both professional workloads and gaming. Built on the Intel B760 chipset, this motherboard combines reliability with cutting-edge technologies to ensure a stable and efficient platform. Performance is further enhanced by dual-channel DDR4 memory support, capable of handling speeds up to 4800+ MHz (OC), and a maximum capacity of 64GB. The Memory Boost technology ensures pure data signals, providing optimal stability and compatibility for memory-intensive applications. For gamers and creators, the MSI PRO B760M-E offers PCIe 4.0 and Lightning Gen4 x4 M.2 slots, enabling ultra-fast data transfer speeds for storage and graphics devices. Audio quality is elevated with AUDIO BOOST, delivering studio-grade sound for an immersive experience, while Steel Armor ensures the PCIe slots are reinforced, preventing bending and EMI interference for more stable performance. Expansion options include PCIe x16 and PCIe x1 slots, HDMI and VGA outputs supporting high-resolution displays, multiple USB 2.0 and 3.2 Gen1 ports, and versatile storage connectivity, including SATA 6G and RAID support. Designed with convenience and durability in mind, it includes 4x EZ Debug LEDs for easy troubleshooting, TPM 2.0 support for security, and a premium digital power architecture for reliable performance under heavy loads. With its compact mATX form factor, the MSI PRO B760M-E DDR4 Motherboard delivers a perfect balance of performance, stability, and expandability for gaming, content creation, and everyday computing.

Features of MSI PRO B760M-E DDR4 Motherboard

Support CPUs: 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors.
Socket & Chipset: LGA 1700, Intel B760 chipset.
Form Factor: Micro-ATX (200mm x 236.16mm).
Memory: DDR4, 2 slots, dual-channel, up to 4800+ MHz (OC), 64GB max.
PCIe Slots: 1x PCIe x16 (PCIe 4.0), 1x PCIe x1 (PCIe 3.0).
M.2 & Storage: 1x M.2 (PCIe 4.0 x4 / SATA), 4x SATA 6G, RAID 0/1/5/10 support.
Graphics Output: 1x HDMI (4K 30Hz), 1x VGA (max 2048x1536).
USB Ports: 4x USB 2.0 (rear), 4x USB 2.0 (front), 2x USB 3.2 Gen1 Type-A (rear), 2x USB 3.2 Gen1 Type-A (front).
LAN: Realtek RTL8111H Gigabit LAN.
Audio: Realtek ALC897 7.1 HD Audio with AUDIO BOOST.
Special Features: Memory Boost, Steel Armor, Core Boost, premium digital power architecture.
Connectors & Headers: CPU fan, 2x system fan, RGB LED, front panel, front audio, COM port, 2x USB 2.0, 1x USB 3.2 Gen1.
Security: TPM 2.0 support.
Diagnostics: 4x EZ Debug LEDs for easy troubleshooting.
Warranty: 3 years manufacturing warranty.
