| Basic Information | ||
| Supported CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors | |
| Chipset | AMD B520 | |
| Form Factor | Micro-ATX Form Factor<br> 9.3 in. x 7.9 in. (23.6 cm x 20 cm) | |
| Type | Dual-channel memory architecture | |
| Memory Specifications | ||
| Maximum Memory | 64GB | |
| Slots | 2x DDR4 memory slots | |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE<br> 1DPC 1R max speed 4600 MHz<br> 1DPC 2R max speed 3866 MHz<br> Supports non-ECC UDIMM memory<br> Supports ECC UDIMM memory (non-ECC mode)<br> Supports un-buffered memory | |
| Expansion Slots | ||
| PCI | 1x PCIe 3.0 x1 slot<br> 1x PCIe x16 slot | |
| M.2 Socket | 1x M.2 slot (Key M) (from AMD Processor)<br> Supports PCIe 3.0<br> Supports SATA 6Gb/s<br> Supports 2242/ 2260/ 2280 storage devices | |
| Motherboard | ||
| Supported Storage | AMD A520 Chipset<br> 4x SATA 6Gb/s ports<br> 1x M.2 slot (Key M) (from AMD Processor)<br> Supports PCIe 3.0<br> Supports SATA 6Gb/s<br> Supports 2242/ 2260/ 2280 storage devices | |
| Graphics | ||
| Max Shared Memory | 16GB | |
| Graphics | 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz<br> 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz | |
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 port, maximum resolution of 4096x2160 @60Hz | |
| USB (s) | AMD A520 Chipset<br> 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector<br> 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)<br> AMD Processor<br> 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel | |
| LAN Port (s) | 1x Realtek RTL8111H Gigabit LAN controller | |
| Audio | Realtek ALC892 Codec<br> 7.1-Channel High Definition Audio | |
| Internal I/O Ports | 1x 24-pin ATX main power connector<br> 1x 4-pin ATX 12V power connector<br> 4x SATA 6Gb/s connectors<br> 1x M.2 slots (M-Key)<br> 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)<br> 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)<br> 1x 4-pin CPU fan connector<br> 1x 4-pin system fan connectors<br> 1x Front panel audio connector<br> 2x System panel connectors<br> 1x Chassis Intrusion connector<br> 1x Clear CMOS jumper | |
| TPM (Trusted Platform Module ) | 1xTPM module connector | |
| DVI-D (s) | 1x DVI-D port, maximum resolution of 1920x1200@60Hz | |
| Others Information | ||
| Special Features | RAID:<br> Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices<br> Supports RAID 0 and RAID 1 for M.2 NVMe storage devices | |
| Warranty Information | ||
| Warranty | 03 Years Warranty | |

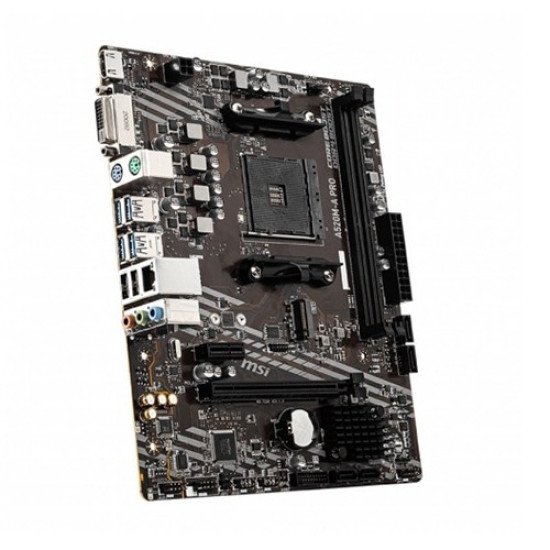

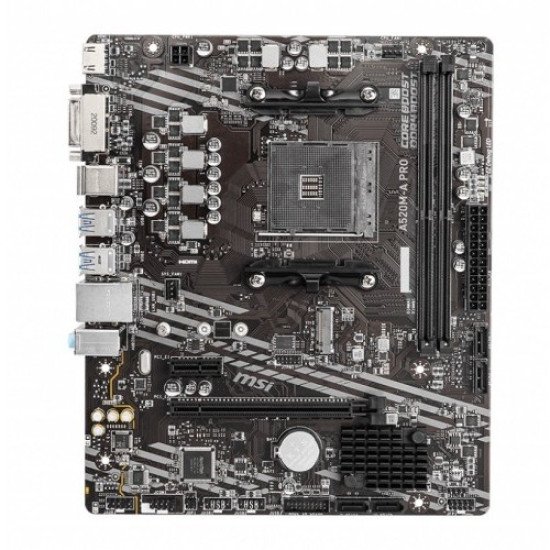

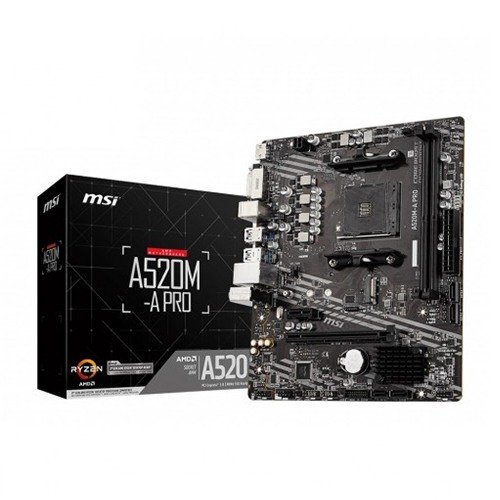

The MSI A520M-A Pro Motherboard is engineered to help professionals and PC enthusiasts work smarter and more efficiently. Designed with stable functionality and high-quality assembly, this motherboard ensures optimized workflows, long-lasting reliability, and minimal troubleshooting. Whether you are building a professional workstation or a high-performance home PC, the A520M-A Pro provides a seamless experience with enhanced performance and user-friendly features. Equipped with support for AMD Ryzen 5000/4000G series and 3rd Generation Ryzen processors, the motherboard delivers exceptional processing power for demanding applications. Its Micro-ATX form factor (9.3 in. x 7.9 in.) offers a compact yet robust design suitable for various builds. The motherboard supports dual-channel DDR4 memory up to 64GB, including speeds of up to 4600+ MHz through A-XMP OC mode, allowing users to maximize memory performance with ease. MSI’s Core Boost technology ensures precise current delivery to the CPU, optimizing overclocking potential while maintaining stability for multi-core processors. Total Fan Control allows users to monitor temperatures and adjust fan speeds automatically with up to four temperature targets, ensuring optimal cooling for both the CPU and the system. Storage options are versatile, with 1 M.2 slot supporting PCIe 3.0 NVMe drives and 4 SATA 6Gb/s ports, enabling fast access and expansion with modern storage devices. Graphics support includes HDMI 2.1 and DVI-D outputs, allowing resolutions up to 4K at 60Hz. Additional features such as RAID support, Realtek 7.1-channel audio, and a TPM module connector make the A520M-A Pro a comprehensive solution for both professional and casual users. With a 3-year warranty and MSI’s trusted engineering, this motherboard ensures durability, efficiency, and superior performance for years to come.
The latest price of MSI A520M-A Pro Motherboard in Bangladesh is 8,100৳ You can buy the MSI A520M-A Pro Motherboard at best price from our Website or visit any of our showrooms.
