Specification
| Recording |
| Compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Resolution |
When 1080p Lite mode is not enabled:
3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF |
| Record Rate |
Main stream:
When 1080p Lite mode not enabled:
For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps
For 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps
For 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps (N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
| Bit Rate |
32 Kbps to 6 Mbps |
| Others |
Stream Type: Video, Video & Audio
Audio Compression: G.711u
Audio Bitrate: 64 Kbps |
| Video Detection And Alarm |
| Video Detection |
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported |
| Alarm Input |
N/A |
| Network |
| Ethernet Port |
1, RJ45 10M/100M/1000M |
| Network Function |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Storage |
| Internal HDD |
1 SATA interface |
| Auxiliary Interface |
| USB |
Rear panel: 2 × USB 2.0 |
| Power |
| Power Supply |
12 VDC, 2A |
| Power Consumption |
≤ 24W |
| Construction |
| Dimensions |
285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch) |
| Net Weight |
≤ 1 kg (2.2 lb) |
| Warranty |
| Manufacturing Warranty |
01-Year Warranty |

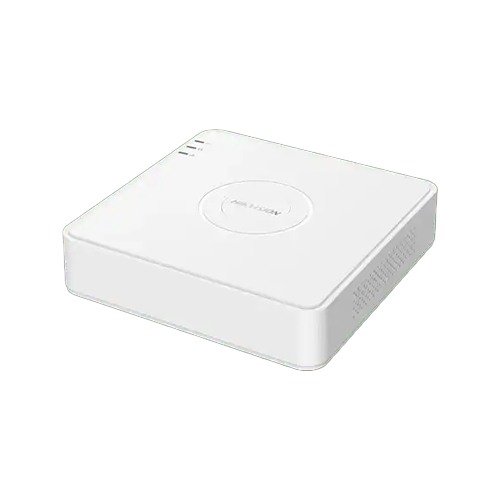

Hikvision iDS-7116HQHI-M1/S 16 Channel AcuSense DVR
Hikvision iDS-7116HQHI-M1/S is an advanced 16-channel AcuSense DVR designed to elevate your surveillance experience with cutting-edge technology and intelligent features. This DVR supports multiple video compression formats, including H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264, ensuring efficient storage and high-quality recordings. Users can enjoy a variety of resolutions, from 3K lite to CIF, allowing flexibility depending on the monitoring environment and storage capacity.
One of the standout features of this DVR is its Deep Learning-based Motion Detection 2.0, which minimizes false alarms by accurately classifying movement, distinguishing between humans, vehicles, and other objects. This smart detection capability enables quick searches by object or event type, enhancing the usability and effectiveness of the system.
The iDS-7116HQHI-M1/S offers robust networking capabilities with an RJ45 port supporting speeds of 10M/100M/1000M. It functions seamlessly with various network protocols, including TCP/IP, PPPoE, and Hik-Connect, allowing users to access their surveillance systems remotely and efficiently.
Designed for convenience, it features a single SATA interface for internal HDD storage and two USB 2.0 ports for easy data transfer. Its compact dimensions of 285 × 210 × 45 mm and lightweight design (≤ 1 kg) make it easy to install in various settings without occupying much space.
With a power consumption of ≤ 24W and a reliable 12 VDC power supply, the iDS-7116HQHI-M1/S ensures efficient operation. Backed by a 1-year manufacturing warranty, this DVR is an excellent choice for those seeking a sophisticated, user-friendly surveillance solution that combines advanced technology with practical features.
