| Audio and Video |
| IP Camera Input |
IP video input: 16-ch |
| Two-Way Talk |
Two-way audio: 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Recording |
| Resolution |
Recording Resolution: Up to 6MP\
Synchronous Playback: Up to 16-ch synchronous playback at 4CIF resolution |
| Record Rate |
Up to 6MP |
| Video Detection And Alarm |
| Video Detection |
IP Video Input: 16-ch (8-ch@720P, 6-ch@1080P) |
| Alarm Input |
Alarm Input/Output: Alarm in / out 16 / 4 (optionally can be expanded to 16 / 8)
Alarm Input/Output: Alarm in / out 16 / 4 (optionally can be expanded to 16 / 8) |
| Playback And Backup |
| Sync Playback |
Up to 16-ch synchronous playback at 4CIF resolution |
| Search Mode |
Yes |
| Playback Function |
Yes |
| Backup Mode |
Yes |
| Third Party Support |
| Third Party Support |
Third-party network cameras supported |
| Network |
| Interface |
Network Interface: 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface
PoE Switch (Built In): (-16P) 16 independent 100 Mbps PoE network interfaces
Power over Ethernet: (-16P) 16 independent 100 Mbps PoE network interfaces\
Serial Interface: RS-232 and RS-485 |
| Ethernet Port |
Network Interface 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface
Power over Ethernet (-16P) 16 independent 100 Mbps PoE network interfaces |
| PoE |
PoE Switch (Built In) (-16P) 16 independent 100 Mbps PoE network interfaces
Power Consumption ≤ 20W (without hard disk, DVD-R/W or PoE)
Power over Ethernet (-16P) 16 independent 100 Mbps PoE network interfaces |
| Network Function |
1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface
(-16P) 16 independent 100 Mbps PoE network interfaces
(-16P) 16 independent 100 Mbps PoE network interfaces |
| Storage |
| Internal HDD |
Max 16TB 4 SATA interfaces for 2 HDDs + 1 DVD-R/W (default), or 4HDDs (8TB with DVD R/W + 2HDD) |
| Auxiliary Interface |
| USB |
2 × USB 2.0 + 1 × USB 3.0 |
| RS232 |
Yes |
| RS485 |
Yes |
| Power |
| Power Supply |
Max. Power 200W Power supply 100 ~ 240 VAC |
| Power Consumption |
≤ 20W (without hard disk, DVD-R/W or PoE) |
| Component Environment |
| Operational Conditions |
-10ºC ~ + 55ºC (14ºF ~ 131ºF) Working humidity 10 % ~ 90 % |
| Storage Conditions |
Max 16TB 4 SATA interfaces for 2 HDDs + 1 DVD-R/W (default), or 4HDDs (8TB with DVD R/W + 2HDD) |
| Construction |
| Dimensions |
445 × 390 ×70 mm ( 17.5"× 15.3" × 2.8") |
| Net Weight |
≤ 4 Kg (without hard disk) |

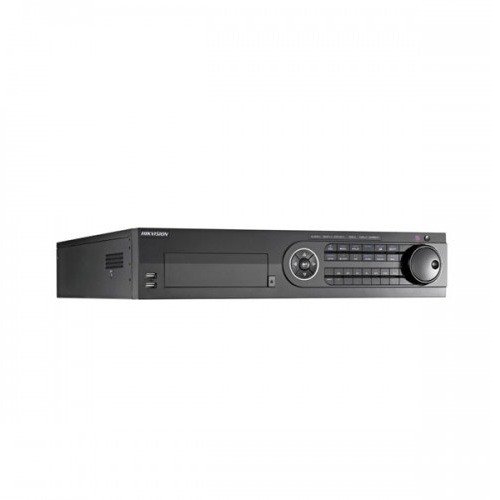

Hikvision DS-7732NI-E4 Embedded NVR
Hikvision DS-7732NI-E4 Embedded NVR is a cutting-edge network video recorder designed for professional surveillance applications. With its advanced features and robust capabilities, it serves as the backbone for managing and recording video footage from up to 16 IP cameras. Equipped with 16-channel IP video input, this NVR supports high-resolution recording, offering a maximum resolution of 6MP for crystal-clear imagery. The Two-Way Talk functionality allows users to communicate through the connected cameras using a single audio channel, enhancing the interactive aspect of surveillance. The recording capabilities include synchronous playback of up to 16 channels at 4CIF resolution, providing a comprehensive overview of recorded content. The video detection and alarm features add an extra layer of security, with support for 16 alarm inputs and 4 outputs (expandable to 16/8). This ensures prompt response to potential security breaches or incidents. The playback and backup options are versatile, allowing users to synchronize playback, search efficiently, and back up crucial data as needed. The NVR supports third-party network cameras, offering flexibility in camera selection and integration. Its network capabilities include a 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface for seamless connectivity. Additionally, the built-in PoE switch provides 16 independent 100 Mbps PoE network interfaces, simplifying the installation process and reducing cable clutter. Storage is a key feature, supporting a maximum of 16TB internal HDD storage with four SATA interfaces for 2 HDDs and 1 DVD-R/W (default), or 4 HDDs (8TB with DVD R/W + 2 HDD). The USB interfaces, including two USB 2.0 and one USB 3.0, facilitate external storage and easy data transfer. The inclusion of RS232 and RS485 interfaces further expands connectivity options. Designed to withstand a range of environmental conditions, the NVR operates in temperatures from -10ºC to +55ºC (14ºF to 131ºF), with a working humidity range of 10% to 90%. Its sturdy construction, with dimensions of 445 × 390 ×70 mm (17.5"× 15.3" × 2.8"), and a net weight of ≤ 4 Kg (without hard disk), ensures durability and ease of installation. With a power supply of 100 ~ 240 VAC and a maximum power consumption of ≤ 20W, this Hikvision NVR is a reliable and efficient solution for professional video surveillance needs.
