| Brand | Hikvision |
| Model | Hikvision DS-7716NXI-K4 |
| Type | 4K NVR |
| Video Input Channel (BNC) | 16 Channel |
| Video Compression/Format | H.265+/H.265/H.264+/H.264 |
| Video Output (VGA) | 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz |
| Video Output (DVI) | No |
| Video Output (HDMI) | 1-ch, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Video Output (BNC) | HDMI/VGA independent output |
| Video Recording Res. | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Max. Video Recording Res. | 1920 x 1080 |
| IP Video Input | 16 Channel |
| Audio Input Channel (RCA) | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC |
| Audio Output Channel | 1-ch, RCA |
| Two-Way Audio | Yes |
| Stream Type | Video, Video & Audio |
| Dual Stream Support | Yes |
| Decoding Capability | AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps), AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps) |
| Synchronous Playback | 16 Channel |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS |
| Number HDD Interface (SATA) | 4 SATA |
| Max HDD Support (GB,TB) | Up to 10TB capacity for each HDD |
| Max. Storage Support | 40TB |
| eSATA | No |
| Network Interface (RJ45) | 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Serial Interface | 2 RS-485 (half-duplex), 1 RS-232 |
| USB Port | Front panel: 2 x USB 2.0; Rear panel: 1 x USB 3.0 |
| POE Interface | No |
| Remote Connections | 128 |
| Main Processor | Unmentioned |
| Display Split | No |
| CVBS Input | No |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Number of Arrays | No |
| MD Zones | No |
| Interoperability | No |
| Privacy Masking | No |
| Video Detection | No |
| Trigger Events | No |
| OSD | No |
| PTZ Controller | No |
| Power Supply | 100 to 240 VAC, 50 to 60Hz |
| Approx. Power Consumption | < 20 W (without HDD) |
| Max. Power | < 20 W |
| Dimensions | 445 x 400 x 75 mm |
| Weight | 5 kg |
| Smartphone Supported | Yes |
| Supported Camera Models | IP camera |
| Feature | Up to 16-ch IP camera inputs, H.265+/H.265/H.264+/H.264 video formats, Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity, Up to 160 Mbps incoming bandwidth, Adopt Hikvision Acusense technology to minimize manual effort and security costs. |
| Others | All channels support Motion Detection 2.0, 1-ch facial recognition for video streaming, 4-ch facial recognition for face pictures, Smart search for the selected area in the video, and smart playback to improve the playback efficiency. H.265+ compression effectively reduces the storage space by up to 75% Adopt stream over TLS encryption technology which provides a more secure stream transmission service. |
| Warranty | 1 year |

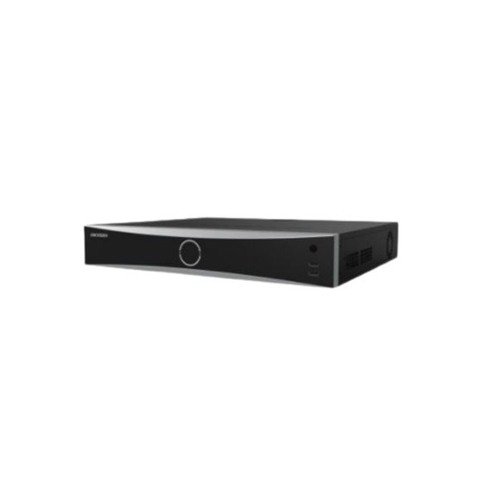

Hikvision DS-7716NXI-K4 16-Channel AcuSense 4K NVR
Hikvision DS-7716NXI-K4 is a state-of-the-art 16-channel AcuSense 4K network video recorder (NVR) designed to enhance security monitoring with advanced features and high-resolution capabilities. This NVR supports up to 16 IP camera inputs, allowing for comprehensive surveillance across multiple locations. With its ability to handle video compression formats such as H.265+, H.265, H.264+, and H.264, it optimizes storage efficiency while maintaining exceptional video quality.
One of the key highlights of the DS-7716NXI-K4 is its impressive decoding capability, which allows for up to 2 channels at 12 MP or 3 channels at 8 MP, ensuring that users can view high-resolution footage without lag. The NVR supports a maximum video recording resolution of 1920 x 1080, making it suitable for detailed monitoring in various environments.
Equipped with multiple video output options, including HDMI for 4K output at 3840 x 2160 resolution, the NVR provides flexibility in connecting to different display devices. The synchronous playback feature allows users to review footage from all 16 channels simultaneously, enhancing the efficiency of security operations.
The AcuSense technology integrated into this NVR significantly reduces false alarms by utilizing intelligent analytics, such as motion detection and facial recognition. This feature not only minimizes manual effort but also lowers security costs by ensuring that alerts are relevant and actionable.
With a robust design, the DS-7716NXI-K4 is built to support a maximum storage capacity of 40TB across four SATA hard drives, accommodating extensive video data. Its user-friendly interface and compatibility with mobile devices make it an ideal choice for both residential and commercial security applications, providing peace of mind with cutting-edge surveillance technology.
The latest price of Hikvision DS-7716NXI-K4 16-Channel AcuSense 4K NVR in Bangladesh is 30,100৳ You can buy the Hikvision DS-7716NXI-K4 16-Channel AcuSense 4K NVR at best price from our Website or visit any of our showrooms.
