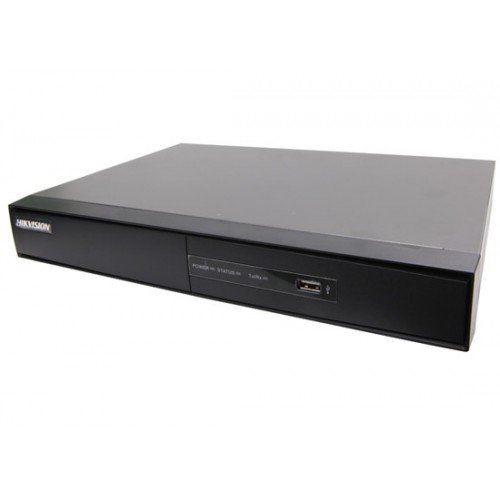

HIKVISION DS-7232HQHI-K2 32-CH Turbo HD 1080P DVR

HIKVISION DS-7232HQHI-K2 32-CH Turbo HD 1080P DVR

Regular Price: 40,550৳
Status: In Stock
MPN: star
Model: DS-7232HQHI-K2
Brand: : Hikvision

Key Features

  • Up to 18 network cameras can be connected
  • H.265 pro+ compression technology
  • Resolution : 1920×1080P
  • 2 SATA interfaces
View More Info

Payment Options

  • Specification
  • Description
  • Questions (0)
  • Reviews (0)

Specification

DVR / NVR / XVR Specification
Auxiliary Interface Serial Interface : RS-485 (half-duplex)
SATA : 2 SATA interfaces
Capacity : Up to 10 TB capacity for each disk
Alarm In/Out : N/A
USB Interface : Front panel: 1 × USB 2.0
Rear panel: 1 × USB 3.0
Network Remote Connection : 128
Total Bandwidth : 128 Mbps
Network Protocol : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface : 1,
Recording Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution : When 1080p lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF

Frame Rate : Main stream: When 1080p Lite mode not is enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3
MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode is enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

Video Bitrate : 32 Kbps to 6 Mbps
Dual-Stream : Support
Stream Type : Video, Video & Audio
Audio Compression : G.711u
Audio Bitrate : 64 Kbps
Video and Audio IP Video Input : 2-ch (up to 34-ch) Enhanced IP mode on: 8-ch (up to 40-ch), each up to 4 Mbps Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input : 32-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

Incoming Bandwidth : Enhanced IP mode on: 160 Mbps

HDTVI Input : 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 *: The 3 MP signal input is only available for channel 1/2/3/4.

AHD Input : 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI Input : 1080p25, 1080p30, 720p25, 720p30
CVBS Input : PAL/NTSC

HDMI Output : 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
CVBS Output : 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 Audio Input : 1-ch, RCA (2.0 Vp-p, 1 KΩ) Audio Output : 1-ch, RCA (Linear, 1 KΩ) Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) Synchronous Playback : 16-ch
General
Power Power Supply : 12 VDC, 4.5 A
Physical Specification
Others Consumption : ≤ 65 W (without HDD)
Working Temperature : -10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity : 10% to 90%
Dimensions 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
≤ 2 kg (4.4 lb)
Warranty Information
Warranty 01 year warranty

Description

HIKVISION DS-7232HQHI-K2 32-CH Turbo HD 1080P DVR: Powerful Security Recording Solution

The HIKVISION DS-7232HQHI-K2 32-CH Turbo HD 1080P DVR is a high-performance security recorder designed for large-scale surveillance. With support for 32 analog channels and up to 40 IP cameras, H.265 Pro+ compression, and 4K HDMI output, it ensures efficient video storage, smooth playback, and reliable monitoring for home, office, or business security needs.

Advanced Video Compression – H.265 Pro+

The HIKVISION DS-7232HQHI-K2 DVR supports H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264 video compression. This advanced technology reduces storage and bandwidth consumption by up to 50%, ensuring cost-effective video management.

Multi-Format Video Input

  • Supports HDTVI, AHD, HDCVI, CVBS, and IP cameras.
  • Up to 32 analog channels plus IP inputs, expandable to 40 IP cameras with Enhanced IP Mode.
  • Compatible with IP cameras up to 6MP resolution, making it a versatile surveillance solution.

Recording Resolution & Frame Rate

  • Resolution support includes 4 MP lite, 3 MP, 1080p, 720p, and more.
  • Frame rates: 1080p/720p @ 15fps, or 25fps/30fps in Lite mode for smoother video playback.
  • Dual-stream support for efficient remote viewing and playback.

Flexible Connectivity & Playback

  • HDMI Output: Up to 4K (3840 × 2160) @30Hz for crystal-clear monitoring.
  • VGA and CVBS outputs for multi-screen display.
  • 16-channel synchronous playback, making it easy to review recordings from multiple cameras simultaneously.

Network & Storage Features

  • Incoming bandwidth: 128 Mbps (up to 160 Mbps with Enhanced IP Mode).
  • Supports multiple protocols such as TCP/IP, Hik-Connect, ONVIF, DNS, DDNS, and HTTPS.
  • 2 SATA interfaces, each supporting up to 10TB HDD, ensuring large storage capacity for long-term recording.

General Specifications

  • Power Supply: 12 VDC, 4.5 A; Power Consumption ≤ 65 W (without HDD).
  • Operating Temperature: -10 °C to +55 °C; Humidity 10–90%.
  • Dimensions: 380 × 320 × 48 mm; Weight ≤ 2 kg.
  • Warranty: 1 Year.

Related Products

Pair your DVR with other top security and IT products available on Tech Valley:

How many IP cameras can this DVR support?

With Enhanced IP Mode enabled, the DS-7232HQHI-K2 supports up to 40 IP cameras.

What is the benefit of H.265 Pro+ compression?

H.265 Pro+ reduces both storage and bandwidth usage, saving up to 50% compared to traditional H.264.

Does this DVR support 4K output?

Yes, the HDMI output supports resolutions up to 4K @30Hz.

How many channels can be played back simultaneously?

The DVR allows 16-channel synchronous playback for efficient monitoring.

The HIKVISION DS-7232HQHI-K2 32-CH Turbo HD 1080P DVR is a high-performance security recorder designed for large-scale surveillance. With support for 32 analog channels and up to 40 IP cameras, H.265 Pro+ compression, and 4K HDMI output, it ensures efficient video storage, smooth playback, and reliable monitoring for home, office, or business security needs.

What is the price of HIKVISION DS-7232HQHI-K2 32-CH Turbo HD 1080P DVR?

The latest price of HIKVISION DS-7232HQHI-K2 32-CH Turbo HD 1080P DVR in Bangladesh is 40,550৳ You can buy the HIKVISION DS-7232HQHI-K2 32-CH Turbo HD 1080P DVR at best price from our Website or visit any of our showrooms.
