| Storage |
| Storage |
Up to 10TB |
| Storage Slots |
SATA |
| Audio & Microphone |
| Audio Input |
Channel (RCA): 1-ch RCA |
| Audio Output |
Channel: 1-ch, RCA (Linear, 1 K ohm) |
| Audio |
Two way Audio: 1-ch, RCA (2.0 Vp-p, 1 K ohm) (using the first audio input) |
| Networking & Connectivity |
| Network Protocol |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP, HTTPS, ONVIF |
| Ethernet |
1 x RJ45 10M/100M self-adaptive Ethernet |
| Video Features |
| Video |
Number of Input Channel: 16 Channel Video Input Channel (BNC): 16 Channel Video Compression/Format: H.265 Pro+/ H.265 Pro/ H.265 Video Bit Rate: 32 Kbps to 4 Mbps IP Video Input: 2-ch (up to 18-ch) Analog & HD-TVI Video Input: 16-ch |
| Technical Info |
| Recording |
Video Recording Res.: 1080p Max. Video Recording Res.: 1080p Frame Rate: 30FPS Stream Type: Main Stream, Substream Dual Stream Support: Yes Synchronous Playback: 16-ch |
| Type |
TURBO HD DVR |
| Battery And Power |
| Power Supply |
12 VDC, 1.6 A |
| Power Consumption |
<- 7 W (without HDD) |
| Ports |
| VGA |
Video Output: 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz |
| USB |
2 x USB 2.0 |
| HDMI |
Video Output: 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz |
| Physical Specification |
| Color |
White |
| Dimension |
285 x 210 x 45mm |
| Weight |
<- 1.8 kg |
| Others |
| COMPRESSION STANDARD |
G.711u |
| Other Features |
Remote Connections: 128 CVBS Input: PAL/NTSC |
| Warranty Information |
| Warranty |
2 years |

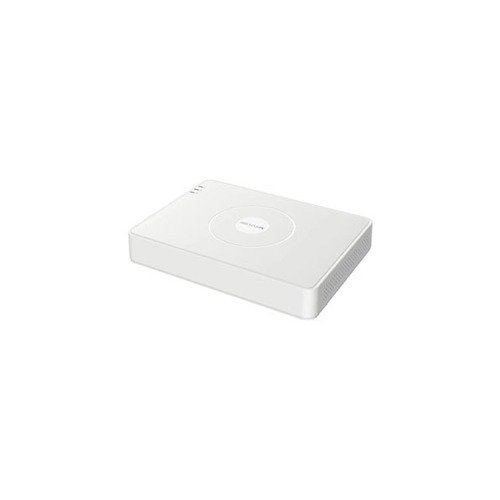

Hikvision DS-7116HGHI-M1 16 Channel DVR
Hikvision DS-7116HGHI-M1 is a cutting-edge 16-channel DVR designed to meet the demands of modern surveillance needs. With the capability to store up to 10TB of data through SATA storage slots, this DVR ensures that you can keep extensive footage without running out of space. The versatile audio features include a 1-channel RCA audio input and output, making it suitable for two-way communication, enhancing the security monitoring experience.
Equipped with robust networking capabilities, the DS-7116HGHI-M1 supports multiple protocols such as TCP/IP, PPPoE, and Hik-Connect, ensuring seamless connectivity to your network. The device features a single RJ45 Ethernet port, accommodating self-adaptive 10M/100M connections for reliable data transfer.
Video quality is paramount, and this DVR delivers exceptional performance with a maximum video recording resolution of 1080p at 30 frames per second. It supports a variety of video compression formats including H.265 Pro+ and H.265, optimizing storage without compromising quality. With 16 BNC video input channels and the ability to handle up to 18 IP video inputs, you can monitor multiple areas simultaneously.
Physical design is not overlooked; the Hikvision DS-7116HGHI-M1 is compact with dimensions of 285 x 210 x 45mm and weighs less than 1.8 kg, making it easy to install in various locations. This DVR also features dual-stream support, synchronous playback of all 16 channels, and multiple output options including HDMI and VGA, ensuring compatibility with a wide range of displays.
With a 2-year warranty and the ability to support up to 128 remote connections, the Hikvision DS-7116HGHI-M1 is a reliable and efficient choice for anyone seeking a high-performance surveillance solution.
