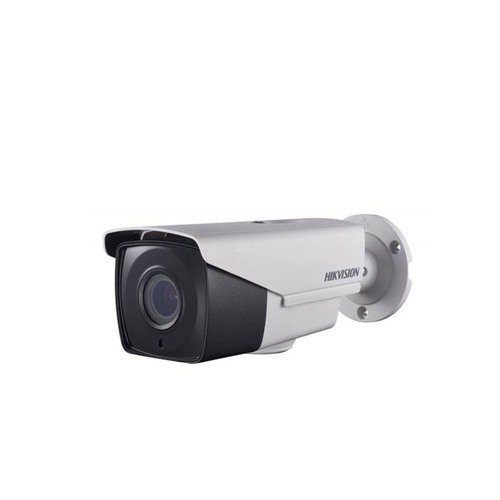

HikVision DS-2CE16D8T-IT3Z 2 MP Ultra Low-Light VF EXIR Bullet CC Camera

HikVision DS-2CE16D8T-IT3Z 2 MP Ultra Low-Light VF EXIR Bullet CC Camera

The HikVision DS-2CE16D8T-IT3Z is a cutting-edge 2 MP Ultra Low-Light VF EXIR Bullet CC Camera designed to deliver superior surveillance performance in a variety of conditions. Equipped with a powerful 2MP CMOS Image Sensor and supporting both PAL and NTSC signal systems, this camera ensures clear and detailed imaging with effective pixels measuring 1920(H) by 1080(V). Even in challenging low-light scenarios, the camera excels, boasting a minimum illumination of 0.005 Lux in color with F1.8 AGC ON, and it seamlessly transitions to 0 Lux with the assistance of IR technology. The 2.8mm to 12mm motorized varifocal lens, mounted on a φ14 lens mount, offers versatile coverage, while the wide adjustment range of Pan (0 – 360°), Tilt (0 – 90°), and Rotation (0 – 360°) ensures comprehensive monitoring capabilities. Day and Night functionality is enhanced by an IR cut filter with an auto-switch feature, guaranteeing optimal image quality around the clock. The camera's Wide Dynamic Range of 120dB further enhances image clarity, while the video frame rate reaches 1080p@25fps/1080p@30fps, ensuring smooth and detailed video capture. With support for Up the Coax technology, auto white balance, and essential features like brightness, sharpness, mirror, and Smart IR, the camera provides advanced customization options. Operating in a wide temperature range from -40 °C to 60 °C, and weatherproof with an IP67 rating, this camera is built to withstand diverse environmental conditions. The HikVision DS-2CE16D8T-IT3Z is powered by a 12 VDC±25% power supply, with an optional 24 VDC±25% variant, consuming a maximum of 9W. Its robust construction, along with a weight of approximately 900g, makes it a reliable and durable solution for comprehensive surveillance needs.

HikVision DS-2CE16D8T-IT3Z 2 MP Ultra Low-Light VF EXIR Bullet CC Camera Features

• Advanced Image Sensor: The HikVision DS-2CE16D8T-IT3Z is equipped with a cutting-edge 2MP CMOS image sensor, ensuring high-quality and detailed surveillance footage.
• Versatile Signal System: Supports both PAL and NTSC signal systems, providing compatibility with a wide range of monitoring and recording devices.
• Effective Pixels for Clarity: With 1920(H) by 1080(V) effective pixels, this camera delivers sharp and clear images, allowing for accurate identification and monitoring.
• Exceptional Low-Light Performance: Boasting a minimum color illumination of 0.005 Lux at F1.8 AGC ON and 0 Lux with IR, the camera excels in low-light conditions, ensuring visibility even in complete darkness.
• Flexible Shutter Time: The shutter time can be adjusted from 1/25(1/30) s to 1/50,000 s, providing users with control over exposure settings for optimal image quality.
• Motorized Vari-Focal Lens: Featuring a 2.8mm to 12mm motorized varifocal lens with a φ14 lens mount, the camera provides flexibility in focal length adjustments, catering to various surveillance needs.
• Comprehensive Adjustment Range: The camera offers a wide adjustment range, including Pan (0 – 360°), Tilt (0 – 90°), and Rotation (0 – 360°), ensuring effective coverage and monitoring of the surroundings.
• Day & Night Functionality: Equipped with an IR cut filter and auto-switching capability, the camera seamlessly transitions between day and night modes, maintaining optimal image quality 24/7.
• Impressive Wide Dynamic Range (WDR): With a 120dB Wide Dynamic Range, the camera enhances image quality in scenes with high contrast, capturing details in both bright and dark areas.
• High-Definition Video Output: Supports 1080p@25fps/1080p@30fps, delivering high-definition video output for smooth and detailed surveillance footage.
• Synchronization and Communication: Internal synchronization ensures accurate timing in capturing images, while the "Up the Coax" support facilitates convenient communication for system integration.
• Auto White Balance and Image Enhancement: The camera features auto white balance, along with support for Brightness, Sharpness, Mirror, and Smart IR functions, allowing users to customize image settings for optimal performance.
• Robust Operating Conditions: Designed to operate in challenging environments, the camera can withstand temperatures ranging from -40 °C to 60 °C (-40 °F – 140 °F) and humidity levels of 90% or less (non-condensing).
• Flexible Power Options: Supports 12 VDC±25% power supply, with additional options of -A: 12 VDC±25%, 24 VDC±25%, offering flexibility in power configurations for various installations.
• Weatherproof Design: With an IP67 rating, the camera is weatherproof, ensuring reliable performance in adverse weather conditions.
• Impressive Infrared Range: The camera's infrared range extends up to 40m, providing effective night-time surveillance capabilities and clear visibility in complete darkness.
• Seamless Communication Protocol: Utilizes the HIKVISION-C(Coaxitron) protocol for seamless communication and integration within HikVision surveillance systems.
• Compact Design with Easy Installation: With dimensions of 92mm×84.8mm×269.6mm (3.62”×3.34”×3.34”) and a weight of approximately 900g (1.98lb), the camera offers a compact design for easy installation while maintaining durability.
