| Image Sensor |
1/2.8" Progressive Scan CMOS |
| Effective Pixels |
2 MP |
| IR Distance |
Up to 30m |
| Type |
2.8mm, 4mm, 6mm fixed lens |
| Focal Length |
2.8mm, 4mm, 6mm |
| Angle of View |
136degree(2.8mm), 102degree(4mm), 62.3degree(6mm) |
| Dimension |
Camera: 69.7 mm × 67.9 mm × 171.4 mm (2.7" × 2.7" × 6.7")
With package: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6") |
| Weight |
Camera: 372g (0.8lb)
With package: 659g(1.5lb) |
| Power |
Power Supply :12 V DC ± 25%
Power Consumption : 12 VDC, 0.4 A, Max: 4.8W |
| Interface |
Audio : 1 Built-in mic, mono sound
Communication Interface : 1 RJ45 10M / 100M Ethernet interface
On-board storage : Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button : Yes |

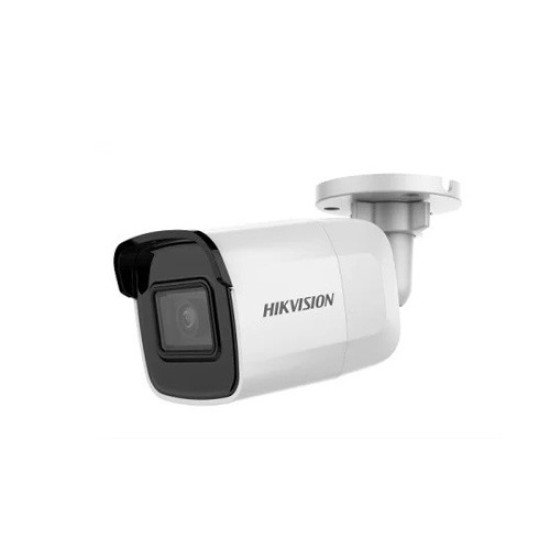

Hikvision DS-2CD2021G1-I 2 MP IR Fixed Network Bullet CC Camera
The Hikvision DS-2CD2021G1-I 2 MP IR Fixed Network Bullet CC Camera is a cutting-edge surveillance solution designed to deliver high-quality imaging and advanced features for various security applications. With a 1/2.8" Progressive Scan CMOS image sensor and 2 MP effective pixels, this camera ensures crisp and clear footage, making it ideal for both indoor and outdoor monitoring. Equipped with a fixed lens offering options of 2.8mm, 4mm, and 6mm focal lengths, the camera provides versatile coverage with a wide angle of view. The angle of view ranges from 136 degrees for the 2.8mm lens, 102 degrees for the 4mm lens, to 62.3 degrees for the 6mm lens. Whether you need wide-area surveillance or more focused monitoring, this camera adapts to various scenarios. For night-time surveillance, the camera incorporates IR technology with an impressive range of up to 30 meters, ensuring reliable performance in low-light conditions. The built-in microphone captures mono sound, adding an audio dimension to the surveillance capabilities. Compact and sturdy, the camera has dimensions of 69.7 mm × 67.9 mm × 171.4 mm, making it easy to install in different environments. Weighing only 372g (0.8lb), the camera is lightweight yet durable. The package dimensions are 216 mm × 121 mm × 118 mm, with a total weight of 659g (1.5lb), making it convenient for shipping and handling. The camera supports onboard storage with a built-in Micro SD/SDHC/SDXC slot, accommodating up to 128 GB of storage. This feature provides a backup storage option and ensures continuous recording even in the absence of network connectivity. With a power supply requirement of 12 V DC ± 25% and a low power consumption of 4.8W, the camera is energy-efficient, contributing to cost-effective operation. The RJ45 Ethernet interface facilitates seamless communication, and the reset button ensures easy troubleshooting. The Hikvision DS-2CD2021G1-I combines advanced imaging technology, robust construction, and user-friendly features, making it a reliable choice for those seeking a versatile and efficient network bullet camera for their surveillance needs.
Hikvision DS-2CD2021G1-I 2 MP IR Fixed Network Bullet CC Camera Features
- Image Sensor: Equipped with a 1/2.8" Progressive Scan CMOS image sensor, the camera delivers clear and detailed images, ensuring optimal surveillance quality.
- Effective Pixels: Boasting 2 MP (megapixel) resolution, the camera captures high-definition video for precise monitoring and analysis.
- IR Distance: With an impressive infrared (IR) distance of up to 30m, the camera provides reliable surveillance even in low-light or nighttime conditions.
- Lens Type: The camera offers flexibility with a choice of fixed lenses: 2.8mm, 4mm, and 6mm. This allows users to select the appropriate lens based on their specific monitoring needs.
- Focal Length and Angle of View: The selectable focal lengths of 2.8mm, 4mm, and 6mm provide different angles of view: 136 degrees (2.8mm), 102 degrees (4mm), and 62.3 degrees (6mm). This versatility ensures coverage of a wide range of areas.
- Dimension and Weight: The camera has a compact design with dimensions of 69.7 mm × 67.9 mm × 171.4 mm (2.7" × 2.7" × 6.7"). It is lightweight, weighing 372g (0.8lb), making installation and placement convenient.
- Power and Power Consumption: The camera operates on a 12 V DC power supply with a consumption of 0.4 A, max 4.8W. This energy-efficient design ensures cost-effective and reliable performance.
- Interface: Audio capabilities include a built-in microphone for mono sound. The communication interface features 1 RJ45 10M/100M Ethernet interface, facilitating network connectivity. The camera also offers on-board storage with a built-in Micro SD/SDHC/SDXC slot, supporting up to 128 GB for local video storage.
- Reset Button: The camera includes a reset button for convenient device management and troubleshooting.
- Advanced Features: The camera supports advanced features like motion detection, intrusion detection, and tampering alarm, enhancing security by alerting users to potential threats or unauthorized activities.
- Durability: Designed for outdoor use, the camera is built to withstand various weather conditions, ensuring reliable performance in challenging environments.
- Package Contents: The camera package includes dimensions of 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6"), with a total weight of 659g (1.5lb). The Hikvision DS-2CD2021G1-I stands out as a versatile and reliable network camera, suitable for a wide range of surveillance applications.
