Specification
| Camera Feature |
| Image Sensor |
1/3" Progressive Scan CMOS |
| Effective Pixels |
4 Megapixel |
| IR Distance |
Up to 30m |
| Lens |
| Type |
Fixed |
| Focal Length |
2.8 and 4 mm optional |
| Aperture |
F1.6 |
| Angle of View |
2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°
4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93° |
| Others |
Lens Mount: M12 |
| Physical Specification |
| Dimension |
Ø 121.4 mm × 97.7 mm (Ø 4.8" × 3.8") |
| Weight |
Approx. 550 g (1.2 lb.) |
| Power |
12 VDC ± 25%, 0.5 A, max. 6 W, Ø 5.5 mm coaxial power plug, reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 7.5 W |
| Interface |
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Warranty |
| Warranty |
1 Year |

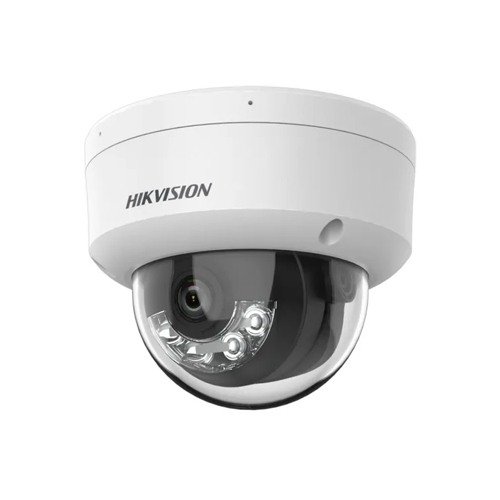

Hikvision DS-2CD1143G2-LIU 4MP Smart Hybrid Light Fixed Dome Network Camera
Hikvision DS-2CD1143G2-LIU is a state-of-the-art 4MP Smart Hybrid Light fixed dome network camera designed for versatile outdoor surveillance. Featuring a 1/3" Progressive Scan CMOS image sensor, this camera delivers high-quality imaging with a maximum resolution of 2560 x 1440 pixels, ensuring that every detail is captured with clarity. The camera is equipped with a fixed lens available in 2.8 mm and 4 mm options, providing flexibility in installation and allowing users to choose the best focal length for their specific monitoring needs.
With a wide horizontal field of view of 98° for the 2.8 mm lens and 78° for the 4 mm lens, the DS-2CD1143G2-LIU is ideal for covering large areas. Its advanced Smart Hybrid Light technology enhances visibility in low-light conditions, combining infrared and white light illumination to provide clear images even in complete darkness, with an IR distance of up to 30 meters. The camera is designed for durability and ease of installation, measuring Ø 121.4 mm × 97.7 mm and weighing approximately 550 g. It supports Power over Ethernet (PoE), allowing for flexible installation options without the need for additional power sources. The device also features robust security measures, including password protection and watermarking, ensuring that your surveillance footage remains secure.
Additionally, the DS-2CD1143G2-LIU supports advanced features such as motion detection and human and vehicle detection, making it a smart choice for modern security needs. With a 1-year warranty, this camera is an excellent investment for those seeking a reliable, high-performance surveillance solution that combines advanced imaging technology with user-friendly functionality.
Buying Guideline of Hikvision DS-2CD1143G2-LIU 4MP Dome Network Camera
Choosing the right surveillance camera is essential for ensuring reliable security performance. The Hikvision DS-2CD1143G2-LIU 4MP Dome Network Camera offers strong image clarity, advanced detection features, and stable low-light performance. Before buying, consider the key points below to ensure it fits your security needs perfectly.
Key Buying Guidelines
-
Image Quality & Resolution
Ensure the 4MP resolution meets your requirement for clarity, especially for identifying faces, objects, or license plates.
-
Lighting Conditions & Night Vision
Check whether its built-in IR and enhanced low-light technology support your environment—indoor or outdoor, day or night.
-
Field of View & Installation Area
Analyze your coverage area to confirm the dome design and angle of view match your monitoring needs.
-
Smart Features & Detection
Look for advanced functions such as motion detection, human/vehicle classification, and smart alerts depending on your use case.
-
Network Compatibility & Storage
Make sure it supports your existing NVR, network setup, and desired storage method (NVR, NAS, cloud).
-
Build Quality & Weather Protection
Confirm the dome camera’s protection rating (e.g., IP ratings) if you plan to install it outdoors or in challenging environments.
-
Power Options (PoE Support)
Check if Power over Ethernet aligns with your wiring setup for easier installation and reduced cable clutter.
To explore similar options, you can also check the Hikvision DS-2CD1027G2H-LIU 2MP ColorVu with Smart Hybrid Light Network Camera for strong low-light performance. You can browse more products in our IP Camera and Hikvision categories, all available at Tech Valley for convenient linking and comparison.
