| CPU |
LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU |
| Chipset |
Intel® Z790 Express Chipset |
| Memory |
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics |
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3 |
| Audio |
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out |
| LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Storage Interface |
CPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)
6 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB |
Chipset:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support
1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| I/O Controller |
iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control |
| Bundled Software |
liUse of Norton® Internet Security (OEM version)
LAN bandwidth management software-censed AMI UEFI BIOS |
| Operating System |
3. PnP 1.Support for Windows 11 64-bit
Support for Windows 10 64-bit0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor |
ATX Form Factor; 30.5cm x 24.4cm |

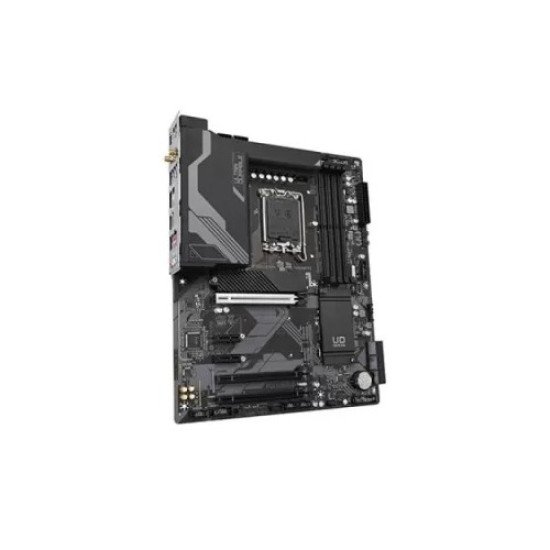

Gigabyte Z790 UD AX Motherboard
The Gigabyte Z790 UD AX Motherboard is a robust and versatile ATX platform designed to cater to the diverse needs of PC enthusiasts, gamers, and content creators. Powered by the Intel® Z790 Express Chipset and built around the LGA1700 socket, this motherboard offers extensive support for the latest 13th and 12th Generation Intel® Core™ processors, Pentium® Gold, and Celeron® CPUs, ensuring high performance and seamless compatibility.Memory capabilities are impressive, featuring four DDR5 DIMM sockets that collectively support up to a whopping 192 GB of system memory, with individual DIMM capacities reaching 48 GB. The motherboard employs a dual-channel memory architecture, compatible with ECC un-buffered DIMM 1Rx8/2Rx8 memory modules (operating in non-ECC mode) as well as non-ECC un-buffered DIMM 1Rx8/2Rx8/1Rx16 configurations. Extreme Memory Profile (XMP) modules further enhance memory performance for optimized system responsiveness.In terms of visuals, the onboard graphics interface delivers high-definition output through its HDMI and DisplayPort outputs. Users can enjoy maximum resolutions of 4096×2160@60 Hz (HDMI) and 4096×2304@60 Hz (DisplayPort), adhering to HDMI 2.0 and DisplayPort 1.2 standards, respectively.Audio experiences are finely tuned with the Realtek® Audio CODEC, providing 2/4/5.1/7.1-channel high-definition audio support. Customizable audio jack functionality allows users to tailor their audio setups according to their preferences, with additional support for S/PDIF Out for expanded connectivity options.Networking capabilities are robust, featuring a Realtek® 2.5GbE LAN chip that offers ultra-fast 2.5 Gbps, 1 Gbps, and 100 Mbps Ethernet connectivity, ensuring seamless online experiences.Storage solutions are abundant, incorporating M.2 connectors supporting PCIe 4.0 x4/x2 SSDs, SATA 6Gb/s connectors, and RAID support for both NVMe and SATA storage devices.This motherboard also boasts an array of USB ports, including USB Type-C®, Gen 2, and Gen 1 support, providing versatile connectivity options. Additionally, it includes an iTE® I/O Controller Chip for comprehensive hardware monitoring and bundled software like Norton® Internet Security, offering robust protection for the system.With its feature-rich design, compatibility with Windows 10 and Windows 11 64-bit operating systems, and comprehensive hardware support, the Gigabyte Z790 UD AX Motherboard stands as a reliable and powerful foundation for diverse computing needs.
