| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium Gold and Celeron Processors<br> (Go to GIGABYTE's website for the latest CPU support list.)<br> L3 cache varies with CPU | |
| Chipset | Intel Z790 Express Chipset | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek® Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> * You can change the functionality of an audio jack using the audio software.<br> To configure<br> 7.1-channel audio, access the audio software for audio settings.<br> Support for S/PDIF Out | |
| Expansion Slots | ||
| PCI | CPU:<br> - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)<br> * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics<br> card is to be installed, be sure to install it in the PCIEX16 slot.<br> Chipset:<br> - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)<br> - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)<br> - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) | |
| Memory | ||
| Slots | 4 x DDR5 DIMM sockets | |
| Maximum Memory | up to 192 GB (48 GB single DIMM capacity) of system memory | |
| Type | DDR5 | |
| Supported Memory | 14th and 13th Generation Intel Core i9/i7 Pocessors:<br> - Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) /<br> 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules<br> 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors:<br> - Support for DDR5 4800/4400 MT/s memory modules<br> Dual channel memory architecture<br> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for Extreme Memory Profile (XMP) memory modules<br> (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules,<br> please refer to "Memory Support List" on GIGABYTE's website for more information.) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support:<br> - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> * Support for HDMI 2.1 version and HDCP 2.3.<br> ** Support for native HDMI 2.1 TMDS compatible ports.<br> - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz<br> * Support for DisplayPort 1.2 version and HDCP 2.3<br> (Graphics specifications may vary depending on CPU support.) | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices<br> RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| Display Port (s) | 1 x DisplayPort | |
| USB (s) | Chipset:<br> - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support<br> - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header<br> - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel<br> - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)<br> - 2 x USB 2.0/1.1 ports on the back panel<br> Chipset+USB 2.0 Hub:<br> - 4 x USB 2.0/1.1 ports, available through the internal USB headers | |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | CPU:<br> - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)<br> Chipset:<br> - 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)<br> - 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)<br> - 4 x SATA 6Gb/s connectors | |
| Audio | 3 x audio jacks | |

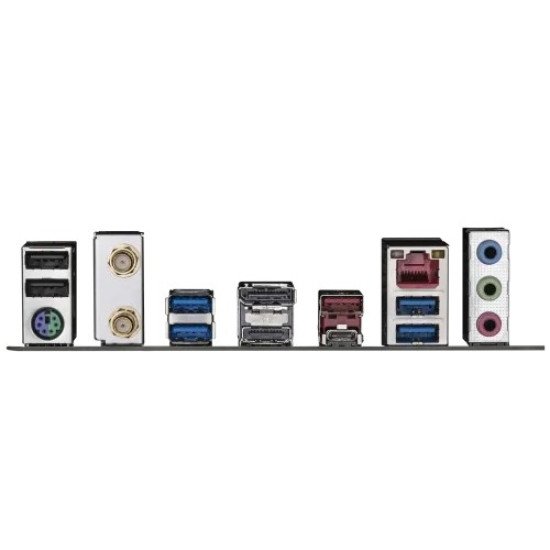

| Internal I/O Ports | Internal I/O Connectors<br> 1 x 24-pin ATX main power connector<br> 2 x 8-pin ATX 12V power connectors<br> 1 x CPU fan header<br> 1 x CPU fan/water cooling pump header<br> 3 x system fan headers<br> 1 x system fan/water cooling pump header<br> 2 x addressable LED strip headers<br> 3 x M.2 Socket 3 connectors<br> 4 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x S/PDIF Out header<br> 1 x USB Type-C header, with USB 3.2 Gen 1 support<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 2 x Thunderbolt add-in card connectors<br> 1 x reset button<br> 1 x Q-Flash Plus button<br> 1 x reset jumper<br> 1 x Clear CMOS jumper<br> Back Panel Connectors<br> 1 x PS/2 keyboard/mouse port<br> 1 x USB Type-C port, with USB 3.2 Gen 2 support<br> 1 x USB 3.2 Gen 2 Type-A port (red)<br> 4 x USB 3.2 Gen 1 ports<br> 2 x USB 2.0/1.1 ports<br> 1 x HDMI port<br> 1 x DisplayPort<br> 1 x RJ-45 port<br> 3 x audio jacks | |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| Others Information | ||
| Bundled Software | Norton Internet Security (OEM version)<br> cFosSpeed | |
| Special Features | Support for GIGABYTE Control Center (GCC)<br> * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard<br> specifications.<br> Support for Q-Flash<br> Support for Q-Flash Plus<br> Support for Smart Backup | |
| Warranty Information | ||
| Warranty | 3 years | |

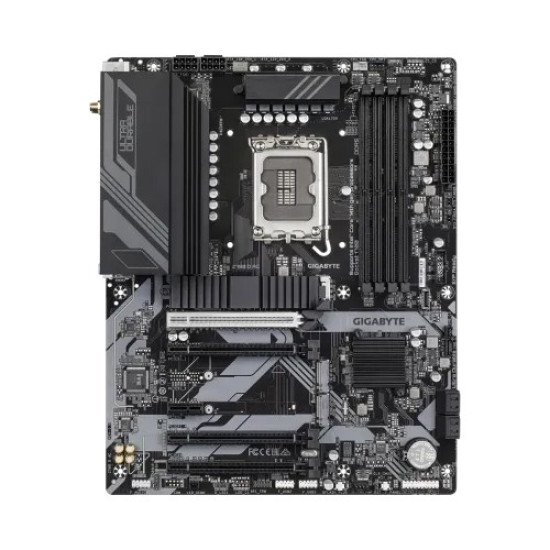

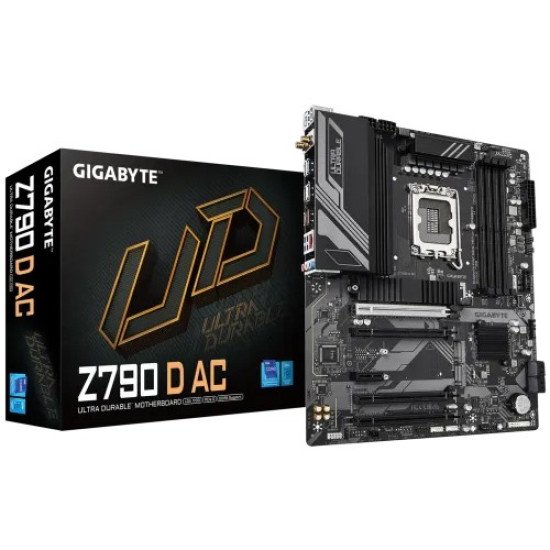

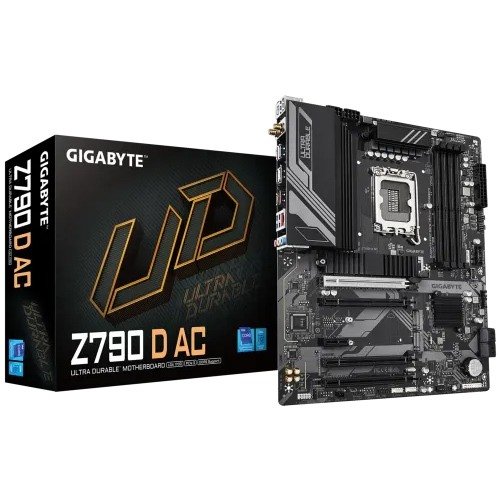

The GIGABYTE Z790 D DDR5 ATX Motherboard is a high-performance and future-ready platform built for gamers, PC enthusiasts, and professionals who require power, stability, and expandability. Powered by the Intel Z790 Express Chipset, it supports 14th, 13th, and 12th Generation Intel® Core processors, along with Pentium Gold and Celeron CPUs via the LGA1700 socket, ensuring wide compatibility for modern Intel builds. Designed with DDR5 memory support, the motherboard features four DIMM slots with dual-channel architecture, allowing up to 192GB of system memory. With support for DDR5 speeds up to 7600MHz (OC) on compatible CPUs and Intel XMP profiles, users benefit from faster bandwidth, smoother multitasking, and improved system efficiency—ideal for gaming, content creation, and demanding workloads. For expansion, the Z790 D includes a PCIe 5.0 x16 slot, delivering maximum bandwidth for next-generation graphics cards or NVMe SSDs. Additional PCIe 4.0 and PCIe 3.0 slots provide flexibility for expansion cards. Storage options are robust, featuring three M.2 slots (PCIe 4.0 and SATA support) and four SATA 6Gb/s ports, with full RAID 0/1/5/10 support for both NVMe and SATA drives. Connectivity is handled by a Realtek 2.5GbE LAN chip, offering fast and stable wired networking. Display outputs include HDMI 2.1 and DisplayPort, supporting up to 4K resolution for crisp visuals. A wide range of USB ports, including USB Type-C and USB 3.2 Gen 2, ensures seamless peripheral connectivity. Enhanced with Realtek HD Audio, Q-Flash Plus, GIGABYTE Control Center, TPM support, and reliable power delivery, the GIGABYTE Z790 D DDR5 ATX Motherboard is a dependable choice for high-end desktop systems. Backed by a 3-year manufacturing warranty, it delivers excellent performance, durability, and long-term value.
The latest price of GIGABYTE Z790 D DDR5 ATX Motherboard in Bangladesh is 28,500৳ You can buy the GIGABYTE Z790 D DDR5 ATX Motherboard at best price from our Website or visit any of our showrooms.
