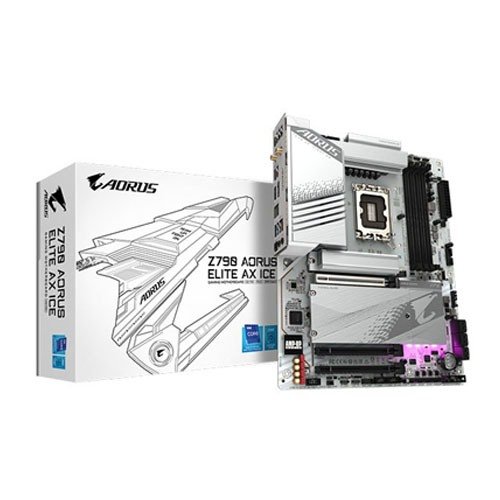

GIGABYTE Z790 A ELITE AX ICE DDR5 Motherboard

GIGABYTE Z790 A ELITE AX ICE DDR5 Motherboard

The GIGABYTE Z790 A ELITE AX ICE DDR5 Motherboard represents a cutting-edge and feature-rich platform for enthusiasts and professionals seeking top-tier performance for their computing needs. Compatible with the 13th and 12th generation Intel Core, Pentium Gold, and Celeron processors, this motherboard embraces the LGA1700 socket, ensuring broad compatibility for users seeking high-end processing power. Focusing on memory capabilities, the Z790 A ELITE AX ICE supports DDR5 memory modules with impressive frequencies, ranging from 4800MHz to an overclockable 7600MHz. Its four DDR5 DIMM sockets can accommodate up to 192GB of system memory, offering ample space for memory-intensive applications and tasks. The motherboard adopts a dual-channel memory architecture, supporting ECC un-buffered DIMM modules operating in non-ECC mode, as well as non-ECC un-buffered DIMM modules and Extreme Memory Profile (XMP) memory modules for optimized performance. In terms of graphics, the motherboard features a comprehensive setup with a HDMI port supporting a maximum resolution of 4096x2160@60Hz and a DisplayPort supporting 4096x2304@60Hz. With PCIe 5.0 support in the CPU slot and PCIe 4.0 support in the chipset slots, users can take advantage of high-speed data transfer for graphics cards and storage devices. Storage options are diverse, with multiple M.2 connectors supporting PCIe 4.0 x4/x2 SSDs, SATA and PCIe 4.0 x4 SSDs, and six SATA 6Gb/s connectors. RAID support for both NVMe SSDs and SATA storage devices adds to the versatility, ensuring data security and performance optimization.
