| Basic Information | ||
| Supported CPU | Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 <br>processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the <br>LGA1200 package | |
| Chipset | Intel Z490 Express Chipset | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Memory Specifications | ||
| Type | Dual channel memory architecture | |
| Slots | 4 x DDR4 DIMM | |
| Supported Memory | Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ <br>4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / <br>3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / <br>3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules<br> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for Extreme Memory Profile (XMP) memory modules | |
| Max. Memory | 128 GB | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16)<br> 1 x PCI Express x16 slot, running at x8 (PCIEX8)<br> 1 x PCI Express x16 slot, running at x4 (PCIEX4)<br> 2 x PCI Express x1 slots | |
| M.2 Socket | 2 x M.2 connectors (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD <br>support) (M2A_SB/M2M_SB) | |
| Graphics | ||
| Max Shared Memory | 512MB | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support:<br> 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz<br> Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies<br> Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz | |
| USB (s) | Chipset:<br> 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support<br> 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header<br> 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel<br> 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB <br>header)<br> Chipset+2 USB 2.0 Hubs:<br> 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB <br>headers) | |
| LAN Port (s) | Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)<br> Intel Wi-Fi 6 AX201<br> WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band<br> BLUETOOTH 5.1<br> Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
| Supported Storage | 2 x M.2 connectors (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD <br>support) (M2A_SB/M2M_SB)<br> 6 x SATA 6Gb/s connectors<br> Support for RAID 0, RAID 1, RAID 5, and RAID 10<br> Intel Optane Memory Ready | |
| Audio | Realtek ALC1220-VB codec<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> Support for S/PDIF Out | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x 4-pin ATX 12V power connector<br> 1 x CPU fan header<br> 1 x water cooling CPU fan header<br> 4 x system fan headers<br> 2 x system fan/water cooling pump headers<br> 2 x addressable LED strip headers<br> 2 x RGB LED strip headers<br> 6 x SATA 6Gb/s connectors<br> 2 x M.2 Socket 3 connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB Type-C header, with USB 3.2 Gen 1 support<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 2 x Thunderbolt add-in card connectors<br> 1 x Clear CMOS jumper<br> 2 x temperature sensor headers<br> 1 x Q-Flash Plus button | |
| Others Information | ||
| Special Features | Support for APP Center<br> @BIOS<br> EasyTune<br> Fast Boot<br> Game Boost<br> ON/OFF Charge<br> RGB Fusion<br> Smart Backup<br> System Information Viewer<br> Support for Q-Flash Plus<br> Support for Q-Flash<br> Support for Xpress Install | |
| Warranty Information | ||
| Manufacturing Warranty | 03 Years | |

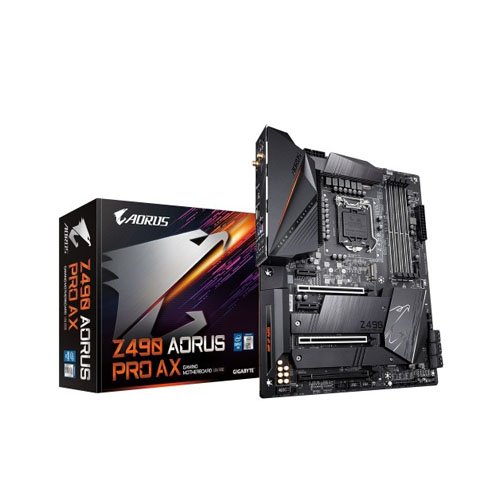

The Gigabyte Z490 Aorus Pro AX 10th Gen WiFi ATX Motherboard is a high-performance motherboard designed for gamers, content creators, and PC enthusiasts seeking unmatched power, stability, and connectivity. Built on the Intel Z490 chipset, it fully supports 10th Gen Intel Core processors, enabling advanced multitasking, high-speed gaming, and smooth performance for demanding applications. With its robust 12+1 digital power phase design and premium thermal solutions, this motherboard ensures consistent power delivery and optimal cooling even under heavy workloads, making it ideal for overclocking enthusiasts. Equipped with dual-channel DDR4 memory support of up to 128GB and ultra-fast memory speeds, the Z490 Aorus Pro AX guarantees snappy system responsiveness and seamless gaming experiences. For storage, it offers multiple M.2 slots with PCIe 3.0/4.0 support and advanced NVMe RAID options, allowing for rapid load times and efficient data handling. Networking is enhanced by the integrated Intel Wi-Fi 6 802.11ax module and 2.5GbE LAN, ensuring low-latency, high-speed connections for online gaming and streaming. The motherboard also boasts a rich set of connectivity options, including USB 3.2 Gen 2 ports, HDMI, DisplayPort, and a host of expansion slots for graphics cards and other peripherals. Its sleek Aorus RGB Fusion 2.0 lighting system allows users to customize and synchronize lighting effects across compatible devices, giving the build a visually striking appearance. With high-quality capacitors, reinforced PCIe slots, and advanced audio solutions featuring Realtek ALC1220-VB, this motherboard combines durability, performance, and immersive audio for the ultimate desktop experience. Whether building a powerhouse gaming rig or a professional workstation, the Gigabyte Z490 Aorus Pro AX 10th Gen WiFi ATX Motherboard delivers cutting-edge features and reliability.
Designed for gamers and professionals, this motherboard offers top-tier performance, connectivity, and durability. Key features include:
The latest price of Gigabyte Z490 Aorus Pro AX 10th Gen WiFi ATX Motherboard in Bangladesh is 25,300৳ You can buy the Gigabyte Z490 Aorus Pro AX 10th Gen WiFi ATX Motherboard at best price from our Website or visit any of our showrooms.
