| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for:<br> AMD Ryzen™ 9000 Series Processors/<br> AMD Ryzen™ 8000 Series Processors/<br> AMD Ryzen™ 7000 Series Processors<br> (Go to GIGABYTE's website for the latest CPU support list.) | |
| Form Factor | Mini-ITX Form Factor; 17.0cm x 17.0cm | |
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz<br> * Support for DisplayPort 1.4 version and HDR.<br> Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> * Support for HDMI 2.1 version and HDCP 2.3, and HDR.<br> ** Support for native HDMI 2.1 TMDS compatible ports.<br> (Graphics specifications may vary depending on CPU support.) | |
| Operating System | Support for Windows 11 64-bit | |
| Chipset | ||
| Chipset | AMD X870 | |
| Input Devices | ||
| Expansion Slot | 1 x PCI Express x16 slot, integrated in the CPU:<br> AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode<br> AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode<br> AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode<br> * The PCIEX16 slot can only support a graphics card or an NVMe SSD. | |
| Motherboard | ||
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Memory | Support for DDR5 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modulesB<br> 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules<br> (The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) | |
| Connector & Ports | ||

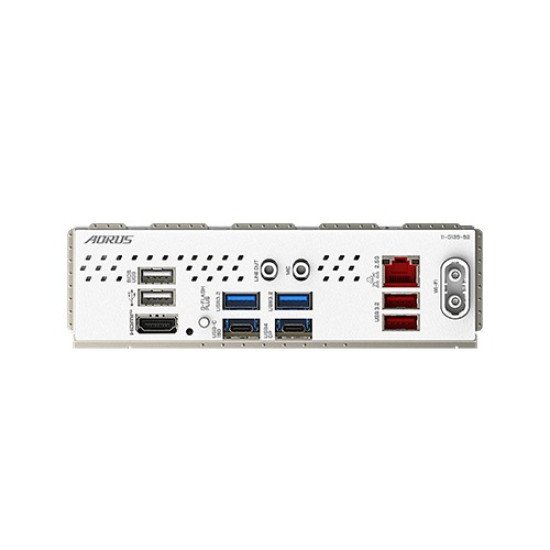

| USB (s) | CPU+ASMedia USB4® controller: - 1 x USB4® USB Type-C® port on the back panel<br> CPU: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support<br> - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel<br> Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header<br> - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)<br> - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) | |
| LAN Port (s) | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless Communication module | Realtek® Wi-Fi 7 RTL8922AE<br> - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands<br> - BLUETOOTH 5.4<br> - Support for 11be 160MHz wireless standard<br> (Actual data rate may vary depending on environment and equipment.)<br> * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no supportdriver for Windows 10.)<br> ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. | |
| Audio | Realtek® ALC4080 CODEC<br> High Definition Audio<br> 2-channel | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x CPU fan header<br> 1 x CPU fan/water cooling pump header<br> 1 x system fan header<br> 2 x addressable RGB Gen2 LED strip headers<br> 1 x RGB LED strip header<br> 2 x M.2 Socket 3 connectors<br> 2 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x speaker headerV 1 x front panel audio header (routed from the adapter card on the rear panel)<br> 1 x USB Type-C® header, with USB 3.2 Gen 2 support<br> 1 x USB 3.2 Gen 1 header<br> 1 x USB 2.0/1.1 header<br> 1 x reset jumper<br> 1 x Clear CMOS jumper<br> 1 x chassis intrusion header<br> | |
| Ports & Slots | ||
| Features | Support for GIGABYTE Control Center (GCC)<br> * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.<br> Support for Q-Flash<br> Support for Q-Flash Plus<br> Support for Smart Backup | |
| External Features | ||
| Expansion Slots | 1 x PCI Express x16 slot, integrated in the CPU:V AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode<br> AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode<br> AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode<br> * The PCIEX16 slot can only support a graphics card or an NVMe SSD. | |
| Warranty Information | ||
| Warranty | 3 Years | |
The GIGABYTE X870I AORUS PRO ICE is a premium Mini-ITX motherboard designed for high-performance, compact gaming and content creation setups. Powered by the latest AMD X870 chipset and compatible with AMD Ryzen™ 9000, 8000, and 7000 Series processors, it delivers cutting-edge performance and next-generation connectivity in a sleek and efficient form factor. Engineered for speed and stability, this motherboard supports DDR5 memory up to 8400(OC) MT/s and a maximum capacity of 128GB across dual channels, ensuring ultra-fast data throughput and enhanced multitasking. With support for AMD EXPO™ and Intel XMP memory profiles, overclocking is smooth and reliable. The X870I AORUS PRO ICE features an integrated AMD Radeon™ Graphics processor, offering USB4 Type-C and HDMI 2.1 video outputs with support for 4K resolution up to 240Hz, making it ideal for high-definition displays and creative workflows. Connectivity options are comprehensive, including one PCIe 5.0 x16 slot, two M.2 slots (PCIe 5.0 and 4.0), and two SATA 6Gb/s ports, supporting advanced RAID configurations for both NVMe and SATA storage. For network and wireless performance, it includes Realtek® 2.5GbE LAN and Wi-Fi 7 (802.11be) with Bluetooth 5.4, ensuring ultra-fast and reliable connections for gaming, streaming, and data transfers. The rear I/O panel offers an impressive selection of ports, including USB4 Type-C, USB 3.2 Gen 2 and Gen 1, HDMI, and dual audio jacks powered by the Realtek® ALC4080 audio codec, delivering crystal-clear sound quality. Built for enthusiasts, it supports Q-Flash Plus, Smart Backup, and GIGABYTE Control Center (GCC) for seamless updates and system management. Compact yet powerful, the GIGABYTE X870I AORUS PRO ICE redefines what a Mini-ITX motherboard can deliver—unparalleled performance, versatility, and style in a small footprint.
The latest price of GIGABYTE X870I AORUS PRO ICE AMD Motherboard in Bangladesh is 67,500৳ You can buy the GIGABYTE X870I AORUS PRO ICE AMD Motherboard at best price from our Website or visit any of our showrooms.
