| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for:<br> AMD Ryzen 9000 Series Processors/<br> AMD Ryzen 8000 Series Processors/<br> AMD Ryzen 7000 Series Processors | |
| General | ||
| OS | Support for Windows 11 64-bit | |
| Physical Specification | ||
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Chipset | ||
| Chipset | AMD X870 | |
| Input Devices | ||

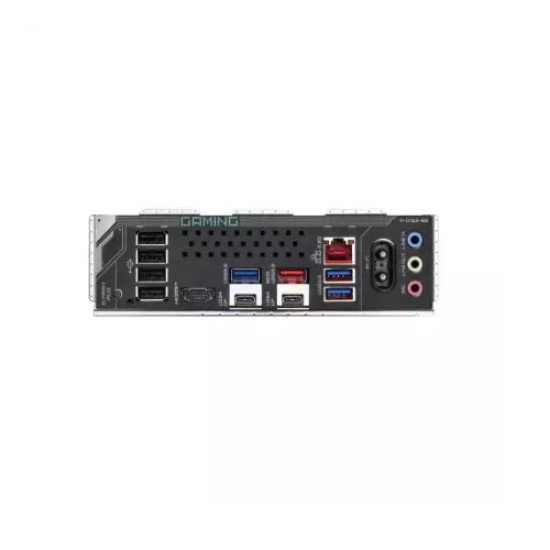

| External I/O Ports | 1 x Q-Flash Plus button<br> 2 x antenna connectors (2T2R)<br> 1 x HDMI port(Note)<br> 2 x USB4 USB Type-C ports (DisplayPort)<br> 1 x USB 3.2 Gen 2 Type-A port (red)<br> 3 x USB 3.2 Gen 1 ports<br> 4 x USB 2.0/1.1 ports<br> 1 x RJ-45 port<br> 3 x audio jacks | |
| Motherboard | ||
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Memory | Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules<br> 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory<br> Dual channel memory architecture<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules | |
| Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:<br> AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode<br> AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode<br> AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode<br> Chipset:<br> - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller:<br> - 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz<br> * Support for DisplayPort 1.4 version and HDR.<br> Integrated Graphics Processor with AMD Radeon Graphics support:<br> - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| Connectivity | ||
| Bluetooth | - BLUETOOTH 5.4<br> - Support for 11be 160MHz wireless standard | |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| USB Port(s) | CPU+ASMedia USB4 controller:<br> - 2 x USB4 USB Type-C ports on the back panel<br> CPU:<br> - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel<br> - 1 x USB 3.2 Gen 1 port on the back panel<br> CPU+USB 2.0 Hub:<br> - 4 x USB 2.0/1.1 ports on the back panel<br> Chipset:<br> - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the <br>internal USB header<br> - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)<br> - 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Connector & Ports | ||
| RAID | 4 x SATA 6Gb/s connectors<br> <br> RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices | |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:<br> AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs<br> AMD Ryzen 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs<br> AMD Ryzen 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs<br> 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs<br> 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs | |
| Audio | Realtek Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x 4-pin ATX 12V power connector<br> 1 x CPU fan header<br> 1 x CPU fan/water cooling pump header<br> 4 x system fan headers<br> 3 x addressable RGB Gen2 LED strip headers<br> 1 x RGB LED strip header<br> 4 x SATA 6Gb/s connectors<br> 3 x M.2 Socket 3 connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB Type-C header, with USB 3.2 Gen 2x2 support<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 <br>SPI 2.0/GC-TPM2.0 SPI V2 module only)<br> 1 x power button<br> 1 x reset button<br> 1 x reset jumper<br> 1 x Clear CMOS jumper | |
| Network & Connectivity | ||
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| WiFi | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)<br> <br> - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands | |
| Others Information | ||
| Special Features | Support for GIGABYTE Control Center (GCC)<br> Support for Q-Flash<br> Support for Q-Flash Plus<br> Support for Smart Backup<br> I/O Controller<br> iTE I/O Controller Chip<br> H/W Monitoring<br> Voltage detection<br> Temperature detection<br> Fan speed detection<br> Water cooling flow rate detection<br> Fan fail warning<br> Fan speed control<br> | |
| Warranty Information | ||
| Warranty | 03 years | |

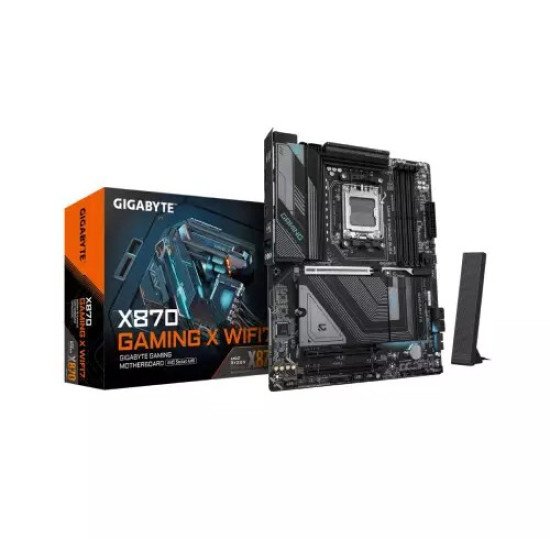

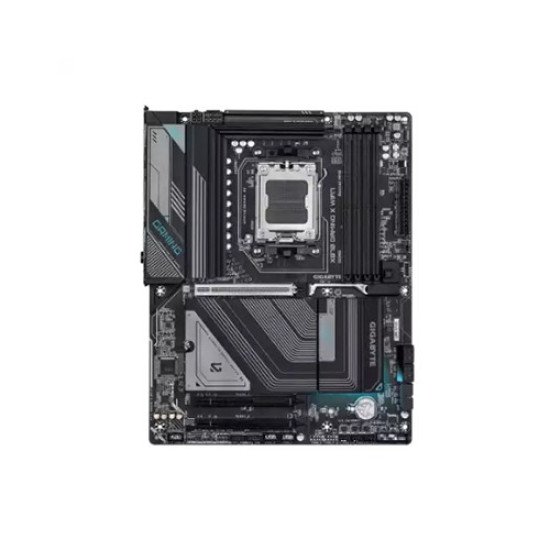

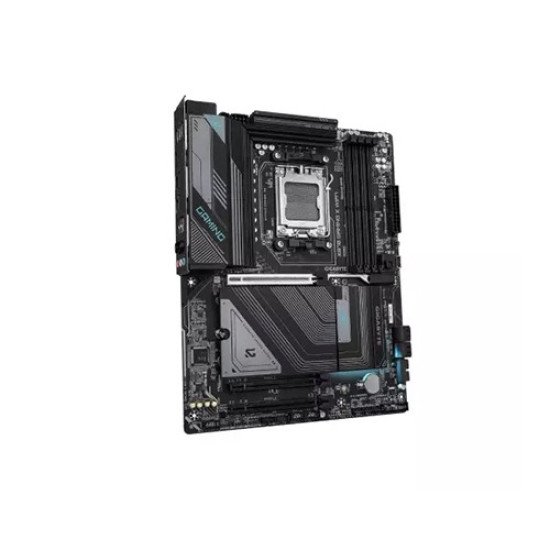

The Gigabyte X870 GAMING X WIFI7 is a high-performance ATX motherboard designed for AMD enthusiasts seeking top-tier computing power, advanced connectivity, and robust overclocking capabilities. Supporting the latest AMD Ryzen 9000, 8000, and 7000 Series processors via the AM5 socket, this motherboard ensures seamless compatibility and future-proof performance. Powered by the AMD X870 chipset, it provides a stable and feature-rich platform for gamers, content creators, and PC enthusiasts. Memory support is extensive, with four DDR5 DIMM slots accommodating up to 256 GB of high-speed memory. It supports frequencies up to DDR5-8200 (OC) and is compatible with AMD EXPO and XMP profiles, enabling easy overclocking and optimal system performance. Storage options are versatile, including three M.2 connectors and four SATA 6Gb/s ports, with support for RAID 0, 1, 5, and 10 configurations. PCIe connectivity is future-ready, featuring a PCIe 5.0 x16 slot for high-end graphics cards and additional PCIe slots for expansion. Graphics are well-supported with integrated AMD Radeon Graphics, offering HDMI and USB4 Type-C ports capable of high-resolution output up to 4K at 60 Hz and 3840x2160 at 240 Hz respectively. Networking is advanced, with 2.5GbE LAN, Wi-Fi 7, and Bluetooth 5.4, ensuring low-latency wired and wireless connectivity. The X870 GAMING X WIFI7 also boasts comprehensive I/O options, including USB 3.2 Gen 2x2, USB4 Type-C, and legacy USB ports, alongside robust audio support with a Realtek High Definition Audio CODEC. Special features such as Q-Flash Plus, GIGABYTE Control Center, and Smart Backup simplify BIOS updates, system monitoring, and data protection. Physically, the motherboard adheres to the ATX form factor (30.5cm x 24.4cm) and includes multiple fan headers, RGB headers, and advanced hardware monitoring for temperature, voltage, and cooling control. Supporting Windows 11 64-bit and backed by a three-year warranty, the Gigabyte X870 GAMING X WIFI7 is a comprehensive solution for cutting-edge gaming and productivity setups.
The latest price of Gigabyte X870 GAMING X WIFI7 Motherboard in Bangladesh is 37,000৳ You can buy the Gigabyte X870 GAMING X WIFI7 Motherboard at best price from our Website or visit any of our showrooms.
