| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for AMD Ryzen 9000, 8000 & 7000 Series Processors | |
| Chipset | AMD X870 | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel | |
| Type | DDR5 | |
| Memory Specifications | ||
| Maximum Memory | up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Slots | 4 DIMMs | |
| Supported Memory | Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules<br> <br> (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:<br> AMD Ryzen™ 900/7000 Series Processors support PCIe 5.0 x16 mode<br> AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode<br> AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode<br> * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset:<br> - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) | |
| Motherboard | ||
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:<br> AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs<br> AMD Ryzen™ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs<br> AMD Ryzen™ 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs<br> 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs<br> 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs<br> * The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2C_SB connector will become unavailable when a PCIe 4.0 x4 SSD is installed in the M2B_SB connector.<br> 4 x SATA 6Gb/s connectors | |
| Graphics | ||
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4 Controller: - 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz<br> * Support for DisplayPort 1.4 version and HDR.<br> Integrated Graphics Processor with AMD Radeon™ Graphics support:<br> - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> * Support for HDMI 2.1 version, HDCP 2.3, and HDR.<br> ** Support native HDMI 2.1 TMDS compatible ports. | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices<br> * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.<br> RAID 0, RAID 1, and RAID 10 support for SATA storage devices<br> | |
| USB (s) | CPU+ASMedia USB4 controller:<br> - 2 x USB4® USB Type-C® ports on the back panel<br> CPU:<br> - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel<br> - 1 x USB 3.2 Gen 1 port on the back panel<br> Chipset+2 USB 2.0 Hubs:<br> - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)<br> Chipset:<br> - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header<br> - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)<br> - 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless Communication module | Realtek Wi-Fi 6 RTL8851BE (PCB rev. 1.0)<br> - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands<br> - BLUETOOTH 5.3<br> - Support for 11ax 80MHz wireless standard<br> (Actual data rate may vary depending on environment and equipment.) | |
| Audio | Realtek Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x 4-pin ATX 12V power connector<br> 1 x CPU fan header<br> 1 x CPU fan/water cooling pump header<br> 4 x system fan headers<br> 3 x addressable RGB Gen2 LED strip headers<br> 1 x RGB LED strip header<br> 4 x SATA 6Gb/s connectors<br> 3 x M.2 Socket 3 connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support<br> 1 x USB 3.2 Gen 1 header<br> 4 x USB 2.0/1.1 headers<br> 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)<br> 1 x reset jumper<br> 1 x Clear CMOS jumper<br> <br> Back Panel Connectors<br> 1 x Q-Flash Plus button<br> 2 x SMA antenna connectors (2T2R)<br> 1 x HDMI port (Note)<br> 2 x USB4® USB Type-C® ports (DisplayPort (Note))<br> 1 x USB 3.2 Gen 2 Type-A port (red)<br> 3 x USB 3.2 Gen 1 ports<br> 4 x USB 2.0/1.1 ports<br> 1 x RJ-45 port<br> 3 x audio jacks | |
| Others Information | ||
| Bundled Software | Norton Internet Security (OEM version)<br> LAN bandwidth management software | |
| Special Features | Support for GIGABYTE Control Center (GCC)<br> * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.<br> Support for Q-FlashV Support for Q-Flash Plus<br> Support for Smart Backup | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

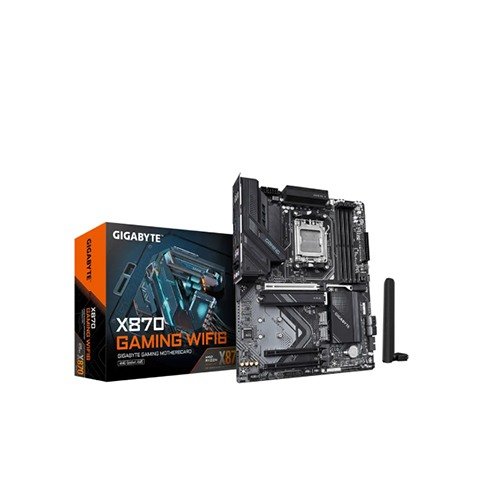

The GIGABYTE X870 GAMING WIFI6 Motherboard is designed for users who demand extreme performance, stability, and future-ready connectivity. Whether you are building a high-end gaming rig, a content creation workstation, or a powerful multitasking system, this motherboard delivers the foundation you need for smooth and reliable computing. It supports advanced hardware configurations that ensure faster processing, reduced latency, and improved system responsiveness in every task. With next-generation chipset architecture, it allows users to fully utilize modern CPUs and high-speed memory modules without bottlenecks. The inclusion of WiFi 6 technology ensures ultra-fast and stable wireless connectivity, making online gaming, streaming, and large file transfers seamless. Gamers will benefit from reduced lag and improved network stability, while professionals can enjoy uninterrupted workflows. Its enhanced thermal design also keeps system temperatures under control, ensuring long-lasting performance even during heavy workloads. This motherboard is built for users who want both power and efficiency in one platform. If you are planning to upgrade your PC or build a new one, this motherboard offers a perfect balance of performance, durability, and future-proof features that make it a smart investment for years to come.
If you are searching for a reliable gaming motherboard category product, Tech Valley is your trusted destination. The GIGABYTE X870 GAMING WIFI6 Motherboard offers exceptional performance for gaming enthusiasts, PC builders, and professionals who need stability and speed in one package. At Tech Valley, you can explore the latest motherboard collection designed for high-performance computing systems. This product ensures compatibility with modern gaming setups while delivering excellent efficiency for long-term use. Choosing Tech Valley means you get authentic products, competitive pricing, and reliable customer support. Whether you are upgrading your gaming PC or building a new workstation, this authentic motherboard category product ensures you get maximum value for your investment. It is an ideal choice for users who want powerful performance without compromise. Make your next upgrade smarter with Tech Valley and experience a new level of computing performance that meets modern demands effortlessly.
The latest price of GIGABYTE X870 GAMING WIFI6 Motherboard in Bangladesh is 33,000৳ You can buy the GIGABYTE X870 GAMING WIFI6 Motherboard at best price from our Website or visit any of our showrooms.
