| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for AMD Ryzen 9000, 8000 & 7000 Series Processors | |
| Chipset | AMD X870 | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel | |
| Type | DDR5 | |
| Memory Specifications | ||
| Maximum Memory | up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Slots | 4 DIMMs | |
| Supported Memory | Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules<br> Dual channel memory architecture<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules<br> <br> (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:<br> AMD Ryzen 900/7000 Series Processors support PCIe 5.0 x16 mode<br> AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode<br> AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode<br> * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.<br> Chipset:<br> - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) | |
| Motherboard | ||
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:<br> AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs<br> AMD Ryzen™ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs<br> AMD Ryzen™ 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs<br> 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs<br> 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs<br> * The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2B_SB connector operates at up to x2 mode when a PCIe SSD is installed in the M2C_SB connector.<br> 4 x SATA 6Gb/s connectors | |
| Graphics | ||
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:<br> - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz<br> * Support for DisplayPort 1.4 version and HDR.V<br> <br> Integrated Graphics Processor with AMD Radeon™ Graphics support:<br> - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> * Support for HDMI 2.1 version, HDCP 2.3, and HDR.<br> ** Support native HDMI 2.1 TMDS compatible ports. | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices<br> * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.<br> RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| USB (s) | CPU+ASMedia USB4® controller:<br> - 2 x USB4® USB Type-C® ports on the back panel<br> CPU:<br> - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel<br> - 1 x USB 3.2 Gen 1 port on the back panel<br> CPU+USB 2.0 Hub:<br> - 4 x USB 2.0/1.1 ports on the back panel<br> Chipset:<br> - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)<br> - 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless Communication module | AMD Wi-Fi 6E RZ616 (MT7922A22M)<br> WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands<br> BLUETOOTH 5.2<br> Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
| Audio | Realtek Audio CODEC<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |

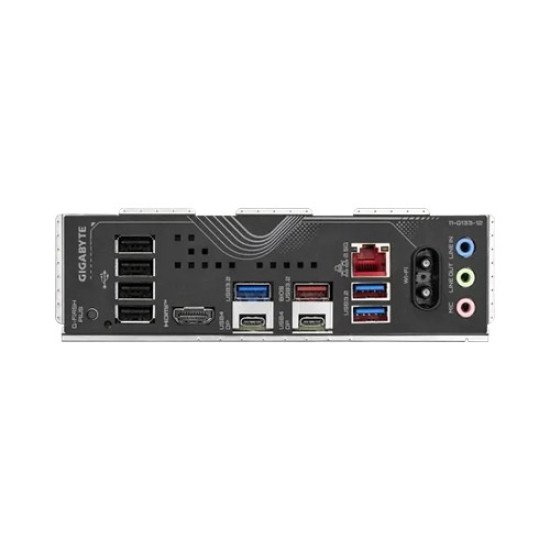

| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x 4-pin ATX 12V power connector<br> 1 x CPU fan header<br> 1 x CPU fan/water cooling pump header<br> 4 x system fan headers<br> 3 x addressable RGB Gen2 LED strip headers<br> 1 x RGB LED strip header<br> 4 x SATA 6Gb/s connectors<br> 3 x M.2 Socket 3 connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support<br> 1 x USB 3.2 Gen 1 header<br> 2 x USB 2.0/1.1 headers<br> 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)<br> 1 x power button<br> 1 x reset button<br> 1 x reset jumper<br> 1 x Clear CMOS jumper<br> <br> Back Panel Connectors<br> 1 x Q-Flash Plus button<br> 2 x antenna connectors (2T2R)<br> 1 x HDMI port*<br> 2 x USB4® USB Type-C® ports (DisplayPort*)<br> 1 x USB 3.2 Gen 2 Type-A port (red)<br> 3 x USB 3.2 Gen 1 ports<br> 4 x USB 2.0/1.1 ports<br> 1 x RJ-45 port<br> 3 x audio jacks | |
| Others Information | ||
| Bundled Software | Norton Internet Security (OEM version)<br> LAN bandwidth management software | |
| Special Features | Support for GIGABYTE Control Center (GCC)<br> * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.<br> Support for Q-Flash<br> Support for Q-Flash Plus<br> Support for Smart Backup | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

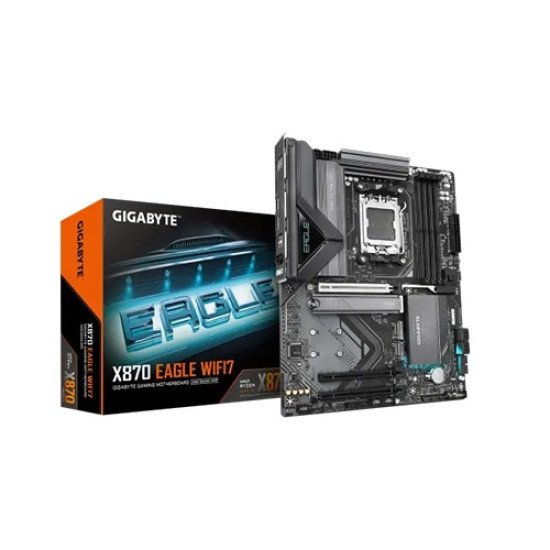

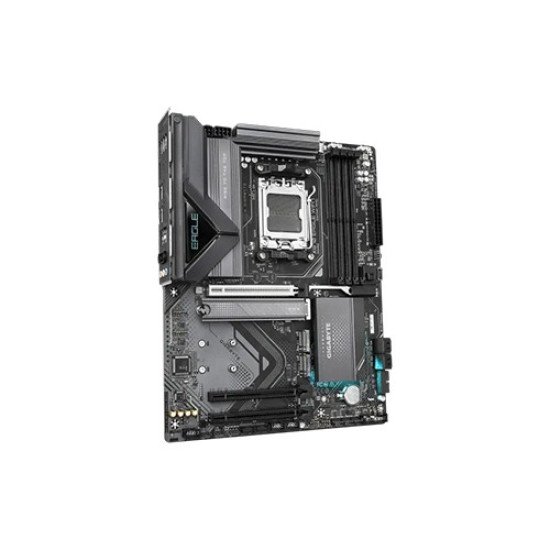

The GIGABYTE X870 EAGLE WIFI7 is a high-performance ATX motherboard designed to harness the full power of AMD’s latest Ryzen processors, supporting the Ryzen 9000, 8000, and 7000 series via the AM5 socket. Built around the robust AMD X870 chipset, this motherboard offers a versatile and future-proof platform, ideal for gaming enthusiasts, content creators, and power users seeking maximum performance and expandability. Memory capabilities are exceptional, with support for up to 256GB of DDR5 RAM across four DIMM slots, including high-speed modules up to DDR5-8000(OC). It fully supports dual-channel architecture, AMD EXPO, and Intel XMP profiles, ensuring stable overclocking potential and optimized system performance. The board’s storage options are equally impressive, featuring three M.2 slots supporting PCIe 5.0/4.0 NVMe SSDs and four SATA 6Gb/s connectors, with RAID 0/1/5/10 support for versatile storage configurations. For graphics and connectivity, the X870 EAGLE WIFI7 integrates AMD Radeon graphics with HDMI 2.1 and USB4 Type-C ports that support DisplayPort 1.4 output and up to 4K resolution at 240Hz, offering smooth visuals for high-end gaming and professional workflows. The PCIe layout includes a PCIe 5.0 x16 slot and additional PCIe 3.0 slots, ensuring flexible expansion for GPUs and other add-on cards. Networking is state-of-the-art, featuring 2.5GbE LAN and Wi-Fi 6E with Bluetooth 5.2, providing fast, reliable wired and wireless connections. Audio is powered by a Realtek High Definition codec supporting up to 7.1-channel sound, perfect for immersive gaming or media experiences. The motherboard also includes multiple internal and external headers for USB, RGB lighting, and cooling solutions, along with advanced features such as Q-Flash Plus, Smart Backup, and GIGABYTE Control Center for system management. With its high-quality components, comprehensive I/O, and a 3-year warranty, the GIGABYTE X870 EAGLE WIFI7 is an excellent choice for building a powerful, future-ready AMD-based system.
The latest price of GIGABYTE X870 EAGLE WIFI7 Motherboard in Bangladesh is 35,000৳ You can buy the GIGABYTE X870 EAGLE WIFI7 Motherboard at best price from our Website or visit any of our showrooms.
