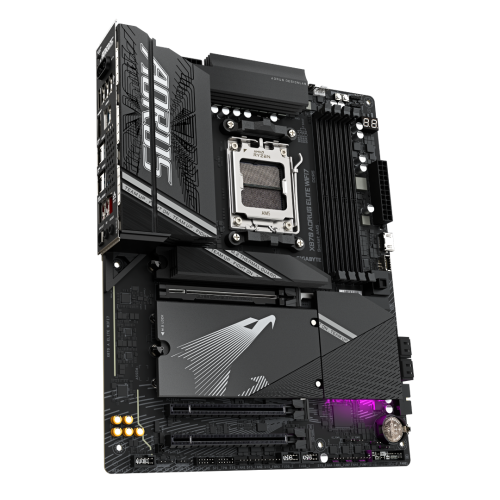

GIGABYTE X870 AORUS ELITE MOTHERBOARD-AMD

GIGABYTE X870 AORUS ELITE MOTHERBOARD-AMD

Regular Price: 0৳
Status: Sold Out
Model: Model: GIGABYTE X870 AORUS ELITE

Key Features

  • Brand: GIGABYTE
View More Info

Payment Options

  • Description
  • Questions (0)
  • Reviews (0)

Description

Product Description

  • CPU
    AMD Socket AM5, support for:
    AMD Ryzen™ 9000 Series Processors/
    AMD Ryzen™ 8000 Series Processors/
    AMD Ryzen™ 7000 Series Processors
    (Go to GIGABYTE’s website for the latest CPU support list.)
  • Chipset
    AMD X870
  • Memory
    Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
    4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)

  • Onboard Graphics
    Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
    – 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@240 Hz
    * Support for DisplayPort 1.4 version and HDR.

    Integrated Graphics Processor with AMD Radeon™ Graphics support:
    – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    ** Support native HDMI 2.1 TMDS compatible ports.

    – 1 x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz
    * Support for HDMI 1.4 version

    (Graphics specifications may vary depending on CPU support.)
    Support for up to quad-display at the same time

  • Audio
    Realtek® ALC1220 CODEC
    * The back panel line out jack supports DSD audio.

    High Definition Audio
    2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

    Support for S/PDIF Out

  • LAN
    Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module
    MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
    – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    – BLUETOOTH 5.4
    – Support for 11be 160MHz wireless standard

    Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
    – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    – BLUETOOTH 5.4
    – Support for 11be 160MHz wireless standard

    (Actual data rate may vary depending on environment and equipment.)

  • Chipset:
    – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
    * The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.

    – 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

  • Storage Interface
    1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
    AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
    AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

    2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
    AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
    * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used.

    1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
    4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
    * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

    RAID 0, RAID 1, and RAID 10 support for SATA storage devices

  • USB
    CPU+ASMedia USB4® controller:
    – 2 x USB4® USB Type-C® ports on the back panel
    CPU+USB 3.2 Gen 1 Hub:
    – 4 x USB 3.2 Gen 1 ports on the back panel
    CPU+USB 2.0 Hub:
    – 4 x USB 2.0/1.1 ports on the back panel
    Chipset:
    – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through
    the internal USB header
    – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    – 2 x USB 3.2 Gen 1 ports available through the internal USB header
    – 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Internal I/O Connectors
    1 x 24-pin ATX main power connector
    2 x 8-pin ATX 12V power connectors
    1 x CPU fan header
    1 x CPU fan/water cooling pump header
    4 x system fan headers
    2 x system fan/water cooling pump headers
    3 x addressable RGB Gen2 LED strip headers
    1 x RGB LED strip header
    4 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x noise detection header
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
    1 x HDMI port (Note)
    1 x power button
    1 x reset button
    2 x temperature sensor headers
    1 x reset jumper
    1 x Clear CMOS jumper
  • Back Panel Connectors
    1 x Q-Flash Plus button
    1 x HDMI port (Note)
    2 x antenna connectors (2T2R)
    2 x USB4® USB Type-C® ports (DisplayPort (Note))
    2 x USB 3.2 Gen 2 Type-A ports (red)
    4 x USB 3.2 Gen 1 ports
    4 x USB 2.0/1.1 ports
    1 x RJ-45 port
    1 x optical S/PDIF Out connector
    2 x audio jacks
  • I/O Controller
    iTE® I/O Controller Chip
  • H/W Monitoring
    Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.

    Noise detection

  • BIOS
    1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

    Support for Q-Flash
    Support for Q-Flash Plus
    Support Smart Backup

  • Bundled Software
    Norton® Internet Security (OEM version)
    LAN bandwidth management software
  • Operating System
    Support for Windows 11 64-bit
  • Form Factor
    ATX Form Factor; 30.5cm x 24.4cm
