| Processor | |
| Supported CPU | AMD Socket AM5, Support For: AMD Ryzen 7000 / Ryzen 8000 Series Processors |
| Mainboard | |
| Chipset | AMD X670 |
| Memory | |
| Memory | Support For DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/S Memory Modules 4 X DDR5 DIMM Sockets Supporting Up To 192 GB (48 GB Single DIMM Capacity) Of System Memory Dual Channel Memory Architecture Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules Support For AMD EXtended Profiles For Overclocking (AMD EXPO) And Extreme Memory Profile (XMP) Memory Modules |
| Graphics | |
| Graphics | Integrated Graphics Processor With AMD Radeon Graphics Support: - 1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz * Support For HDMI 2.1 Version And HDCP 2.3. * Support For Native HDMI 2.1 TMDS Compatible Ports. - 1 X Front HDMI Port, Supporting A Maximum Resolution Of 1920x1080@30 Hz * Support For HDMI 1.4 Version |
| Audio & Microphone | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-Channel |
| Networking & Connectivity | |
| Wireless Connectivity | Communication Module Qualcomm Wi-Fi 7 QCNCM865 (PCB Rev. 1.0) - 802.11a, B, G, N, Ac, Ax, Be, Supporting 2.4/5/6 GHz Carrier Frequency Bands - BLUETOOTH 5.3 - Support For 11be 320MHz Wireless Standard MediaTek Wi-Fi 7 MT7927, RZ738 (PCB Rev. 1.1) - 802.11a, B, G, N, Ac, Ax, Be, Supporting 2.4/5/6 GHz Carrier Frequency Bands - BLUETOOTH 5.3 - Support For 11be 320MHz Wireless Standard (Actual Data Rate May Vary Depending On Environment And Equipment.) |
| LAN | Intel 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Ports | |
| Interface | 1 X M.2 Connector (M2A_CPU), Integrated In The CPU, Supporting Socket 3, M Key, Type 25110/2580 SSDs: - AMD Ryzen 7000 Series Processors Support PCIe 5.0 X4/X2 SSDs - AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 Processors Support PCIe 4.0 X4/X2 SSDs 1 X M.2 Connector (M2B_CPU), Integrated In The CPU, Supporting Socket 3, M Key, Type 22110/2280 SSDs: - AMD Ryzen 7000 Series Processors Support PCIe 5.0 X4/X2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors Support PCIe 4.0 X4/X2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors Support PCIe 4.0 X2 SSDs Chipset: - 2 X M.2 Connectors (Socket 3, M Key, Type 22110/2280 PCIe 4.0 X4/X2 SSD Support)(M2C_SB, M2D_SB) - 4 X SATA 6Gb/S Connectors RAID 0, RAID 1, And RAID 10 Support For NVMe SSD Storage Devices RAID 0, RAID 1, And RAID 10 Support For SATA Storage Devices |
| Internal I/O Ports | 1 X 24-Pin ATX Main Power Connector 2 X 8-Pin ATX 12V Power Connectors 1 X CPU Fan Header 1 X CPU Fan/Water Cooling Pump Header 4 X System Fan Headers 2 X System Fan/Water Cooling Pump Headers 3 X Addressable RGB Gen2 LED Strip Headers 1 X RGB LED Strip Header 4 X SATA 6Gb/S Connectors 4 X M.2 Socket 3 Connectors 2 X Temperature Sensor Headers 1 X Front Panel Header 1 X Front Panel Audio Header 1 X USB Type-C Header, With USB 3.2 Gen 2x2 Support 2 X USB 3.2 Gen 1 Headers 2 X USB 2.0/1.1 Headers 1 X Noise Detection Header 1 X THB_U4 Add-In Card Connector 1 X HDMI Port* * Only Available With The AMD Radeon Graphics Processors. 1 X Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 Module Only) 1 X Power Button 1 X Reset Button 1 X Clear CMOS Button 1 X Reset Jumper 1 X Clear CMOS Jumper |
| External I/O Ports | 1 X Q-Flash Plus Button 2 X SMA Antenna Connectors (2T2R) 1 X HDMI Port 4 X USB 3.2 Gen 1 Ports 4 X USB 2.0/1.1 Ports 3 X USB 3.2 Gen 2 Type-A Ports (Red) 1 X USB Type-C Port, With USB 3.2 Gen 2x2 Support 1 X RJ-45 Port 3 X Audio Jacks |
| USB | CPU: - 1 X USB 3.2 Gen 2 Type-A Port (Red) On The Back Panel - 2 X USB 3.2 Gen 1 Ports On The Back Panel CPU + USB 2.0 Hub: - 4 X USB 2.0/1.1 Ports On The Back Panel Chipset: - 2 X USB Type-C Ports, With USB 3.2 Gen 2x2 Support (1 Port On The Back Panel, 1 Port Available Through The Internal USB Header) - 2 X USB 3.2 Gen 2 Type-A Ports (Red) On The Back Panel - 6 X USB 3.2 Gen 1 Ports (2 Ports On The Back Panel, 4 Ports Available Through The Internal USB Headers) - 4 X USB 2.0/1.1 Ports Available Through The Internal USB Headers |
| Technical Info | |
| Controller | ITE I/O Controller Chip |
| BIOS | 1 X 256 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Operating System | Support For Windows 11 64-Bit |
| Special Features | |
| Features | Support For GIGABYTE Control Center (GCC) Support For Q-Flash Support For Q-Flash Plus Support For Smart Backup |
| Physical Specification | |
| Expansion Slots | 1 X PCI Express X16 Slot (PCIEX16), Integrated In The CPU: - AMD Ryzen 7000 Series Processors Support PCIe 5.0 X16 Mode - AMD Ryzen 8000 Series-Phoenix 1 Processors Support PCIe 4.0 X8 Mode - AMD Ryzen 8000 Series-Phoenix 2 Processors Support PCIe 4.0 X4 Mode * The PCIEX16 Slot Can Only Support A Graphics Card Or An NVMe SSD. If Only One Graphics Card Is To Be Installed, Be Sure To Install It In The PCIEX16 Slot. Chipset: - 1 X PCI Express X16 Slot, Supporting PCIe 3.0 And Running At X4 (PCIEX4) - 1 X PCI Express X16 Slot, Supporting PCIe 3.0 And Running At X2 (PCIEX2) |
| Form Factor | ATX Form Factor; 30.5cm X 24.4cm |
| Others | |
| Bundled Software | Norton Internet Security (OEM Version) LAN Bandwidth Management Software |
| Other Features | H/W Monitoring Voltage Detection Temperature Detection Fan Speed Detection Water Cooling Flow Rate Detection Fan Fail Warning Fan Speed Control Noise Detection |

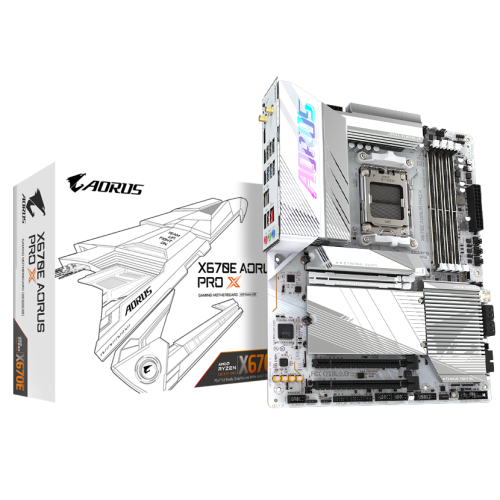

The latest price of Gigabyte X670E AORUS PRO X DDR5 ATX AMD Gaming Motherboard in Bangladesh is 53,000৳ You can buy the Gigabyte X670E AORUS PRO X DDR5 ATX AMD Gaming Motherboard at best price from our Website or visit any of our showrooms.
