| Basic Information | ||
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen 5000 Series Processors/ AMD Ryzen 5000 G-Series <br>Processors/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 Series Processors/ AMD <br>Ryzen 3000 G-Series Processors/ AMD Ryzen 2000 Series Processors/ AMD Ryzen 2000 G-Series Processors | |
| Chipset | AMD X570 | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek ALC1220-VB Audio CODEC<br> The back panel line out jack supports DSD audio.<br> Support for DTS:X Ultra<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> Support for S/PDIF Out | |
| Memory Specifications | ||
| Type | Dual channel memory architecture | |
| Slots | 4 x DDR4 DIMM sockets | |
| Supported Memory | Support for DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / <br>4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) /<br> 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules<br> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules<br> ECC memory (ECC mode) support varies by CPU<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules<br> Support for Extreme Memory Profile (XMP) memory modules<br> (Please refer "Memory Support List" for more information.) | |
| Max. Memory | up to 128 GB (32 GB single DIMM capacity) of system memory | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:<br> AMD Ryzen 5000 Series/3000 Series Processors<br> support PCIe 4.0 x16 mode<br> AMD Ryzen 5000 G-Series/4000 G-Series/2000 Series Processors<br> support PCIe 3.0 x16 mode<br> AMD Ryzen 3000 G-Series/2000 G-Series Processors<br> support PCIe 3.0 x8 mode<br> 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:<br> AMD Ryzen 5000 Series/3000 Series Processors<br> support PCIe 4.0 x8 mode<br> AMD Ryzen 5000 G-Series/4000 G-Series/2000 Series Processors<br> support PCIe 3.0 x8 mode<br> AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 G-Series Processors do not <br>support this slot.<br> For optimum performance, if only one PCI Express graphics card is to be installed, be sure to <br>install it in the PCIEX16 slot.<br> The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated,<br> the PCIEX16 slot operates at up to x8 mode.<br> 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:<br> Supporting PCIe 4.0/3.0 x4 mode<br> - For AMD Ryzen 5000 Series/3000 Series Processors only. | |
| Graphics | ||
| Max Shared Memory | Maximum shared memory of 16 GB | |
| Graphics | Onboard Graphics<br> Integrated Graphics Processor:<br> 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz<br> Support for HDMI 2.1 version, HDCP 2.3, and HDR.<br> Support forAMDQuad-GPU CrossFire and 2-WayAMD CrossFire technologies<br> Multi-Graphics Technology<br> Support forAMDQuad-GPU CrossFire and 2-WayAMD CrossFire technologies<br> For AMD Ryzen 5000 Series/5000 G-Series/4000 G-Series/3000 Series/2000 Series Processors only. | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| USB (s) | CPU:<br> 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel<br> 3 x USB 3.2 Gen 1 ports on the back panel<br> Chipset+ASMedia USB 3.2 Gen 2x2 Controller:<br> 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support<br> Chipset:<br> 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header<br> 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel<br> 4 x USB 3.2 Gen 1 ports available through the internal USB headers<br> Chipset+2 USB 2.0 Hubs:<br> 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) | |
| LAN Port (s) | Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs: AMD Ryzen 5000-Series/3000 Series Processors<br> support SATA and PCIe 4.0 x4/x2 SSDs<br> AMD Ryzen 5000 G-Series/4000 G-Series/3000 G-Series/2000 Series/ 2000 G-Series <br>Processors<br> support SATA and PCIe 3.0 x4/x2 SSDs<br> 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type <br>2242/2280/22110 SSDs:<br> Supporting PCIe 4.0*/3.0 x4/x2 SSDs<br> - For AMD Ryzen 5000 Series/3000 Series Processors only.<br> 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type <br>2242/2280/22110 SSDs:<br> Supporting SATA and PCIe 4.0/3.0 x4/x2 SSDs<br> - For AMD Ryzen 5000 Series/3000 Series Processors only.<br> 6 x SATA 6Gb/s connectors, integrated in the Chipset:<br> Support for RAID 0, RAID 1, and RAID 10<br> - Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors. | |
| Audio | Realtek ALC1220-VB Audio CODEC<br> The back panel line out jack supports DSD audio.<br> Support for DTS:X Ultra<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> Support for S/PDIF Out | |
| Internal I/O Ports | Internal I/O Connectors:<br> 1 x 24-pin ATX main power connector<br> 1 x 8-pin ATX 12V power connector<br> 1 x 4-pin ATX 12V power connector<br> 1 x CPU fan header<br> 1 x water cooling CPU fan header<br> 4 x system fan headers<br> 2 x system fan/water cooling pump headers<br> 2 x addressable LED strip headers<br> 2 x RGB LED strip headers<br> 1 x CPU cooler LED strip/RGB LED strip header<br> 3 x M.2 Socket 3 connectors<br> 6 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB Type-C header, with USB 3.2 Gen 2 support<br> 2 x USB 3.2 Gen 1 headers<br> 2 x USB 2.0/1.1 headers<br> 1 x Thunderbolt add-in card connector<br> 1 x Clear CMOS jumper<br> 2 x temperature sensor headers<br> Back Panel Connectors:<br> 4 x USB 2.0/1.1 ports<br> 2 x SMA antenna connectors (2T2R)<br> 1 x USB Type-C port, with USB 3.2 Gen 2x2 support<br> 4 x USB 3.2 Gen 2 Type-A ports (red)<br> 3 x USB 3.2 Gen 1 ports<br> 1 x RJ-45 port<br> 1 x optical S/PDIF Out connector<br> 5 x audio jacks<br> I/O Controller:<br> iTE I/O Controller Chip | |
| Others Information | ||
| Special Features | Support for APP Center<br> Available applications in APP Center may vary by motherboard model. Supported functions of <br>each applicationmay also vary depending onmotherboard specifications.<br> @BIOS<br> EasyTune<br> Fast Boot<br> Game Boost<br> ON/OFF Charge<br> RGB Fusion<br> Smart Backup<br> System Information Viewer<br> Support for Q-Flash Plus<br> Support for Q-Flash<br> Support for Xpress Install<br> Operating System: Support for Windows 10 64-bit | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years | |

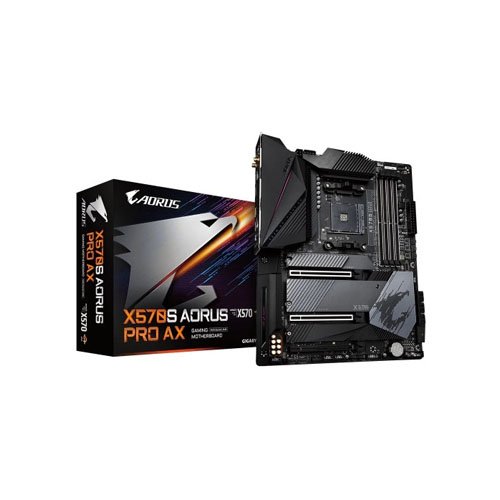

Gigabyte X570S AORUS PRO AX Gaming Motherboard Supports with AMD Ryzen 5000 Series/ Ryzen 5000 G Series/ Ryzen 4000 G Series/ Ryzen 3000 Series/ Ryzen 3000 G Series/ Ryzen 2000 Series/ Ryzen 2000 G Series Processors and Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs. With the full potential of the latest AMD Ryzen 5000 series processors, the motherboard requires the best CPU power, memory, and IO design, this motherboard is a true beast among motherboards. Gigabyte X570S AORUS PRO AX motherboards feature upgraded power solution, passive and silent thermal design, and PCIe 4.0 components that help to keep your gaming system up to fast and powerful, even under heavy workloads. This motherboard featured with Active OC Tuner features Dynamic Change Between P.B.O. and Manual OC Settings, Twin 12+2 Phases Digital VRM Solution with 60A DrMOS, Advanced Thermal Solution with Fins-Array II, Direct Touch Heatpipe II and M.2 Thermal Guard III, Intel WiFi 6 802.11ax & BT 5.2, Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards, Blazing Fast Intel 2.5GbE LAN with cFosSpeed and SuperSpeed USB 3.2 Gen2x2 TYPE-C delivers up to 20Gb/s transfer speeds. The Gigabyte X570S AORUS PRO AX motherboard has AMP-UP Audio with ALC1220-VB and WIMA Audio Capacitors, Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips and Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card.
See More Motherboard
The latest price of Gigabyte X570S AORUS PRO AX AMD ATX Gaming Motherboard in Bangladesh is 30,200৳ You can buy the Gigabyte X570S AORUS PRO AX AMD ATX Gaming Motherboard at best price from our Website or visit any of our showrooms.
