| Basic Information | ||
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen 5000 Series Processors/ <br>Ryzen 5000 G-Series/ AMD Ryzen 4000 G-Series Processors/<br> AMD Ryzen 3000 Series Processors/ AMD Ryzen <br>3000 G-Series Processors/ AMD Ryzen 2000 Series <br>Processors/ AMD Ryzen 2000 G-Series Processors | |
| Chipset | AMD X570 | |
| BIOS | 1 x 256 Mbit flash<br> Use of licensed AMI UEFI BIOS<br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek ALC1220-VB audio CODEC<br> * The front panel line out jack supports DSD audio.<br> ESS SABRE9118 DAC chip<br> Support for DTS:X Ultra<br> High Definition Audio<br> 2/4/5.1/7.1-channel<br> Support for S/PDIF Out | |
| Memory Specifications | ||
| Type | Dual channel memory architecture | |
| Slots | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM <br>capacity) of system memory | |
| Supported Memory | AMD Ryzen 5000 Series processors:<br> Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ <br>4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / <br>3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / <br>2400 / 2133 MHz memory modules<br> AMD Ryzen 4000 G-Series processors:<br> Support for DDR4 5400(O.C.)/ 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / <br>4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / <br>4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) /<br> 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / <br>2933 / 2667 / 2400 / 2133 MHz memory modules<br> AMD Ryzen 3000 Series processors:<br> Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ <br>4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) /<br> 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.)<br> / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / <br>2400 / 2133 MHz memory modules<br> AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 Series <br>Processors/<br> AMD Ryzen 2000 G-Series Processors:<br> Support for DDR4 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) <br>/ 3300(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz <br>memory moduleses<br> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules<br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 <br>memory modules<br> Support for Extreme Memory Profile (XMP) memory modules | |
| Max. Memory | 128 GB | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:<br> AMDRyzen 5000 Series Processors/AMDRyzen 3000 Series <br>Processors support PCIe 4.0 x16 mode<br> AMDRyzen 4000G-SeriesProcessors/AMDRyzen 2000 Series <br>Processors support PCIe 3.0 x16 mode<br> AMDRyzen 3000G-SeriesProcessors/AMDRyzen 2000 G-Series <br>Processors support PCIe 3.0 x8 mode<br> 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:<br> AMDRyzen 5000 Series Processors/AMDRyzen 3000 Series <br>Processors support PCIe 4.0 x8 mode<br> AMDRyzen 4000G-SeriesProcessors/AMDRyzen 2000 Series <br>Processors support PCIe 3.0 x8 mode<br> AMDRyzen 3000G-SeriesProcessors/AMDRyzen 2000 G-Series<br> Processors do not support this slot<br> * For optimum performance, if only one PCI Express graphics card<br> is to be installed, be sure to install it in the PCIEX16 slot.<br> * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When <br>the PCIEX8 slot is populated, the PCIEX16 slot operates at up <br>to x8 mode.<br> 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:<br> Supporting PCIe 4.0* /3.0 x4 mode<br> * For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series <br>Processors only.<br> * The PCIEX4 slot shares bandwidth with the M2C_SB connector. <br>The PCIEX4 slot becomes unavailable when a device is <br>installed in the M2C_SB connector. | |
| M.2 Socket | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting <br>Socket 3, M key, type 2242/2280/22110 SSDs<br> 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting <br>Socket 3, M key, type 2242/2280/22110 SSDs<br> 2 x M.2 connectors (M2C_SB/M2D_SB), integrated in the Chipset, <br>supporting Socket 3, M key, type 2242/2280/22110 SSDs | |
| Graphics | ||
| Graphics | Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire <br>technologies<br> For AMD Ryzen 5000 Series Processors/AMD Ryzen 4000 G-Series <br>Processors/AMD Ryzen 3000 Series Processors/AMD Ryzen 2000 <br>Series Processors only. | |
| Connector & Ports | ||
| USB (s) | CPU:<br> 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel<br> 2 x USB 3.2 Gen 1 ports on the back panel<br> Chipset+ASMedia USB 3.2 Gen 2x2 Controller:<br> 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 <br>support<br> Chipset:<br> 1 x USB Type-C port with USB 3.2 Gen 2 support, available through <br>the internal USB header<br> 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel<br> 4 x USB 3.2 Gen 1 ports, available through the internal USB <br>headers<br> Chipset+2 USB 2.0 Hubs:<br> 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available <br>through the internal USB headers) | |
| LAN Port (s) | Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting <br>Socket 3, M key, type 2242/2280/22110 SSDs:<br> AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series <br>Processors support SATA and PCIe 4.0 x4/x2 SSDs<br> AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 G-Series <br>Processors/AMDRyzen 2000SeriesProcessors/AMDRyzen <br>2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 <br>SSDs<br> 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting <br>Socket 3, M key, type 2242/2280/22110 SSDs:<br> Supporting PCIe 4.0* /3.0 x4/x2 SSDs<br> * For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series <br>Processors only.<br> 2 x M.2 connectors (M2C_SB/M2D_SB), integrated in the Chipset, <br>supporting Socket 3, M key, type 2242/2280/22110 SSDs:<br> Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs<br> * For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series <br>Processors only.<br> 6 x SATA 6Gb/s connectors, integrated in the Chipset:<br> Support for RAID 0, RAID 1, and RAID 10<br> * Refer to "1-9 Internal Connectors," for the installation notices for <br>the M.2 and SATA connectors. | |
| Audio | Internal: 1 x front panel audio header<br> Back Panel: 5 x audio jacks | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector<br> 2 x 8-pin ATX 12V power connectors<br> 1 x CPU fan header<br> 1 x water cooling CPU fan header<br> 4 x system fan headers<br> 4 x system fan/water cooling pump headers<br> 2 x addressable LED strip headers<br> 2 x RGB LED strip headers<br> 1 x CPU cooler LED strip/RGB LED strip header<br> 4 x M.2 Socket 3 connectors<br> 6 x SATA 6Gb/s connectors<br> 1 x front panel header<br> 1 x front panel audio header<br> 1 x USB Type-C header, with USB 3.2 Gen 2 support<br> 2 x USB 3.2 Gen 1 headers<br> 2 x USB 2.0/1.1 headers<br> 1 x noise detection header<br> 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-<br>TPM2.0_S module only)<br> 1 x Thunderbolt add-in card connector<br> 2 x temperature sensor headers<br> 1 x power button<br> 1 x reset button<br> 1 x Clear CMOS jumper<br> Voltage Measurement Points | |
| Others Information | ||
| Special Features | Support for APP Center<br> * Available applications in APP Center may vary by motherboard <br>model. Supported functions of each applicationmay also vary <br>depending onmotherboard specifications.<br> @BIOS<br> EasyTune<br> Fast Boot<br> Game Boost<br> ON/OFF Charge<br> RGB Fusion<br> Smart Backup<br> System Information Viewer<br> Support for Q-Flash Plus<br> Support for Q-Flash<br> Support for Xpress Install | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years | |
GIGABYTE X570S motherboards feature upgraded power solution, passive and silent thermal design, and PCIe 4.0 components to keep your gaming system up to fast and powerful, even under heavy workloads.
GIGABYTE X570S Motherboards are equipped with best in class power solution to release the full potential of the latest AMD Ryzen™ 5000 Series CPUs. The VRM power design includes MOSFETs which Vcore and SOC accompanied by digital PWM, premium chokes and high quality capacitors to offer extraordinary stability and precision to the high performance CPU. In addition, Six-layered PCB and comprehensive thermal solution allows enthusiasts to enjoy the extreme overclocking performance without compromise.
With GIGABYTE's exclusive Active OC Tuner BIOS function, CPU* can work with AMD P.B.O. for gaming and other light workload applications with the highest CPU boost clock, but when the applications require all CPU cores horsepower, it automatically switches to the Manual OC mode where it can utilize the high frequency for all the CPU cores.
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.
Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

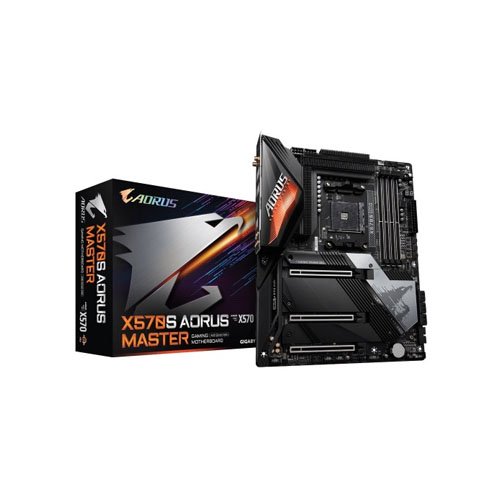

The latest price of Gigabyte X570S AORUS MASTER AMD ATX Motherboard in Bangladesh is 46,100৳ You can buy the Gigabyte X570S AORUS MASTER AMD ATX Motherboard at best price from our Website or visit any of our showrooms.
